EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
When indicating parts by reference number,
please include the board name.
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
! sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.

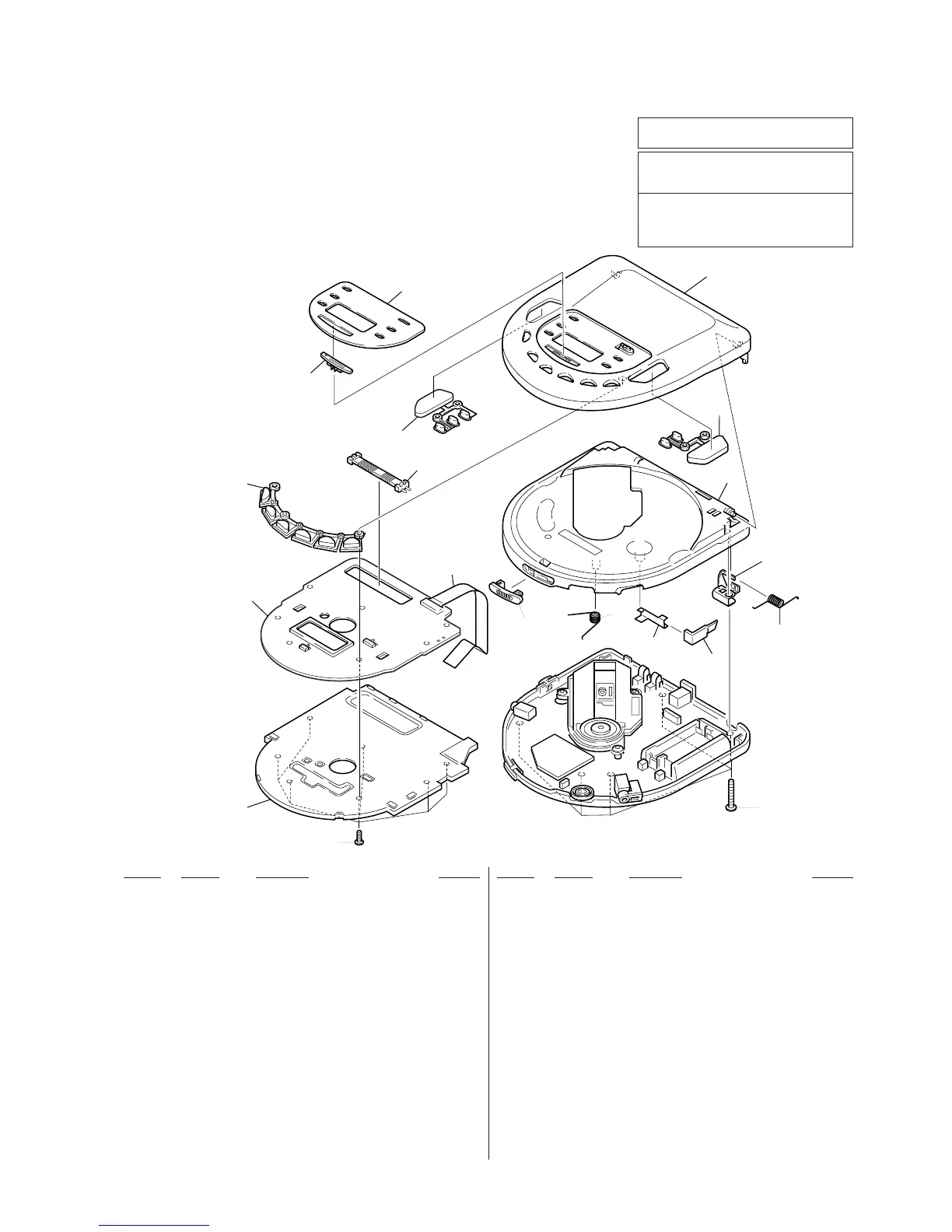

CABINET SECTION-1
— 3 —
1 4-991-484-01 SCREW (1.7)
2 4-989-979-01 COVER, LID
3 A-3293-386-A TUNER BOARD, COMPLETE
(AEP, IT, UK, EA, FR)
3 A-3293-385-A TUNER BOARD, COMPLETE
(E13, E33, E92, CN, AUS, US, CND, HK)
3 A-3293-384-A TUNER BOARD, COMPLETE (JEW)
4 1-665-407-11 PC BOARD, FLEXIBLE
5 4-989-976-11 BUTTON (R) (T101)
5 4-989-976-01 BUTTON (R) (T401, T405)
6 4-989-975-11 BUTTON (FF) (T101)
6 4-989-975-01 BUTTON (FF) (T401, T405)
7 4-989-977-01 KNOB (CR) (T401, T405)
7 4-989-977-11 KNOB (CR) (T101)
8 X-4949-010-1 WINDOW (LCD) ASSY (T405)
8 X-4949-012-1 WINDOW (LCD) ASSY (T401)
8 X-4949-013-1 WINDOW (LCD) ASSY (T101)
9 A-3311-573-A LID SUB ASSY, UPPER (T401)
9 A-3311-564-A LID SUB ASSY, UPPER (T101)
9 A-3311-558-A LID SUB ASSY, UPPER (T405)
10 4-989-974-01 BUTTON (PLAY) (T401, T405)
10 4-989-974-11 BUTTON (PLAY) (T101)
11 4-984-737-11 CABINET (UPPER) (T101, T401)
11 4-984-737-01 CABINET (UPPER) (T405)
12 4-984-848-01 BRACKET (SPRING)
13 4-989-980-01 SPRING, TORSION
14 4-965-547-01 SEPARATOR
15 4-965-548-01 SPRING (D)
16 4-984-847-01 SPRING, TORSION
17 4-984-748-01 KNOB (OPEN)
18 3-336-395-01 SCREW (B2X10) (G), TAPPING
L7 1-416-164-11 COIL, FERRITE-ROD ANTENNA
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
• Abbreviation
E13 : 220-230V (No charger switch) area
E33 : 100-240V (Without VS) area
E92 : 120V area
AUS : Australian CND : Canadian
CN : Chinese EA : Saudi Arabia
FR : French HK : Hong Kong
IT : Itarian JEW : Tourist
8
9
10
11
12
13
18
14
15
16
17
7
6
5
4
L7
3
2
1
