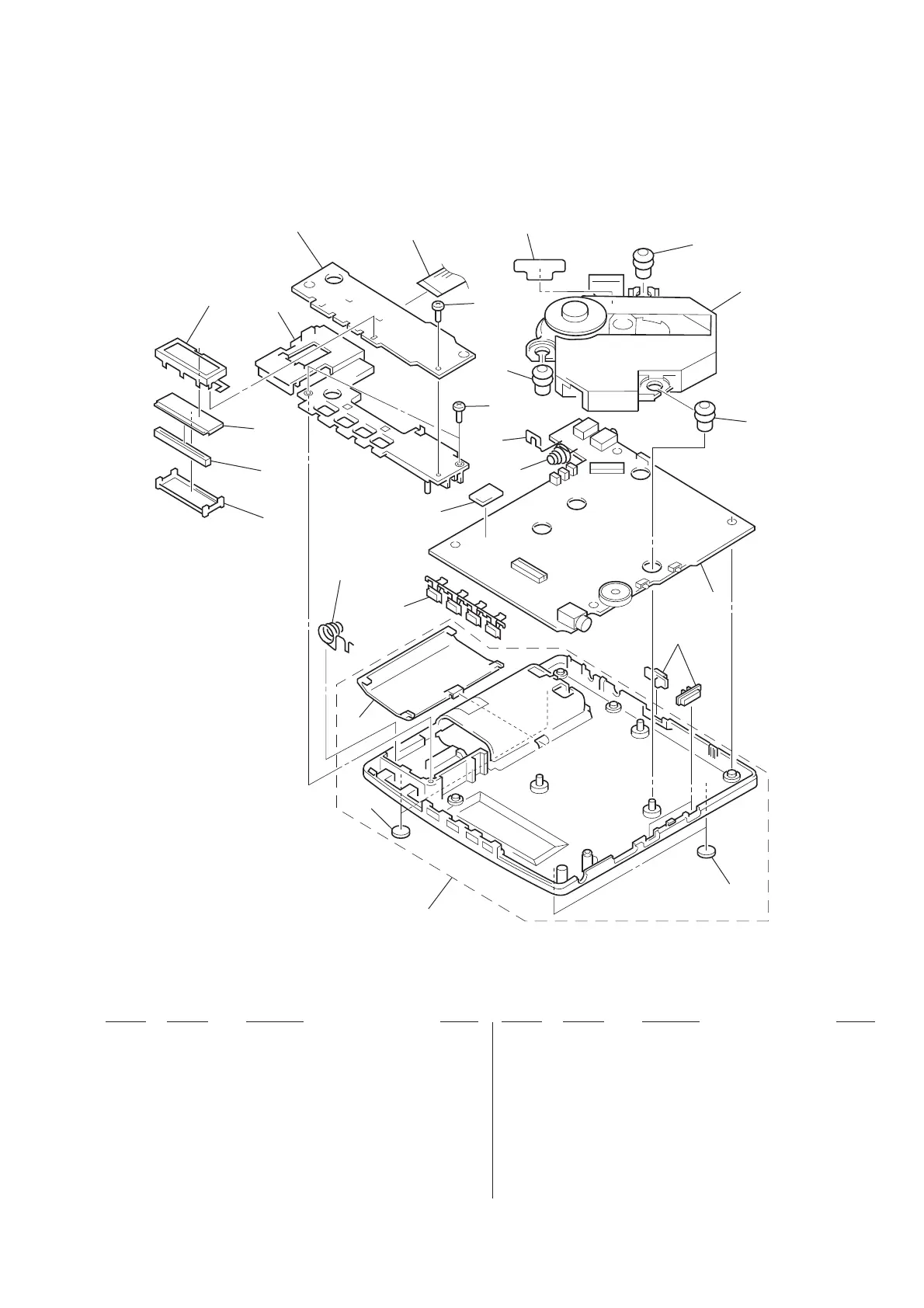

Sony D-V8000 - Page 47

– 63 –
60
61
62
62
63
64
64
KSM-331CAN(S)
LCD401
64
65
66
69
67
68
52
52
53
54
55
56
57
58
59
51
51 X-4949-051-1 CABINET (LOWER) ASSY
52 4-962-025-21 FOOT, RUBBER
53 4-996-333-01 LID, BATTERY CASE
54 4-996-334-01 BUTTON, FRONT
55 4-996-339-01 TERMINAL (RELAY), BATTERY
56 1-475-520-11 LIGHT UNIT, BACK
57 1-694-374-11 CONDUCTIVE BOARD, CONNECTION
58 4-996-338-01 HOLDER, LCD
59 4-996-337-01 BASE, BUTTON
60 A-3321-005-A LCD BOARD, COMPLETE
61 1-776-149-11 FLEXIBLE FLAT CABLE
62 4-982-491-01 SCREW (2X8), TAPPING
63 4-956-818-01 RETAINER, FLEXIBLE
64 4-975-811-01 INSULATOR
65 4-996-335-01 TERMINAL (+), BATTERY
66 4-996-336-01 TERMINAL (–), BATTERY
67 A-3293-778-A MAIN BOARD, COMPLETE
68 4-975-765-01 KNOB (DBB/ESP)
* 69 1-669-608-11 SUB BOARD
LCD401 1-801-975-11 DISPLAY PANEL, LIQUID CRYSTAL
