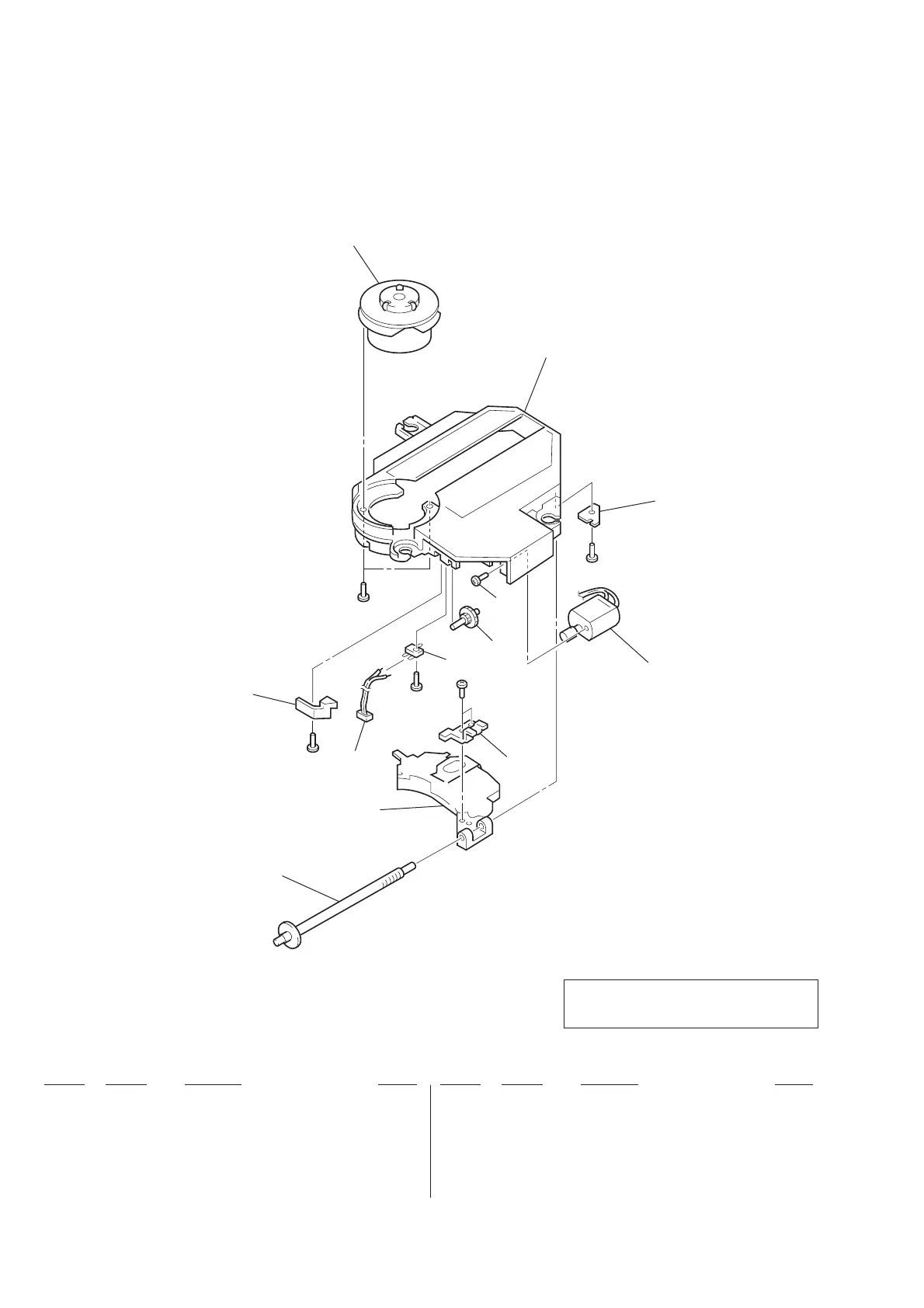

(3) OPTICAL PICK-UP SECTION
(KSM-331CAN (S))
101
102
103
104
107
108
109
106
105
M902
S910
M901
#4
#3
#1
#1
#2
101 X-2625-483-1 SCREW ASSY, SLED
! 102 8-848-295-51 OPTICAL PICK-UP KSS-331C
103 1-948-418-21 HARNESS
104 2-625-412-02 SPRING, SLED
105 2-625-415-05 CHASSIS, MD
106 2-625-411-01 RETAINER, SHAFT
107 3-732-988-01 SCREW (M2X2.5)
108 2-625-410-01 GEAR (B)
109 2-625-414-02 RACK
M901 X-2625-485-1 MOTOR ASSY (MS), T.T. (SPINDLE)
M902 X-2625-171-2 MOTOR ASSY, SLED
S910 1-570-771-11 SWITCH (LIMIT)
