For more information, refer to the pages indicated in parentheses.

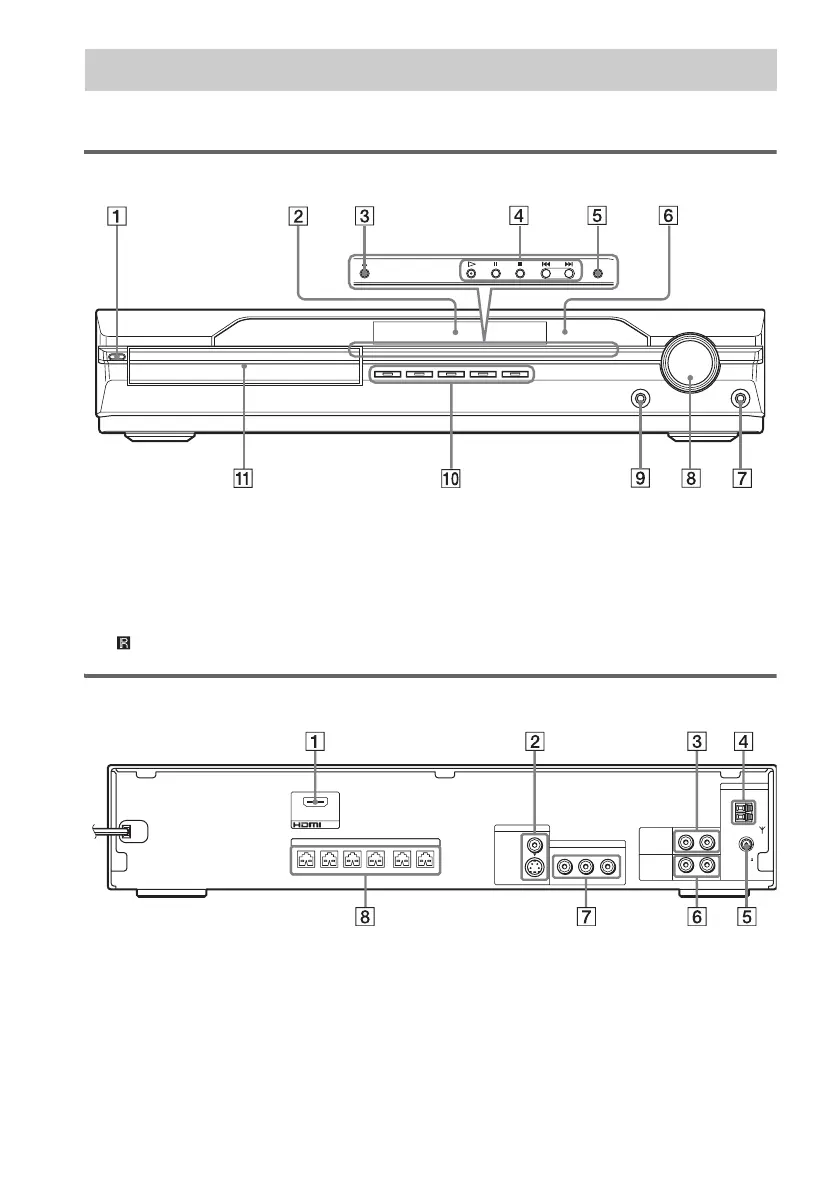

Front panel
A "/1 (on/standby) (30)
B Front panel display (93)
C A (open/close) (30)
D Disc operation (30)
E FUNCTION (30)
F (remote sensor) (9)
G PHONES jack (30)
H VOLUME control (30)
I AUDIO IN/A.CAL MIC jack (19, 32)
J DISC 1-5 (30)
K Disc tray (30)
Rear panel
A HDMI OUT jack (24)
B MONITOR OUT (S VIDEO/VIDEO) jacks
(24)
C TV (AUDIO IN R/L) jacks (28)
D AM terminal (13)
E COAXIAL FM 75Ω jack (13)
F VCR (AUDIO IN R/L) jacks (28)
G COMPONENT VIDEO OUT jacks (24)
H SPEAKER jacks (13)
