Sony DAV-DZ110 - Index to Parts and Controls

Additional Information
89
GB
For more information, refer to the pages indicated in parentheses.

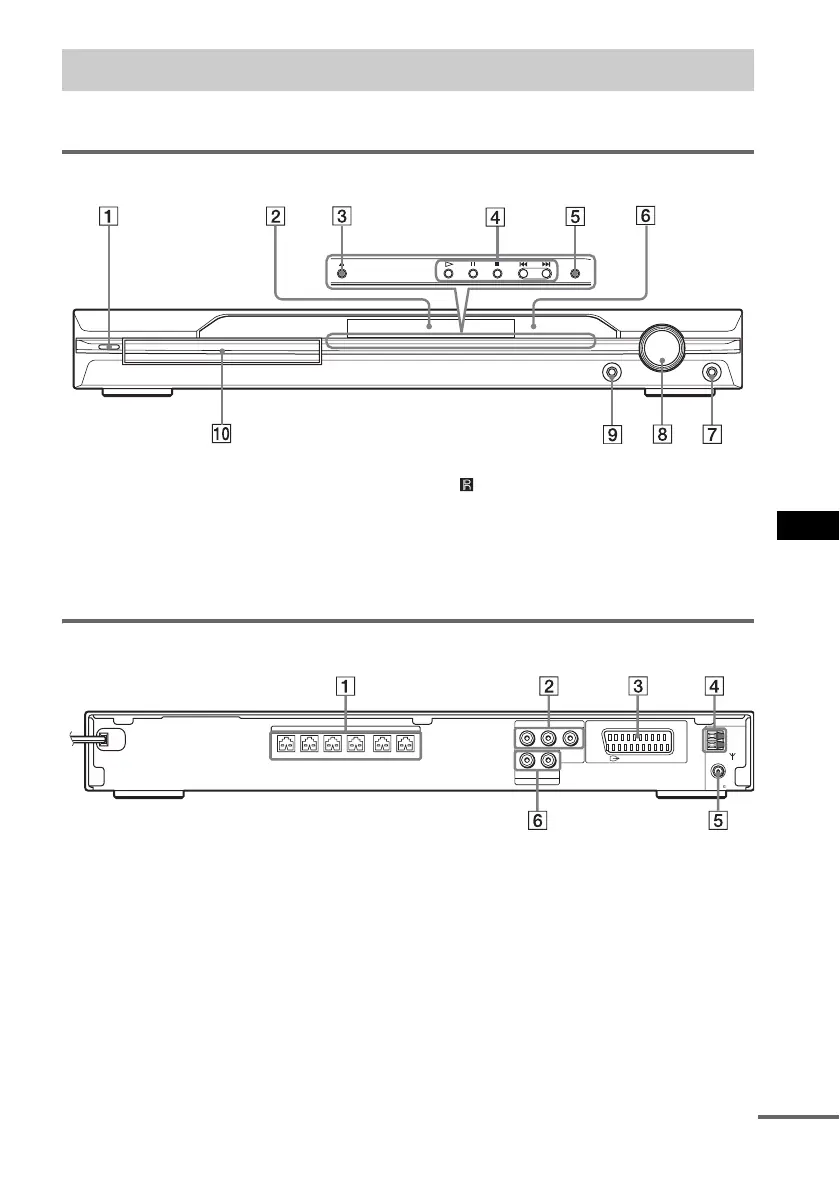

Front panel
A "/1 (on/standby) (29)
B Front panel display (90)
C A (open/close) (29)
D Disc operation (29)
E FUNCTION (29)
F (remote sensor) (8)
G PHONES jack (29)
H VOLUME control (29)
I AUDIO IN/A.CAL MIC jack (19, 30)
J Disc tray (29)
Rear panel
A SPEAKER jacks (12)
B COMPONENT VIDEO OUT jacks (24)
C EURO AV T OUTPUT (TO TV) jack (12,
24)
D AM terminal (12)
E COAXIAL FM 75Ω jack (12)
F LINE (AUDIO IN R/L) jacks (27)
Index to Parts and Controls
COAXIAL
AM
FM 75
SPEAKER
EURO AV
FRONT R FRONT L SUR R SUR LCENTER WOOFER
OUTPUT(TO TV)
COMPONENT VIDEO OUT
YP B /C B P R /C R
(DVD ONLY)
RLAUDIO IN
LINE
continued
