To install the front and surround speakers on a wall using the wall
mounting parts
(DAV-DZ510 only)

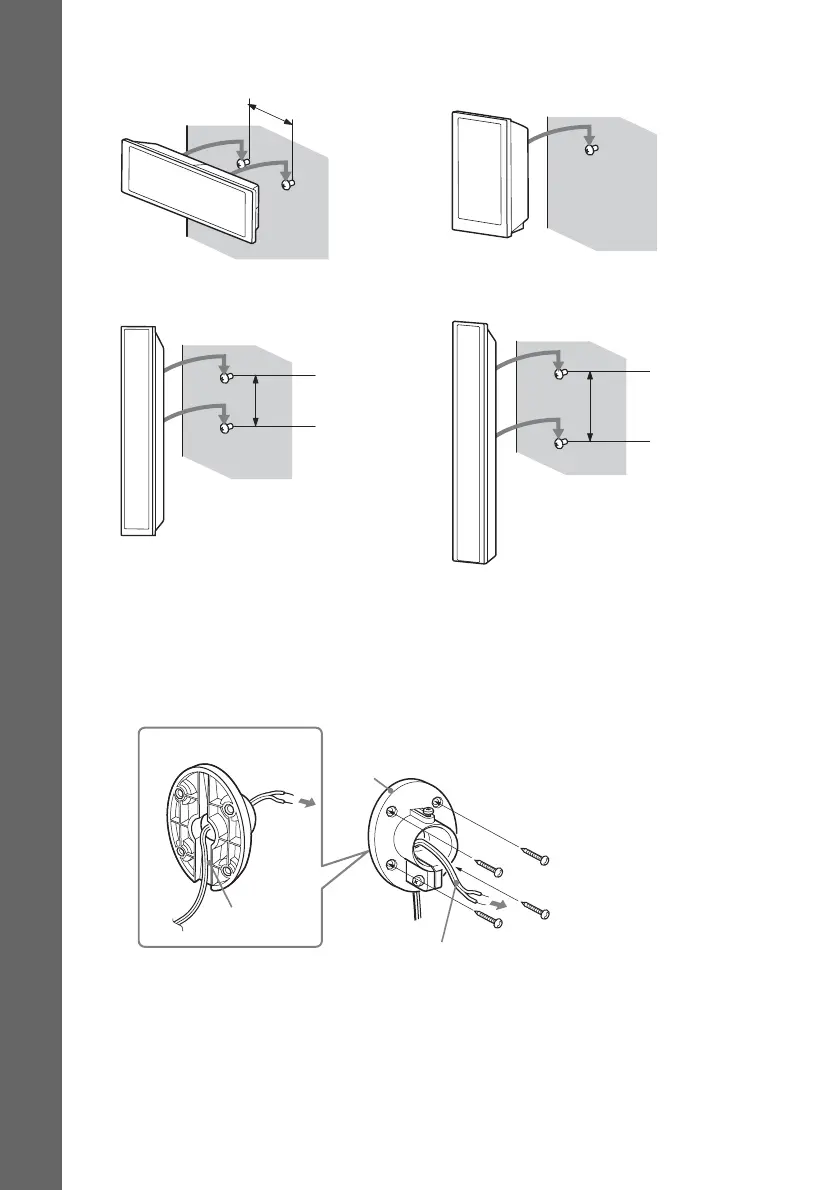

1 Pass the speaker cord through the mounting plate, then attach the mounting plate to the
wall using commercially available screws.
Use the speaker cords as follows:
• Front left speaker (L): White
• Front right speaker (R): Red
• Surround left speaker (L): Blue
• Surround right speaker (R): Gray
145 mm
(5
3
/
4
inches)
For the center speaker
101.6 mm
(4
inches
)
For the tall round pole-type speakers
(DAV-DZ610/DAV-DZ810 only)
For the small speakers (DAV-DZ310/ DAV-
DZ510/DAV-DZ610 only)
210 mm
(8
3
/
8
inches
)
For the tall square-type speakers (DAV-
DZ810 only)
Mounting plate
Speaker cord
Speaker cord
slit
Rear of the mounting
plate
Screws (not supplied)
