Sony DAV-FX100W - Front Panel Assy; I;O Board, DC Fan

10
HCD-FX100W

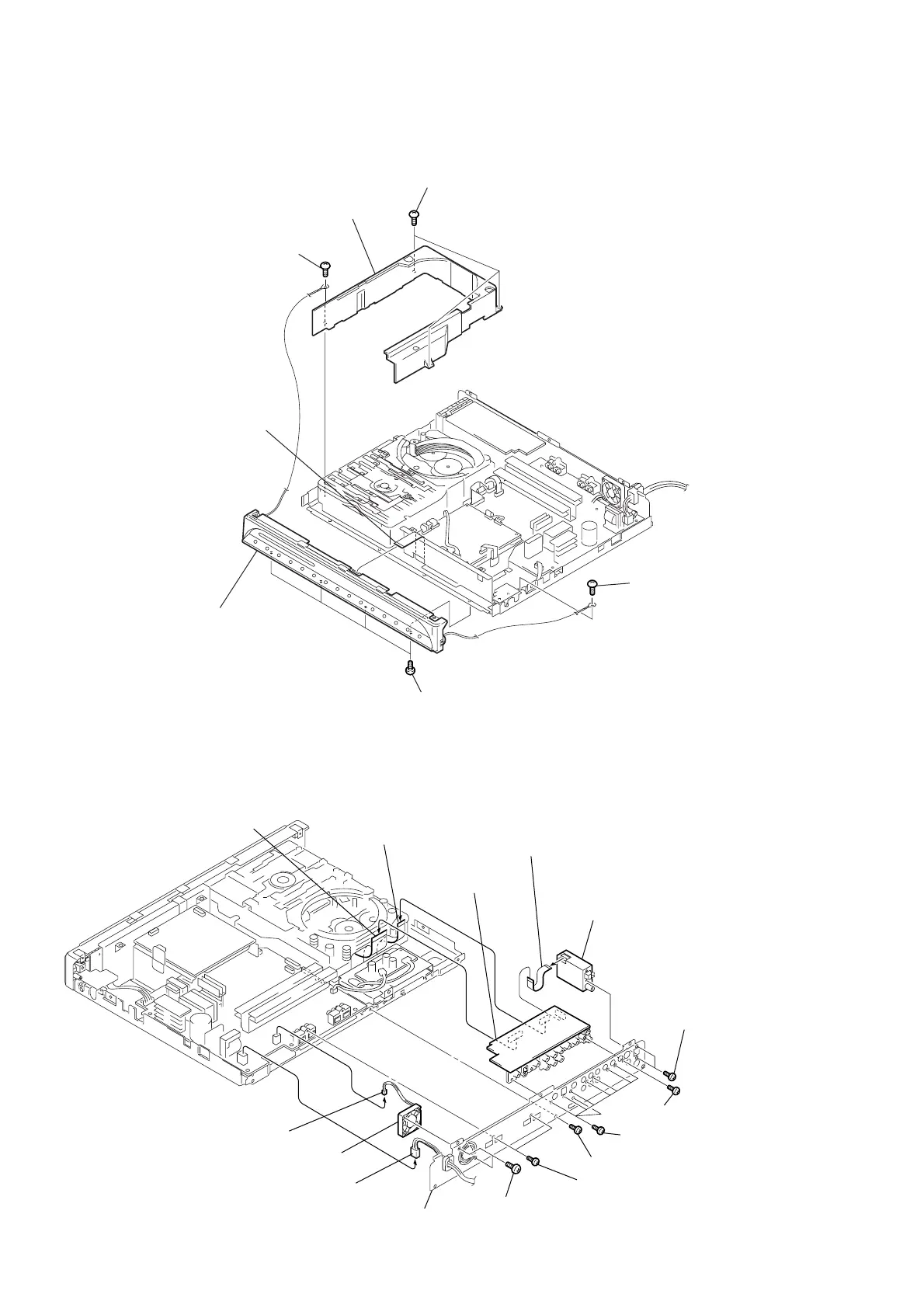

3-4. I/O BOARD, DC FAN
3-3. FRONT PANEL ASSY
7 front panel assy
3 MD cover
6 four screws
(+BVTP 3
× 8)
2 three screws
(+BVTP 3
× 8)
4 wire (flat type)
19p(CN801)
5 screw
(+BVTP 3
× 8
)
1 screw
(+BVTP 3
× 8)
2 connector
(CN300)
1 connector
(CN901)
8 DC fan
qf tuner
qs I/O board
back panel
6 wire (flat type)
13p(CN201)
qa wire (flat type)
11p(CN101)
5 wire (flat type)
23p(CN601)
0 screw (+BVTP 3 × 8)
9 eight screws (+BVTP 3 × 8)
3 two screws (+BVTP 3 × 8)
4 screw (+BVTP 3 × 8)
qd two screws (+BVTP 3 × 8)
7 two screws (+BVTT 4 × 8)
