Sony DAV-S300 - Rear Panel Connections

65
Additional Information
1 AM antenna connector (10)
Connects to the supplied AM loop antenna.
2 FM 75 Ω COAXIAL antenna connector (10)
Connects to the supplied FM wire antenna.
3 VIDEO 1 connectors (11)
Connect to a VCR.
4 VIDEO 2 connectors (11)
Connect to an additional VCR.
5 MONITOR OUT (VIDEO/S VIDEO) connectors (11)
Connect to a TV monitor.
6 SPEAKER connectors (8)
Connect to the supplied speakers.
7 WOOFER OUT connector (9)
Connects to a subwoofer of active type.

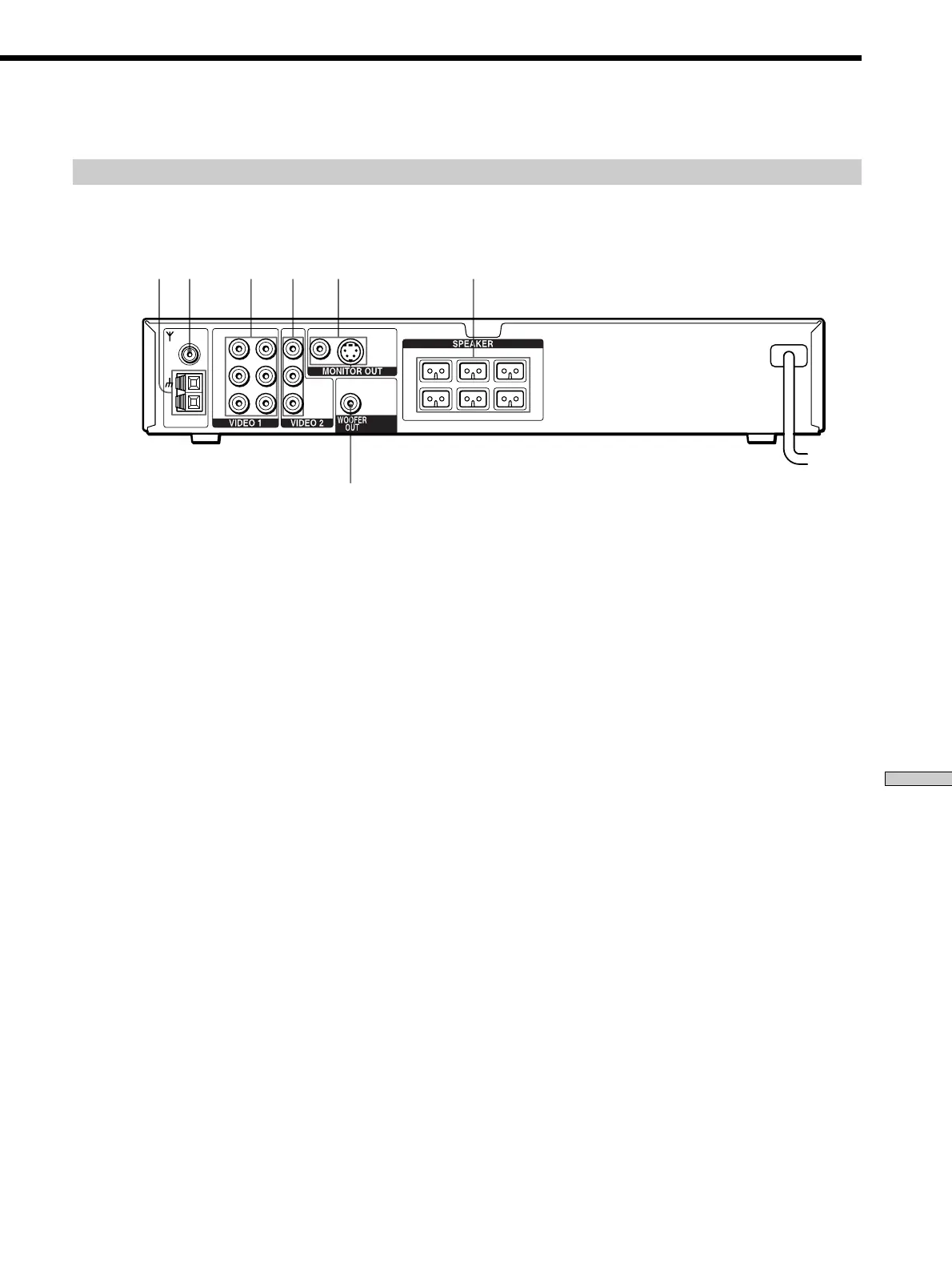

Rear Panel
12 3 4 5 6
7
R
L
R
L
VIDEOVIDEO INVIDEO INVIDEO OUT
AUDIO INAUDIO INAUDIO OUT
FM
75Ω
COAXIAL
AM
IMPEDANCE USE 3Ω
FRONT R CENTER FRONT L
REAR R WOOFER REAR L
S VIDEO
(
DVD ONLY
)
