Getting Started
13
GB
Terminals for connecting the speakers
Note on placing speakers
Use caution when placing the subwoofer or a speaker stand (not supplied) that is attached with the
front/surround speakers on a specially treated (waxed, oiled, polished, etc.) floor, as staining or
discoloration may result.

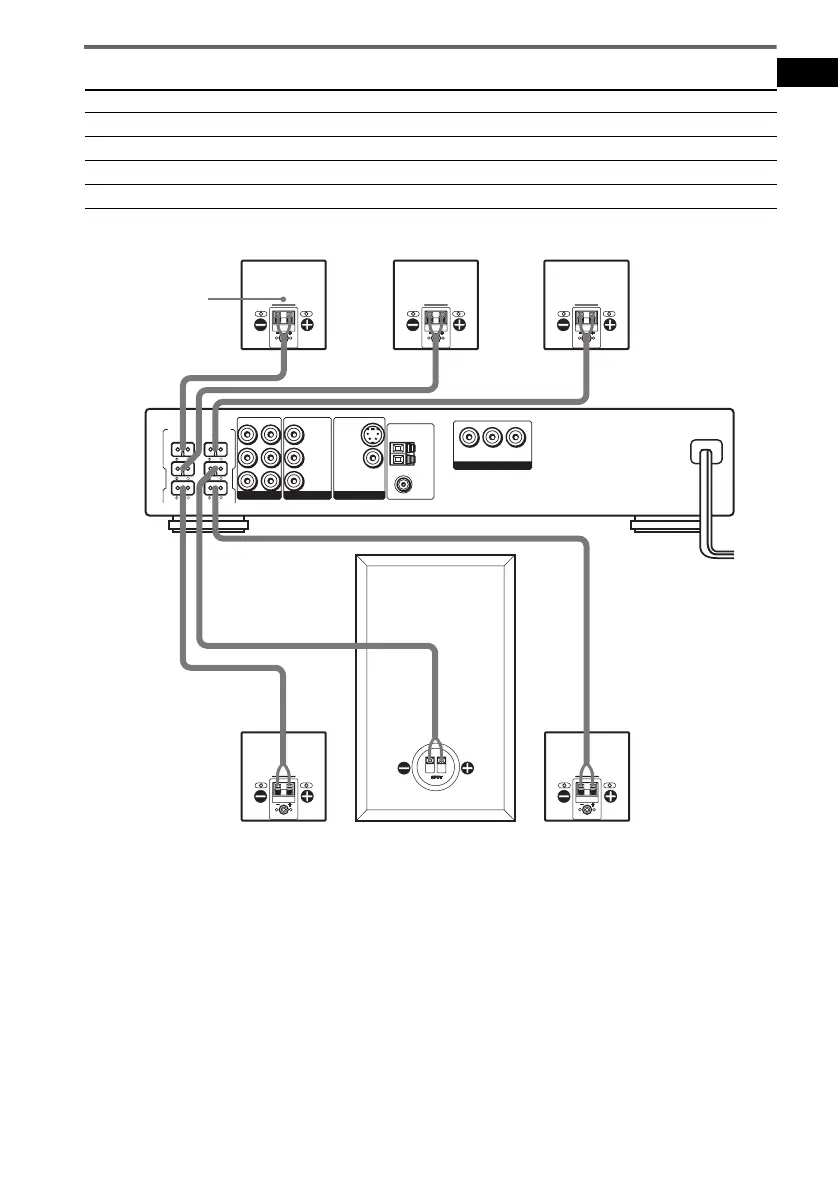

Connect the To the
Front speakers SPEAKER FRONT L (white) and R (red) jacks
Surround speakers SPEAKER SURR L (blue) and R (grey) jacks
Center speaker SPEAKER CENTER (green) jack
Subwoofer SPEAKER WOOFER (purple) jack
COAXIAL
AM
FM
75
FRONT R
CENTER WOOFER
FRONT L
SURR
R
SURR
L
VIDEO 1
VIDEO OUT
AUDIO OUT
VIDEO IN
AUDIO IN
L
R
VIDEO 2 MONITOR OUT
VIDEO IN
S VIDEO
(DVD ONLY)
VIDEO
AUDIO IN
L
R
COMPONENT VIDEO OUT
PB/CBYPR/CR
Front speaker (R) Center speaker Front speaker (L)
colour label
Surround speaker (R)
Subwoofer
Surround speaker (L)
