Sony DAV-SA30 - Index to Parts and Controls

72
GB
For more information, refer to the pages indicated in parentheses.

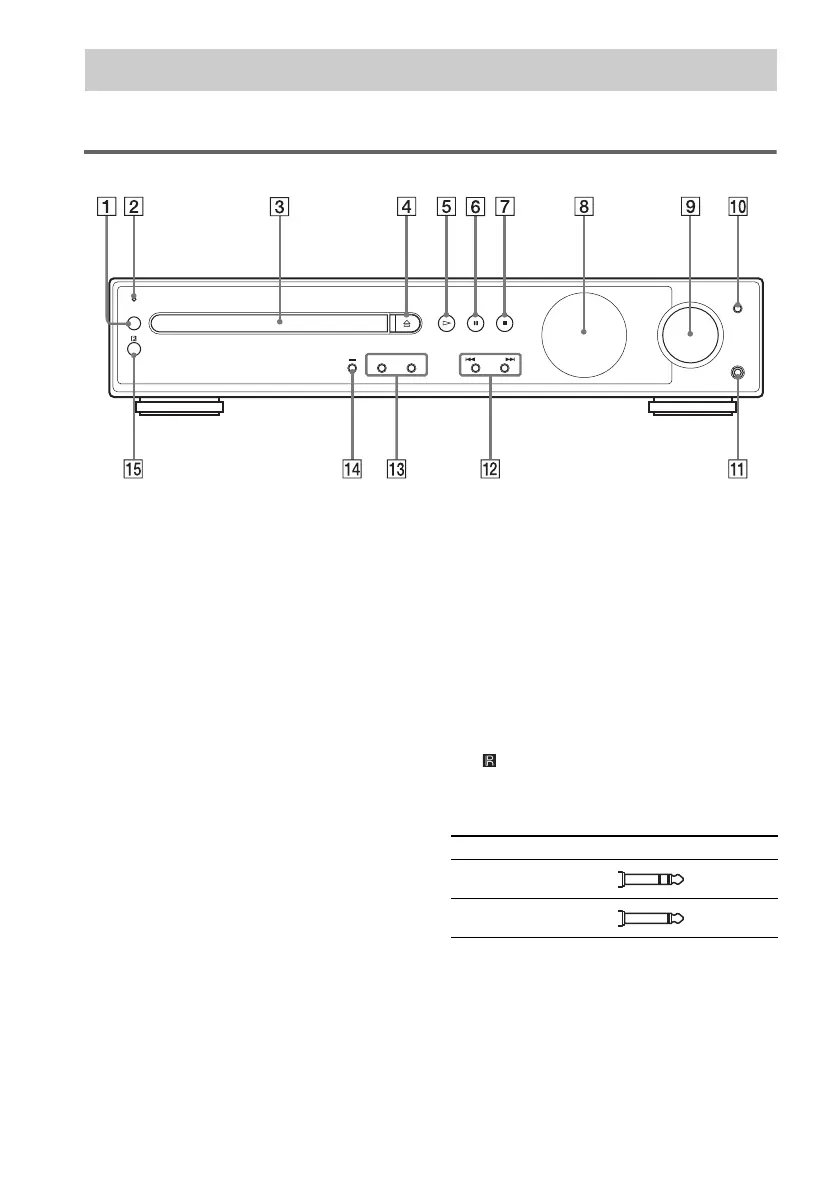

Front Panel
A "/1 (power) (21)
B STANDBY indicator (21)
C Disc tray (21)
D A (open/close) (21)
E H (play) (21)
F X (pause) (22)
G x (stop) (22)
H Front panel display (73)
I VOLUME control (21, 64)
J FUNCTION (21, 53, 55)
K PHONES jack (DAV-SA30) (21)
PHONES/MIC jack (DAV-SA35K)
*
(21, 44)
L ./>, PREV/NEXT, PRESET –/+
(22, 54)
M KEY CONTROL 2 /# (DAV-SA35K only)
(44)
N KARAOKE/MPX (DAV-SA35K only) (44)
O (remote sensor) (11)
* Connect each microphone and headphones to the
jack as below.
Note
Connecting a wrong type of jack may cause a
malfunction.
Index to Parts and Controls
- +
I/1
Connect Jack type
Headphones Stereo
MIC Mono
