Sony DAV-SR2 - Speakers; Subwoofer

Getting Started
13
GB

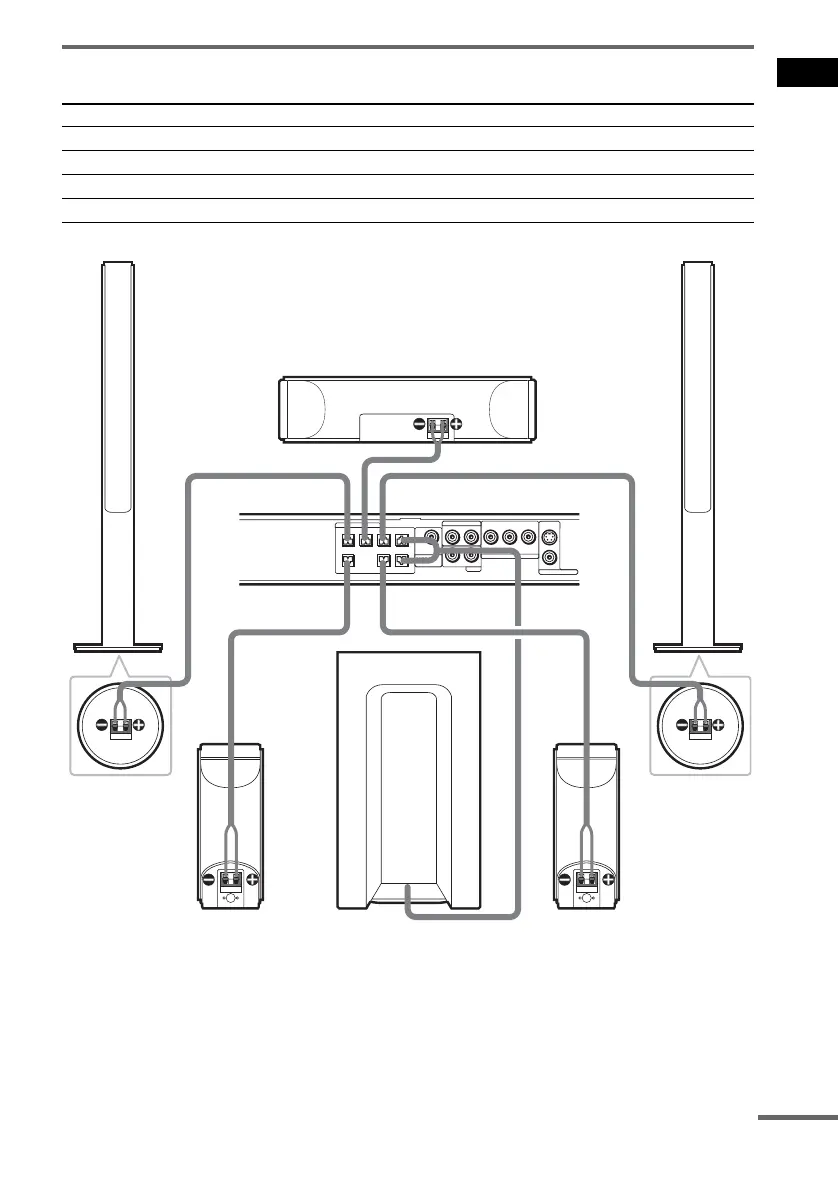

Terminals for connecting the speakers
Connect the To the
Front speakers SPEAKER FRONT L (white) and R (red) jacks
Surround speakers SPEAKER SURR L (blue) and R (gray) jacks
Center speaker SPEAKER CENTER (green) jack
Subwoofer SPEAKER WOOFER (purple) jacks
AUDIO IN
VIDEO
SURROUND
BACK
SAT
SPEAKER
AUDIO IN
RL
RL
CENTER FRONT LFRONT R
SURR L
WOOFER
WOOFERSURR R
COMPOMEMT VIDEO OUT
MONITOR OUT
S VIDEO
(DVD ONLY)
VIDEO
YP
B /C B P R /C R
Front speaker (R)
Center speaker
Front speaker (L)
Surround speaker (R)
Subwoofer
Surround speaker (L)
Bottom of the
front speaker
Bottom of the
front speaker
continued
