Sony DCR-DVD91E - 5-1. EXPLODED VIEWS; 5-1-8. MD SECTION

5-10
DCR-DVD91E/DVD101/DVD101E

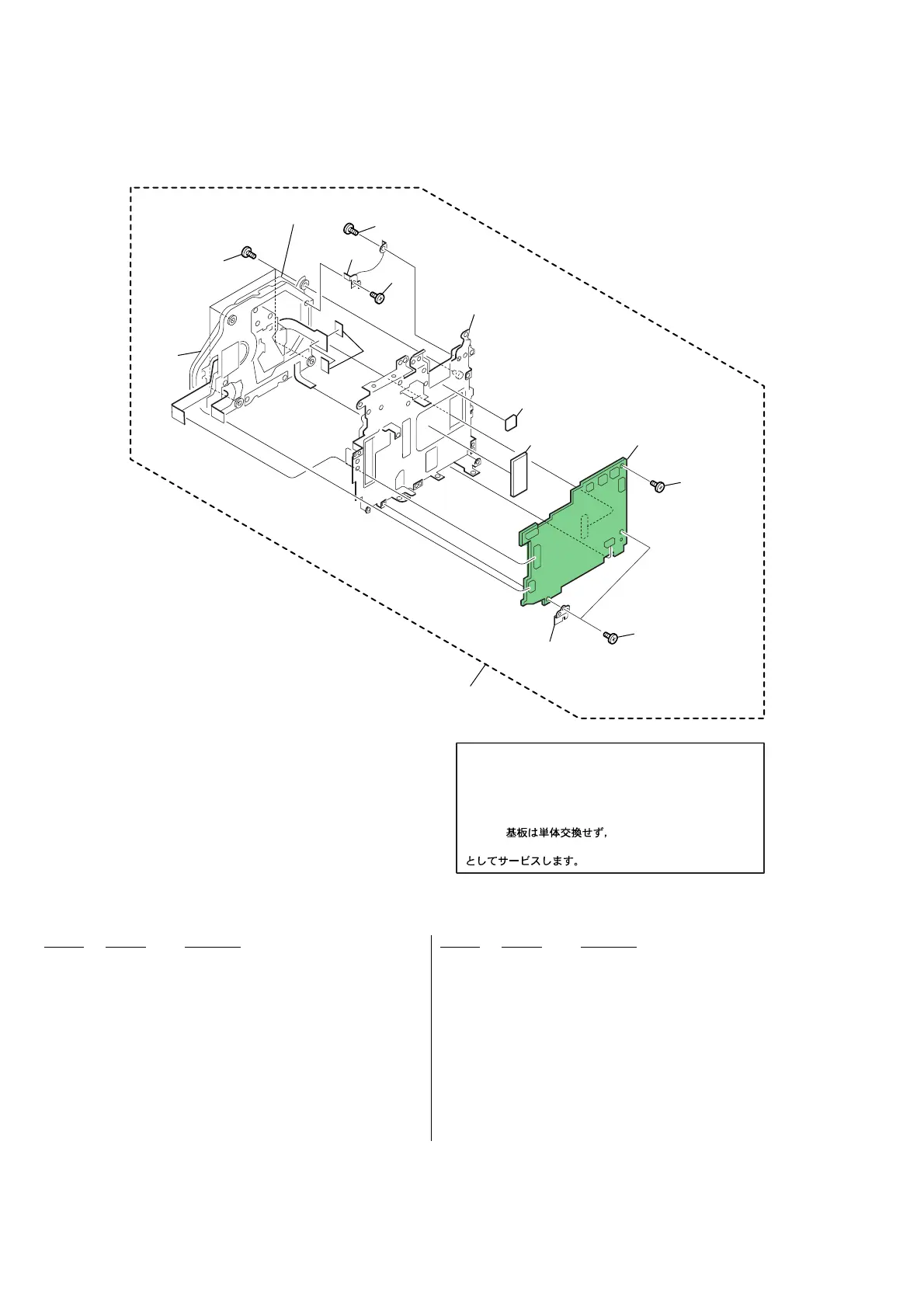

5-1-8. MD SECTION
ns : not supplied
M
D-104
353
353
352
351
355
354
357
359
353
356
358
ns
ns
ns
DDX-A1010 complete section
(See page 5-11)
Note:
<English>
Since a service is provided only for the MD BLOCK ASSY
(DVD91E: A-7113-373-A, DVD101/DVD101E: A-7113-371-A)
and not for the single MD-104 board, complete.
<Japanese>
MD-104 MD BLOCK ASSY
(DVD91E: A-7113-373-A, DVD101/DVD101E: A-7113-371-A)
5-1. EXPLODED VIEWS
Ref. No. Part No. Description Ref. No. Part No. Description
351 A-7113-372-A DDX-1010 SERVICE ASSY (SERVICE)
352 3-084-681-01 LOCKACE, SCREW (M1.4), PWH
353 3-078-889-11 SCREW (M1.7)
354 X-3954-335-1 FRAME ASSY, MD
355 A-1055-384-A MD-104 BOARD, COMPLETE (SERVICE)
(DVD101/DVD101E)
355 A-1061-612-A MD-104 BOARD, COMPLETE (SERVICE)
(DVD91E)
(Since a service is provided only for t he MD BLOCK ASSY
(DVD91E:A-7113-373-A, DVD101/DVD101E: A-7113-371-A)
and not for the single MD-104 board,complete)
356 3-085-069-01 SPRING, FK
357 3-092-019-01 SCREW (M1.7), LOCK ACE
358 A-7113-371-A MD BLOCK ASSY (SERVICE) (DVD101/DVD101E)
358 A-7113-373-A MD BLOCK ASSY (SERVICE) (DVD91E)
359 3-090-644-01 SHEET METAL (JS), RETAINER
