5. REPAIR PARTS LIST
DCR-HC23E/HC24E/HC26/HC26E/HC35E_L2
5-1-1. OVERALL ASSEMBLY
Ref. No. Part No. Description Ref. No. Part No. Description
1 X-2108-030-1 CABINET (172) ASSY, NS
2 2-664-983-11 CABINET (UPPER (172))
(HC24E/HC26/HC26E/HC35E)
2 2-664-983-21 CABINET (UPPER (172)) (HC23E)
#2 2-635-562-31 SCREW (M1.7) (Black)
#10 2-599-475-31 SCREW (M1.7) (Silver)
#14 2-599-475-11 SCREW (M1.7) (Silver)

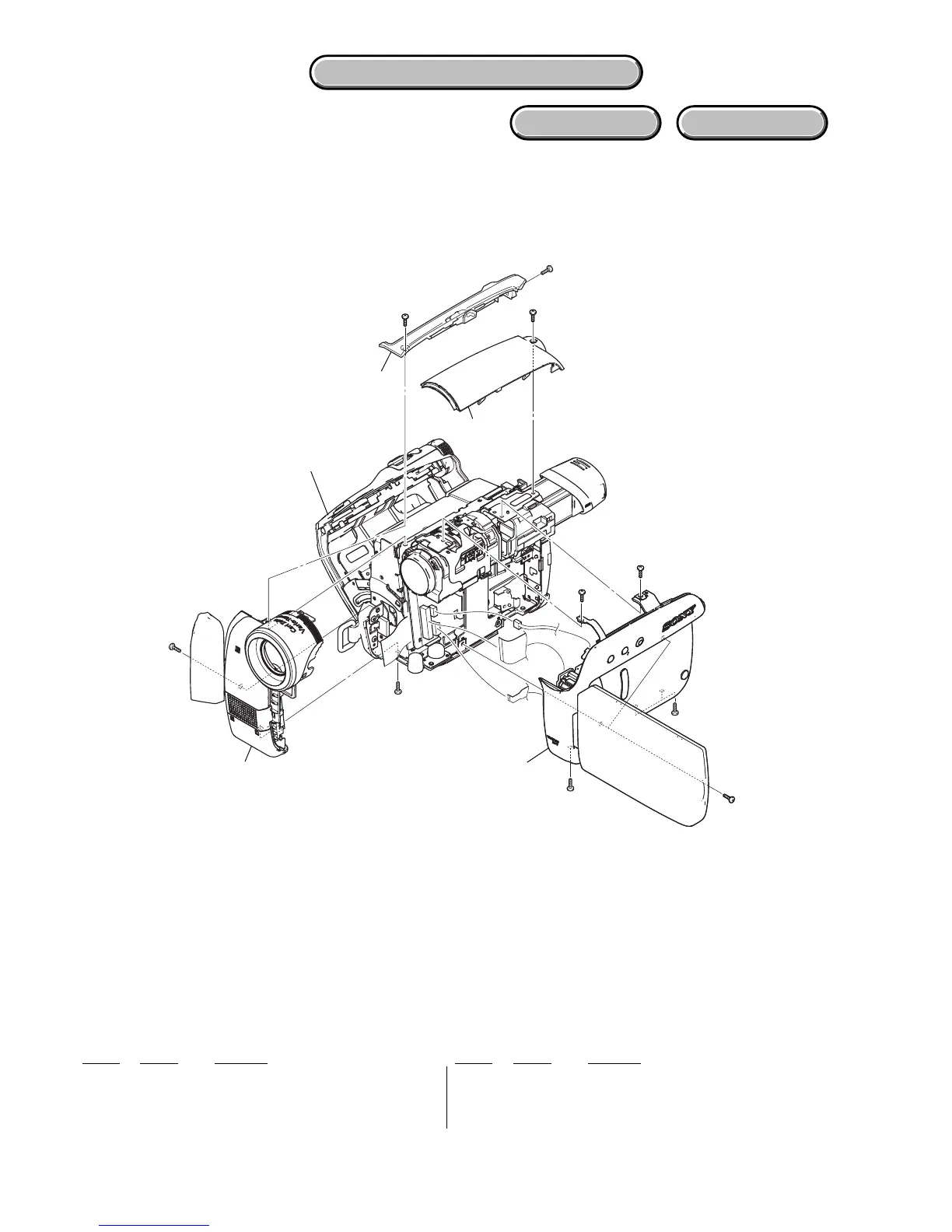

5-1. EXPLODED VIEWS
#2
#2
#10
#10
#10
#2
#2
#14
#14
#14
1
2
Front Panel Block
(See page 5-3.)
Cabinet (R) Block
(See page 5-4.)
Main Block-1
(See page 5-5.)
DISASSEMBLY
HARDWARE LIST
