— 3 —
DCR-HC23E/HC24E/HC26/HC26E/HC35E_L2
51 X-2108-155-4 PANEL (17R) ASSY, F (HC24E)
51 X-2108-157-4 PANEL (17C) ASSY, F (HC35E)
* 116 2-638-780-01 CLIP
152 1-867-779-13 FP-381 FLEXIBLE BOARD
706 X-2024-450-3 COMPARTMENT ASSY, CASSETTE
765 X-2024-468-3 ARM ASSY (S), GL
802 X-2024-463-2 SLIDER ASSY, MODE

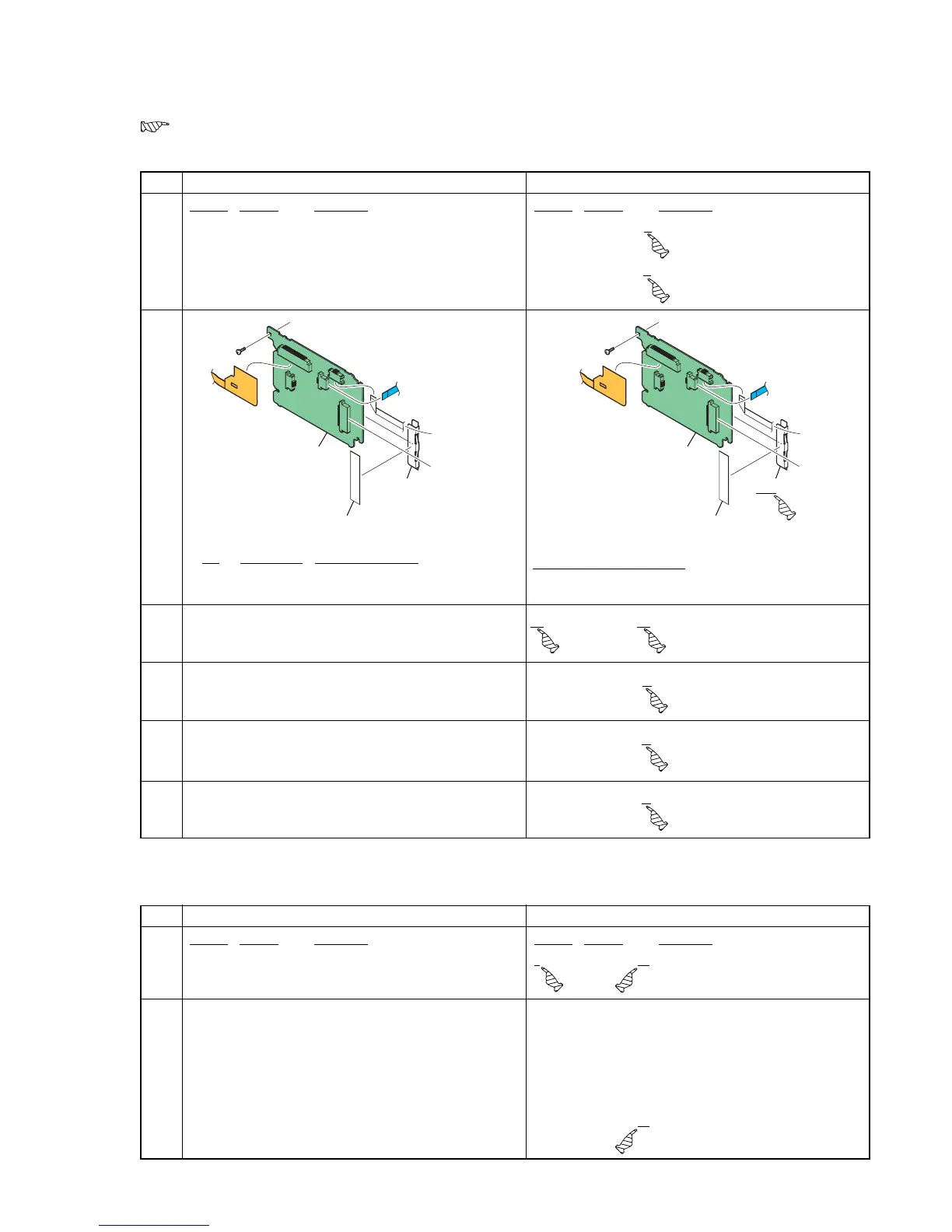

5. REPAIR PARTS LIST
& : Points added portion.
: Points changed portion.
5-1. EXPLODED VIEWS
Page Former New
Ref. No. Part No. Description Ref. No. Part No. Description
5-4
51 X-2108-155-1 PANEL (17R) ASSY, F (HC24E)
51 X-2108-157-1 PANEL (17C) ASSY, F (HC35E)
* 152 1-867-779-11 FP-381 FLEXIBLE BOARD
706 X-2024-450-1 COMPARTMENT ASSY, CASSETTE
765 X-2024-468-1 ARM ASSY (S), GL
802 X-2024-463-1 SLIDER ASSY, MODE
5-3
PD-281
#12
102
103
ns
PD-281
#12
102
103
116
)
5-5
5-9
5-11
1-867-779-13 FP-381 FLEXIBLE BOARD
********************
A-1153-836-A SI-051 BOARD, COMPLETE
(HC23E/HC24E/HC26/HC26E)
A-1153-837-A SI-051 BOARD, COMPLETE (HC35E)
**********************
< CONNECTOR >
CN601 1-815-794-13 CONNECTOR (MULTIPLE) (A/V OUT)
5-2. ELECTRICAL PARTS LIST
Page Former New
Ref. No. Part No. Description Ref. No. Part No. Description
5-13
* 1-867-779-11 FP-381 FLEXIBLE BOARD
********************
A-1153-836-A SI-051 BOARD, COMPLETE
(HC23E/HC24E/HC26/HC26E)
A-1153-837-A SI-051 BOARD, COMPLETE (HC35E)
**********************
< CONNECTOR >
CN601 1-815-794-21 CONNECTOR (MULTIPLE) (A/V OUT)
5-12
5-10
