5. REPAIR PARTS LIST
DCR-HC44E/HC46/HC46E_L2
Ref. No. Part No. Description Ref. No. Part No. Description
201 8-848-812-01 LSV-1080C
* 202 2-664-981-01 FRAME (172), LENS
203 1-788-242-11 OPTICAL FILTER BLOCK
204 3-088-645-01 RUBBER (Z), SEAL
205 1-830-779-11 CABLE, FLEXIBLE FLAT (FFC-064)

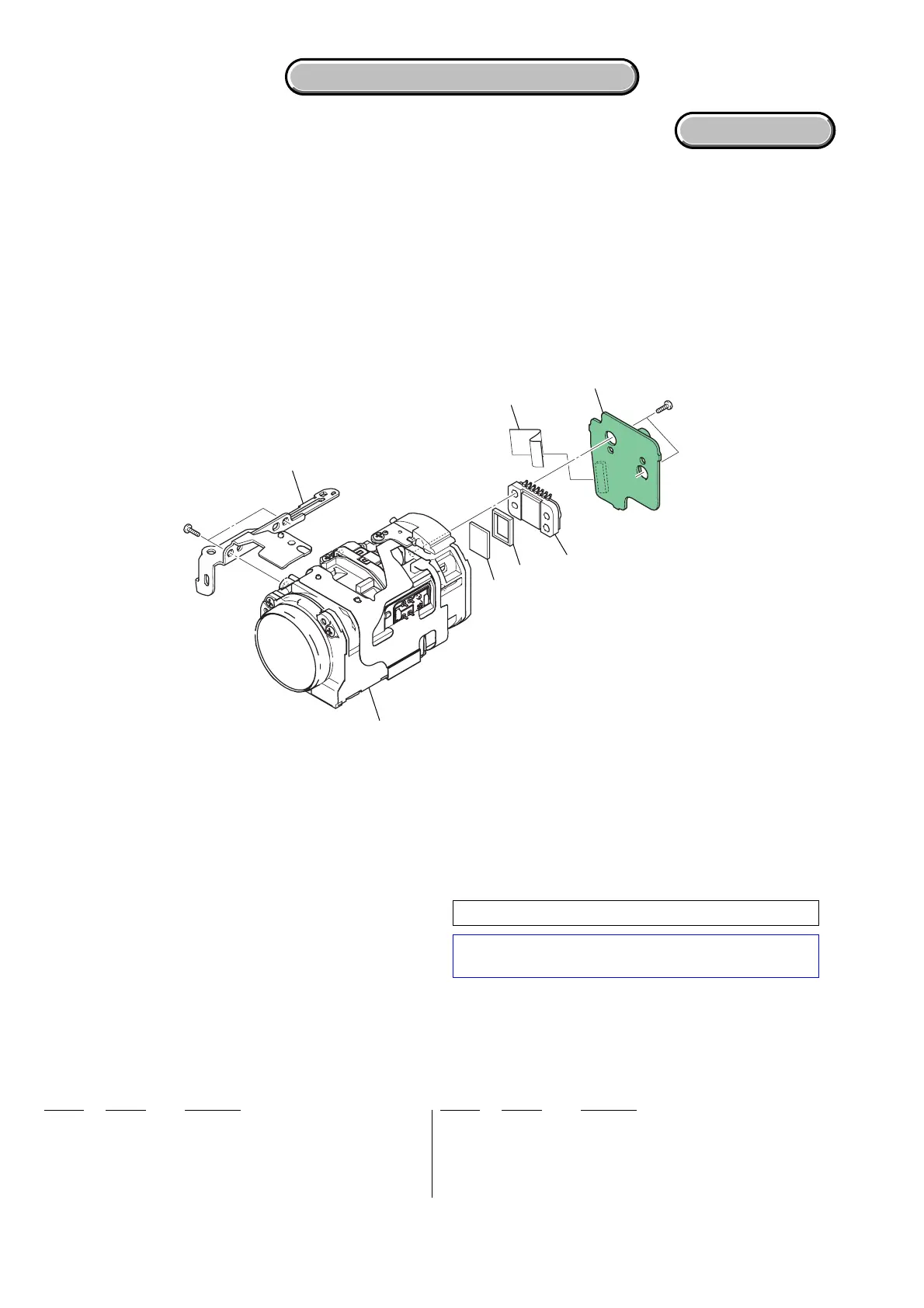

5-1-5. LENS BLOCK
206 A-1153-884-A CD-633 BOARD, COMPLETE
IC201 A-1103-137-A CCD BLOCK ASSY (1M) (CCD IMAGER)
(Note 1, 2)
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
#13 3-085-397-01 SCREW (Silver)
HARDWARE LIST
Note 1: IC201 is not included in CD-633 complete board.
Note 2: Be sure to read “Precuations for Replacement of Imager”
on page 4-3 when changing the imager.
CD-633
#1
2
IC201
(Note1, 2)
#13
201
202
203
204
205
206
