5. REPAIR PARTS LIST
DCR-HC44E/HC46/HC46E_L2

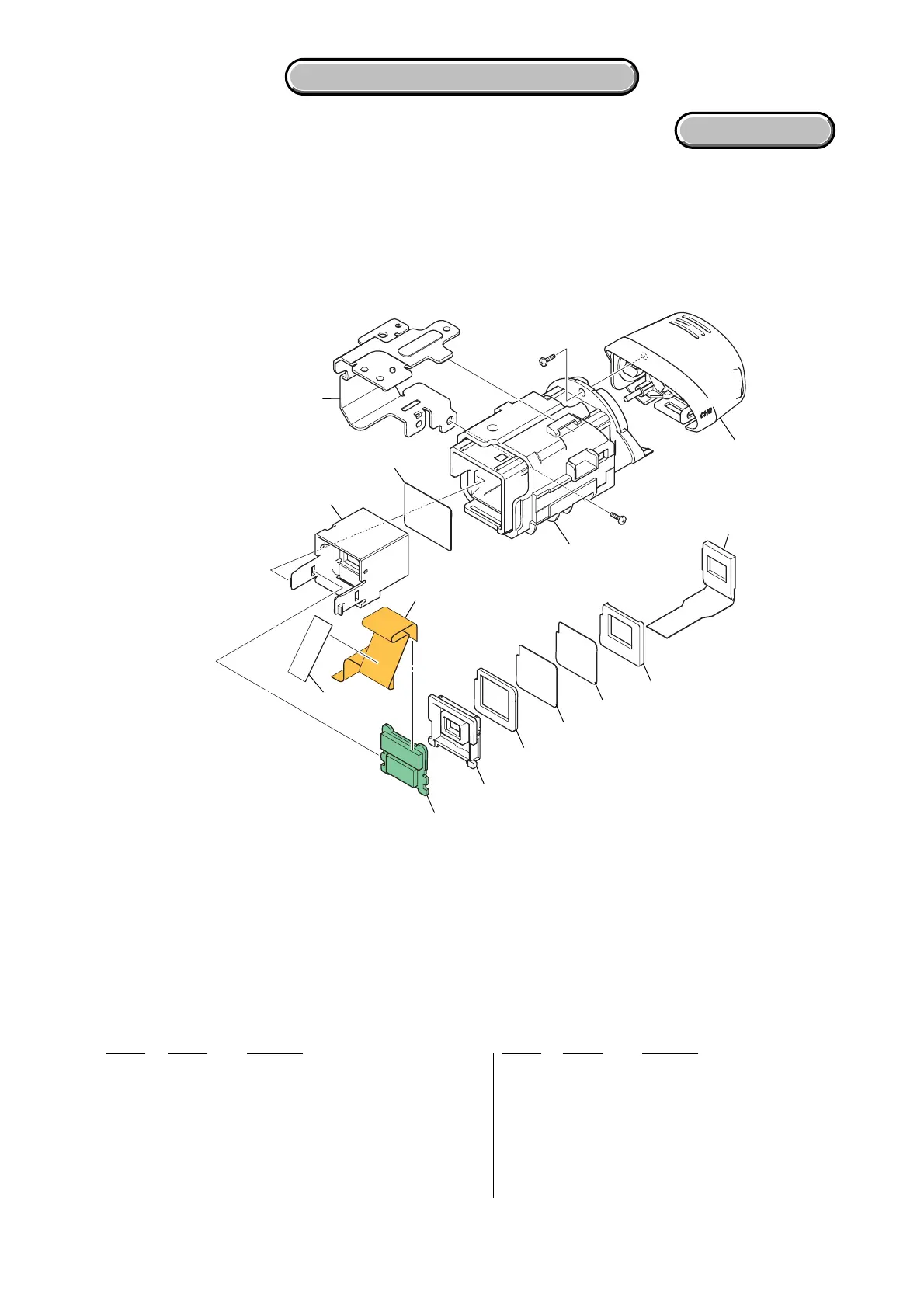

5-1-6. EVF BLOCK
Ref. No. Part No. Description Ref. No. Part No. Description
251 A-1153-877-A LB-123 BOARD, COMPLETE
252 2-664-672-01 GUIDE, LAMP
* 253 2-638-819-01 CUSHION, LCD
* 254 2-638-818-01 ILLUMINATOR
* 255 2-638-816-01 PLATE (TFT), DEFLECTION
256 2-664-671-01 SPACER, LCD
257 3-941-343-01 TAPE (A)
* 258 1-867-777-11 FP-379 FLEXIBLE BOARD
* 259 2-664-670-01 CABINET, INNER
* 260 2-638-813-01 PLATE (CF), DEFLECTION
* 261 2-664-669-01 FRAME (172), FIXED
262 X-2103-696-1 VF (172) ASSY
263 X-2103-695-1 EYE CUP ASSY
LCD902 8-753-245-09 LCX059CKK-1
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
HARDWARE LIST
#12
LCD902
251
257
253
258
259
254
255
256
252
260
262
261
263
#3
