5-9
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-PC53E/PC55/PC55E

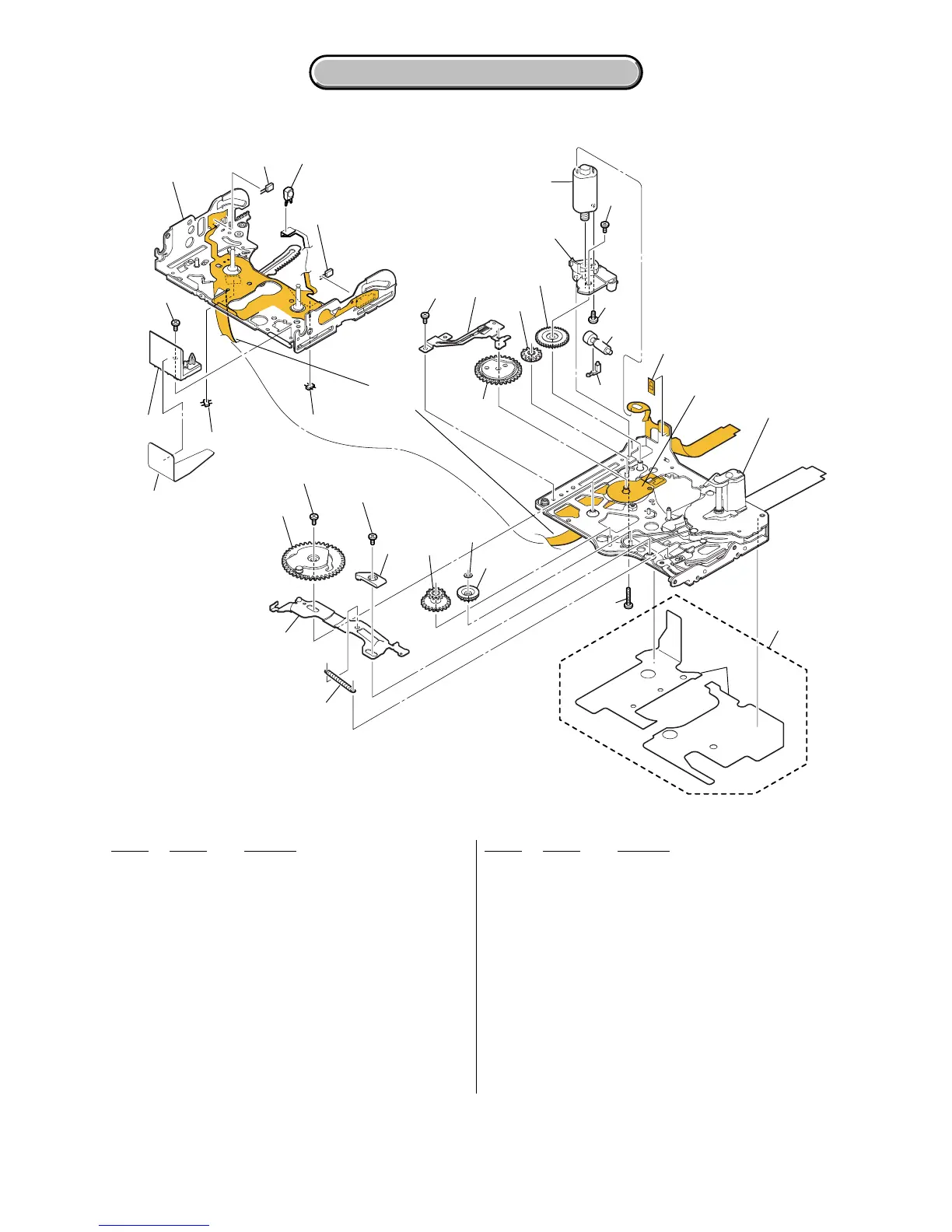

5-1-7. LS/MECHANICAL CHASSIS BLOCK ASSEMBLY-2
Ref. No. Part No. Description Ref. No. Part No. Description
ns : not supplied
801
802
803
804
804
810
812
813
814
815
815
816
817
818
811
804
805 806
807
808
809
ns
ns
ns
H9001
LED9001
Q9002
M9002
Q9001
MIC9002
H9002
819
820
821
FP-031
FP-032
Note1: The FP-031 and FP-032 are supplied as the assembled part of
the MD(N100)sub ass'y A by attaching them with the adhesive agent.
These parts are not separately supplied because assembling of
these parts requires high accuracy.
Note2: The mode switch (S9003) function works when the contactor of the FP-032
contacts with the bottom surface of wiper of the mode gear ass'y.
(Note1)
(Note2)
(Note1)
(Note2)
801 2-342-624-01 SPRING (PINCH LIMITTER), EXTEN
802 X-2024-463-1 SLIDER ASSY, MODE
803 X-2024-462-1 GEAR ASSY, CAM
804 3-075-097-11 SCREW (M1.4X1.4), SPECIAL HEAD
805 2-342-625-01 RETAINER, LEVER EJ
806 2-342-621-01 GEAR, RELAY
807 3-315-414-31 WASHER
808 2-342-620-01 GEAR, CONVERSION
809 3-084-377-01 HEAD (SCREW M1.2)
810 X-2024-460-1 BASE ASSY, CAM
811 X-2024-461-1 GEAR ASSY, MODE
812 2-342-615-01 GEAR,NO.2
813 2-342-691-01 GEAR,NO.1
814 2-342-688-01 MOTOR HOLDER
815 3-895-822-71 SCREW (M1.2X1.5), SPECIAL, 0
816 2-342-689-01 WORM SHAFT (2J)
817 2-342-690-01 BASE, MOTOR HOLDER
818 1-677-049-11 FP-228 FLEXIBLE BOARD (DEW SENSOR)
819 2-342-686-01 COVER, CAPSTAN
820 2-541-984-01 MIC COVER
821 3-703-816-13 SCREW (M1.4X2.0), SPECIAL HEAD
LED9001 6-500-652-01 DIODE GL453SE0000F (TAPE LED)
H9001 8-719-067-74 ELEMENT, HOLE HW-105A-CDE-T (S REEL)
H9002 8-719-067-74 ELEMENT, HOLE HW-105A-CDE-T (T REEL)
M9002 X-2024-464-1 MOTOR ASSY (LORDING)
MIC9002 1-818-576-11 PIN, CONNECTOR (WITH DETECTION SWITCH)
Q9001 6-550-672-01 TRANSISTOR PT4850FJE00F (TAPE END)
Q9002 6-550-672-01 TRANSISTOR PT4850FJE00F (TAPE TOP)
