Sony DCR-PC53E - Circuit Boards Location

2-10
2. DISASSEMBLY
2. DISASSEMBLY
DCR-PC53E/PC55/PC55E

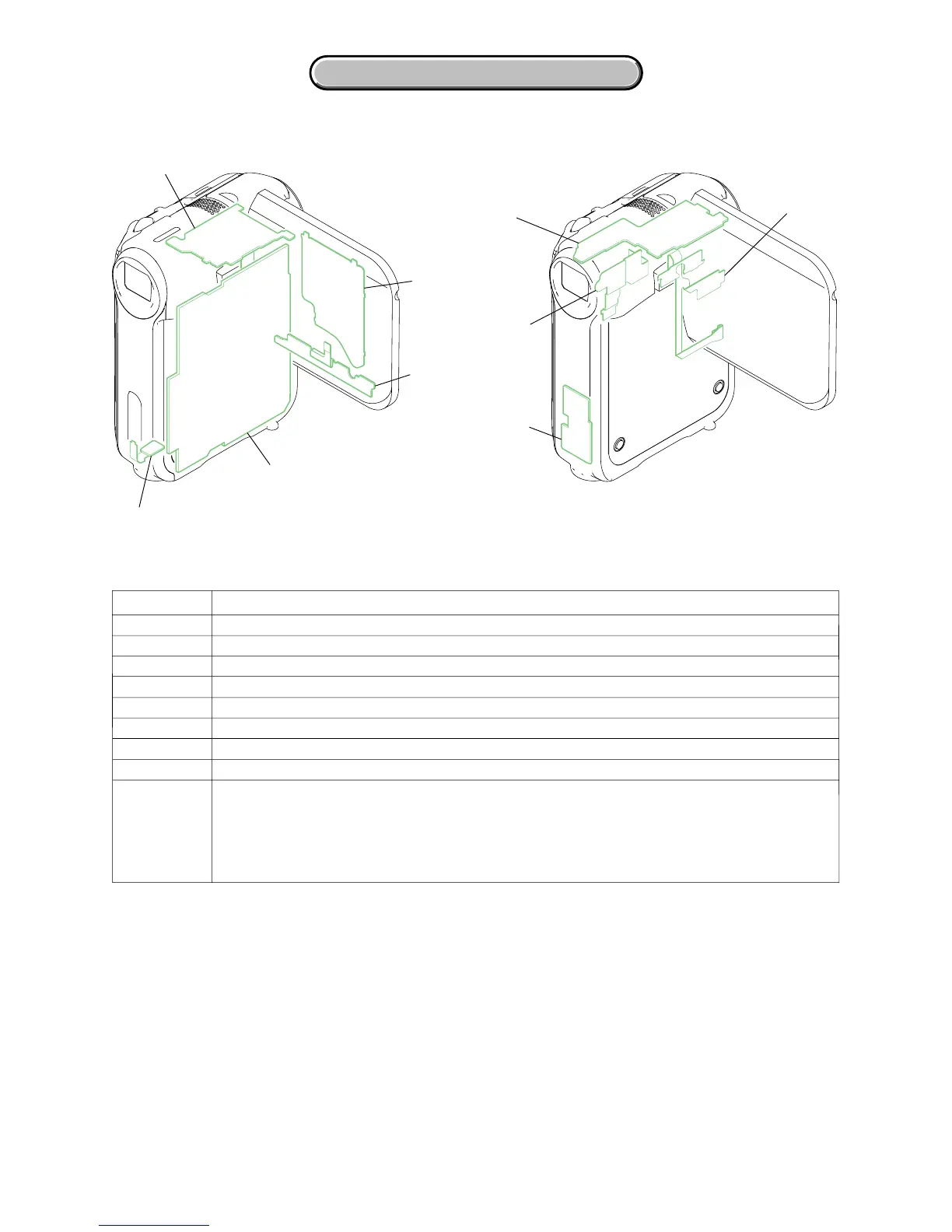

2-3. CIRCUIT BOARDS LOCATION
CR-049
VC-379
FB-223
FP-050
FP-048
FP-052
PD-239
FP-051
FP-222
NAME FUNCTION
MIC AMP, DC IN, CONNECTOR
PITCH/YAW SENSOR, REMOTE COMMANDER RECEIVER, LI BATT.
CCD IMAGER
EJECT SW
FUNCTION SW, LED
MS CONNECTOR
PANEL O/C, REV.SW
RGB DRIVE, BACK LIGHT DRIVE
TIMING GENERATOR, A/D CONV. LENS DRIVE, MPEG MOVIE/DIGITAL STILL PROCESS,
HI/DIGITAL STILL CONTROL, 16M SDRAM, 64K EEPROM, DV/RF SIGNAL PROCESS,
DV INTERFACE, REC/PB AMP, VIDEO, AUDIO I/O, ADC/DAC,
DRUM/CAPSTAN/LOADING DRIVE, CAMERA/MECHA CONTROL, HI CONTROL,
DC IN, CHARGE, DC/DC CONVERTER, CONNECTOR
CR-049
FB-223
FP-048
FP-050
FP-051
FP-052
FP-222
PD-239
VC-379
