5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-PC53E/PC55/PC55E

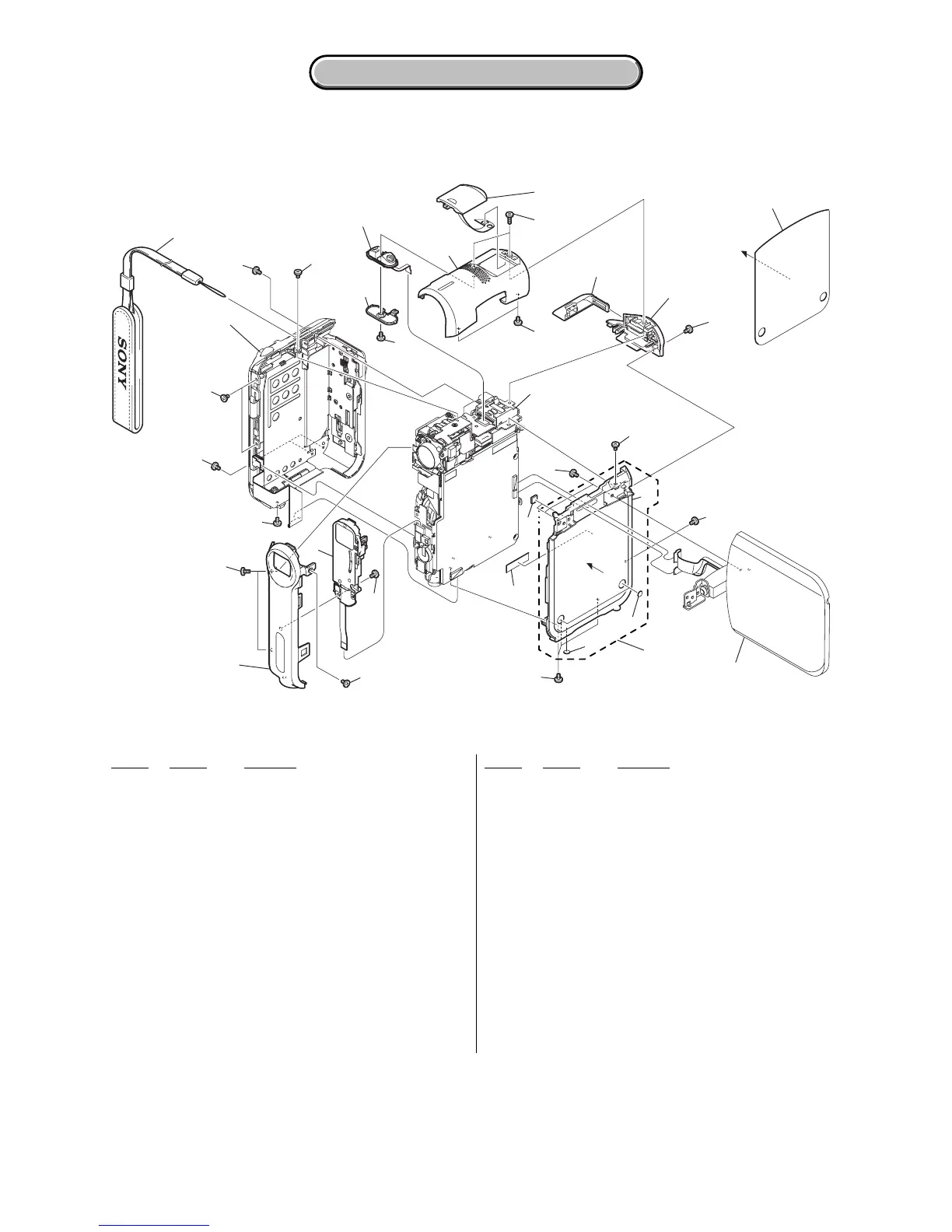

5-1-1. OVERALL SECTION-1
Ref. No. Part No. Description Ref. No. Part No. Description
5-1. EXPLODED VIEWS
Cabinet (L) section
(See page 5-5)
LCD section
(See page 5-6)
Overall section-2
(See page 5-4)
A
A
MIC901
9
8
7
10
11
2
2
13
14
12
6
2
3
2
17
16
5
15
18
21
5
5
5
2
1
4
ns
5
5
5
5
(Silver)
ns : not supplied
1 X-2048-824-1 PANEL ASSY, F (SILVER)
1 X-2048-825-1 PANEL ASSY, F (BLACK)
1 X-2048-826-1 PANEL ASSY, F (WHITE)
1 X-2048-827-1 PANEL ASSY, F (RED)
2 3-056-030-91 SCREW (M1.7), LOCK ACE, P2(SILVER)(WHITE)
2 3-084-523-31 SCREW (M1.7EG LOCK) (BLACK)(RED)
3 1-787-279-11 MOTOR UNIT
4 3-080-204-01 SCREW, TAPPING, P2
5 3-057-082-01 SCREW (M1.7), P2 (SILVER)(WHITE)
5 3-084-523-11 SCREW (M1.7EG LOCK) (BLACK)(RED)
6 2-582-851-01 STRAP, LIST
7 3-080-204-21 SCREW, TAPPING, P2
9 X-2048-816-1 CABINET ASSY, TOP
10 X-2048-806-1 COVER ASSY, SHOE (SILVER)
10 X-2048-807-1 COVER ASSY, SHOE (BLACK)
10 X-2048-808-1 COVER ASSY, SHOE (WHITE)
10 X-2048-809-1 COVER ASSY, SHOE (RED)
11 3-080-198-51 SCREW (M1.7), LOCK ACE, P2
12 2-581-680-01 COVER (L), JACK (SILVER) (WHITE)
12 2-581-680-11 COVER (L), JACK (BLACK) (RED)
13 X-2048-828-1 CABINET ASSY, MS (SILVER) (WHITE)
13 X-2048-829-1 CABINET ASSY, MS (BLACK) (RED)
14 2-581-844-01 SHEET, GUARD (SILVER) (WHITE)
14 2-581-844-11 SHEET, GUARD (BLACK) (RED)
15 X-2048-830-1 CABINET (R) ASSY (SILVER) (WHITE)
15 X-2048-831-1 CABINET (R) ASSY (BLACK) (RED)
16 2-581-814-01 CUSHION, PANEL
17 2-581-815-01 SHEET, FOOT
18 3-052-196-01 TAPE AS
21 2-594-083-01 CUSHION (R)
MIC901 1-542-612-11 MICROPHONE UNIT
