5-4
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-PC53E/PC55/PC55E

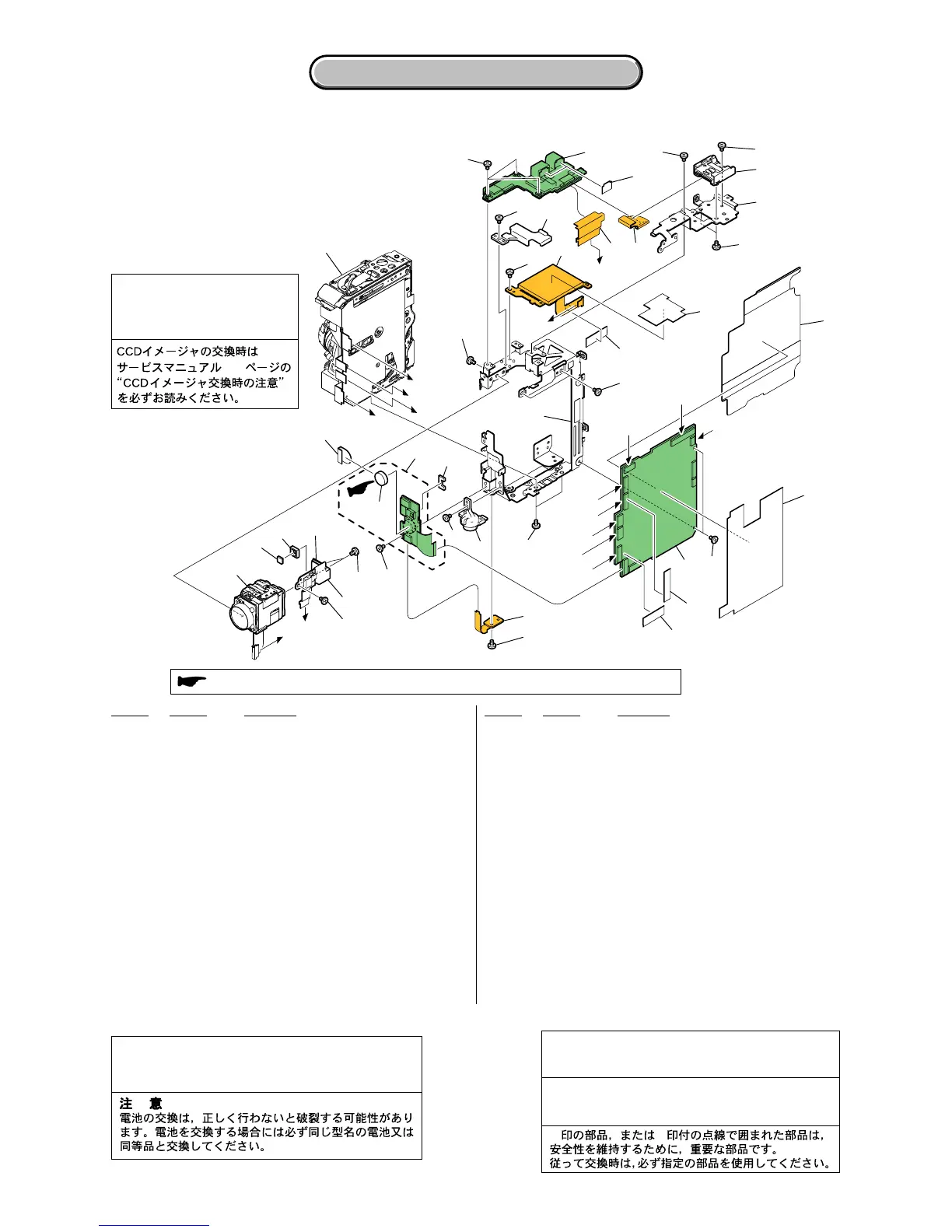

5-1-2. OVERALL SECTION-2
Ref. No. Part No. Description Ref. No. Part No. Description
ns : not supplied
Mechanism deck
(See pages 5-7 to 5-9)
A
A
B
B
C
C
D
D
E
F
G
H
H
G
F
E
V
C
-379
: BT8001 (Lithium battery) FB-223 board on the mount position. (See page 4-67 of Level3)
BT8001
53
57
52
51
54
55
56
54
58
59
60
78
76
72
54
73
60
76
77
61
54
75
74
54
62
64
63
54
54
65
66
54
69
70
54
68
67
54
71
54
Note: FP-048 is included in
the FLEXIBLE BLOCK
ASSY, CCD
(Ref. No. 55).
FP-048
(Note)
51 8-848-786-01 DEVICE, LENS LSV-990A
52 1-788-177-11 OPTICAL FILTER BLOCK
53 2-548-585-01 RUBBER (990), SEAL
54 3-057-082-01 SCREW (M1.7), P2
55 A-1087-297-A FLEXIBLE BLOCK ASSY, CCD (PC55)
55 A-1087-298-A FLEXIBLE BLOCK ASSY, CCD (PC53E/PC55E)
56 3-348-998-61 SCREW (M1.4X4), TAPPING, PAN
57 2-582-965-01 SHEET, LI
58 A-1084-100-A FB-223 BOARD, COMPLETE
59 2-582-963-01 TRIPOD
60 3-062-214-01 SCREW (M1.4X1.5)
61 X-2048-833-1 FRAME ASSY, MD
62 3-080-204-01 SCREW, TAPPING, P2
63 A-1084-105-A FP-052 FLEXIBLE BOARD, COMPLETE
64 2-582-966-01 RETAINER, CR
65 A-1084-099-A CR-049 BOARD, COMPLETE
66 2-582-967-01 SHEET, JK
67 1-864-921-11 FP-044 FLEXIBLE BOARD
68 1-864-928-11 FP-054 FLEXIBLE BOARD
69 1-818-890-11 CONNECTOR, EXTERNAL (HOT SHOE)
70 X-2048-839-1 FRAME ASSY, SHOE
71 2-582-964-01 SHEET, VC
72 A-1088-797-A VC-379 BOARD, COMPLETE (PC55/PC55E)
72 A-1088-802-A VC-379 BOARD, COMPLETE (PC53E)
73 2-548-856-01 LABEL, FUSE REPLACEMENT CAUTION
74 A-1084-103-A FP-050 FLEXIBLE BOARD, COMPLETE
75 2-594-075-01 CUSHION, GYRO
76 2-588-095-01 TAPE, MS
77 2-594-074-01 SHEET, MS DUST PROTECTION
* 78 3-052-196-01 SHEET, LENS FLEXIBLE
0 BT8001 1-756-191-21 BATTERY, LITHIUM (SECONDARY)
