5-5
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-PC53E/PC55/PC55E

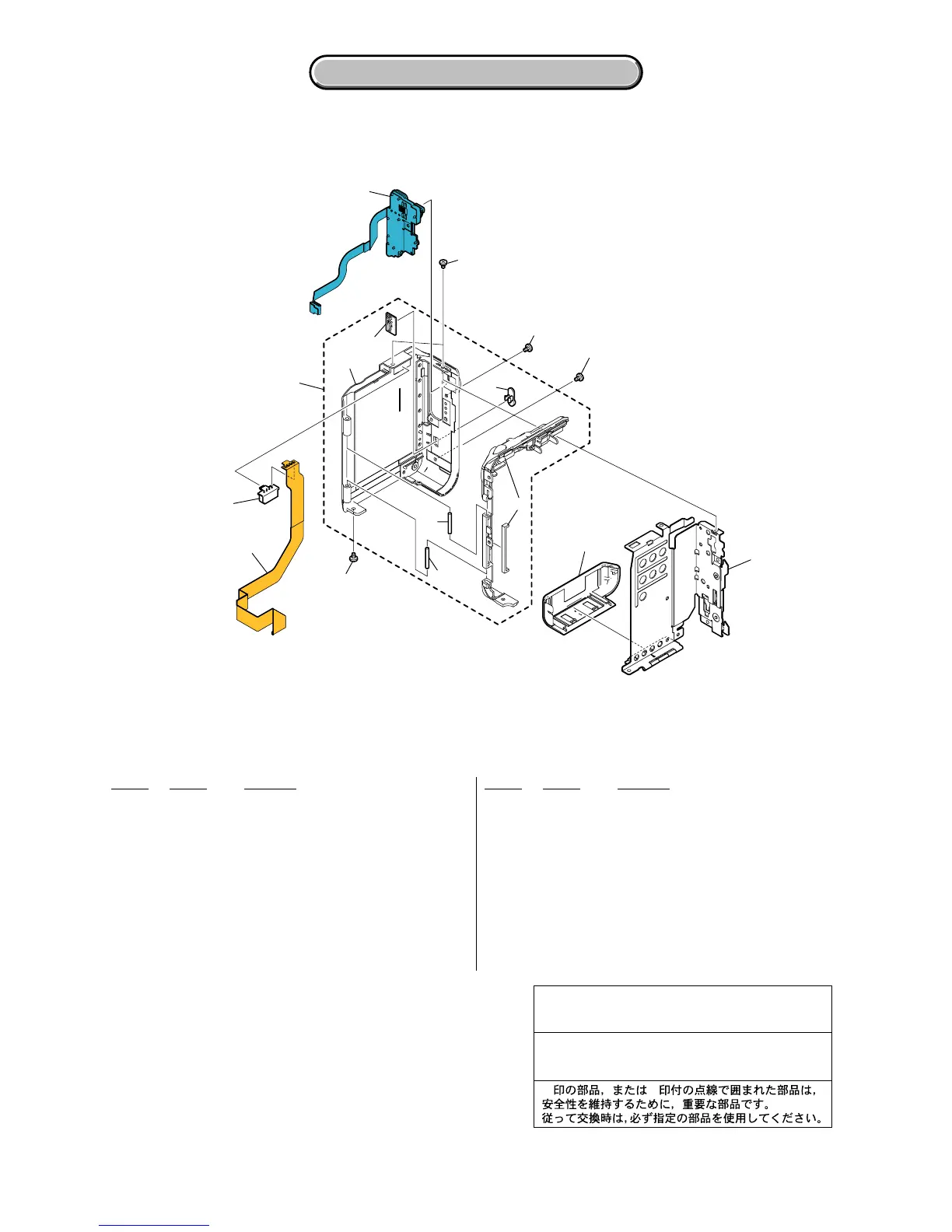

5-1-3. CABINET(L) SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
ns : not supplied
CN001
103
107
103
105
104
106
101
103
108
109
102
ns
ns
ns
ns
101 1-864-923-11 FP-049 FLEXIBLE BOARD
102 X-2048-817-1 CABINET (L) ASSY (PC55:J)(SILVER)
102 X-2048-818-1 CABINET (L) ASSY (PC55:J)(BLACK)
102 X-2048-819-1 CABINET (L) ASSY (PC55:EXCEPT J)
(SILVER) (WHITE)
102 X-2048-820-1 CABINET (L) ASSY (PC55:EXCEPT J)
(BLACK) (RED)
102 X-2048-821-1 CABINET (L) ASSY (PC55E)(SILVER) (WHITE)
102 X-2048-822-1 CABINET (L) ASSY (PC55E)(BLACK) (RED)
102 X-2048-823-1 CABINET (L) ASSY (PC53E)(SILVER)
103 3-057-082-01 SCREW (M1.7), P2 (SILVER)(WHITE)
103 3-084-523-11 SCREW (M1.7EGLOCK)(BLACK)(RED)
104 2-581-763-01 RETAINER, EJECT KNOB
105 2-581-762-01 KNOB, EJECT
106 1-479-058-11 SWITCH BLOCK, CONTROL (PS11300)
107 3-056-030-91 SCREW (M1.7), LOCK ACE, P2 (SILVER)(WHITE)
107 3-084-523-31 SCREW (M1.7EG LOCK)(BLACK)(RED)
108 X-2048-799-1 FRAME ASSY, CS
109 2-581-676-01 LID, BATTERY (SILVER) (WHITE)
109 2-581-676-11 LID, BATTERY (BLACK) (RED)
0CN001 1-780-195-11 BATTERY TERMINAL BOARD
