DCR-SR50E/SR60/SR60E/SR70E/SR80/SR80E_L2
Adhesive tape
Adhesive tape

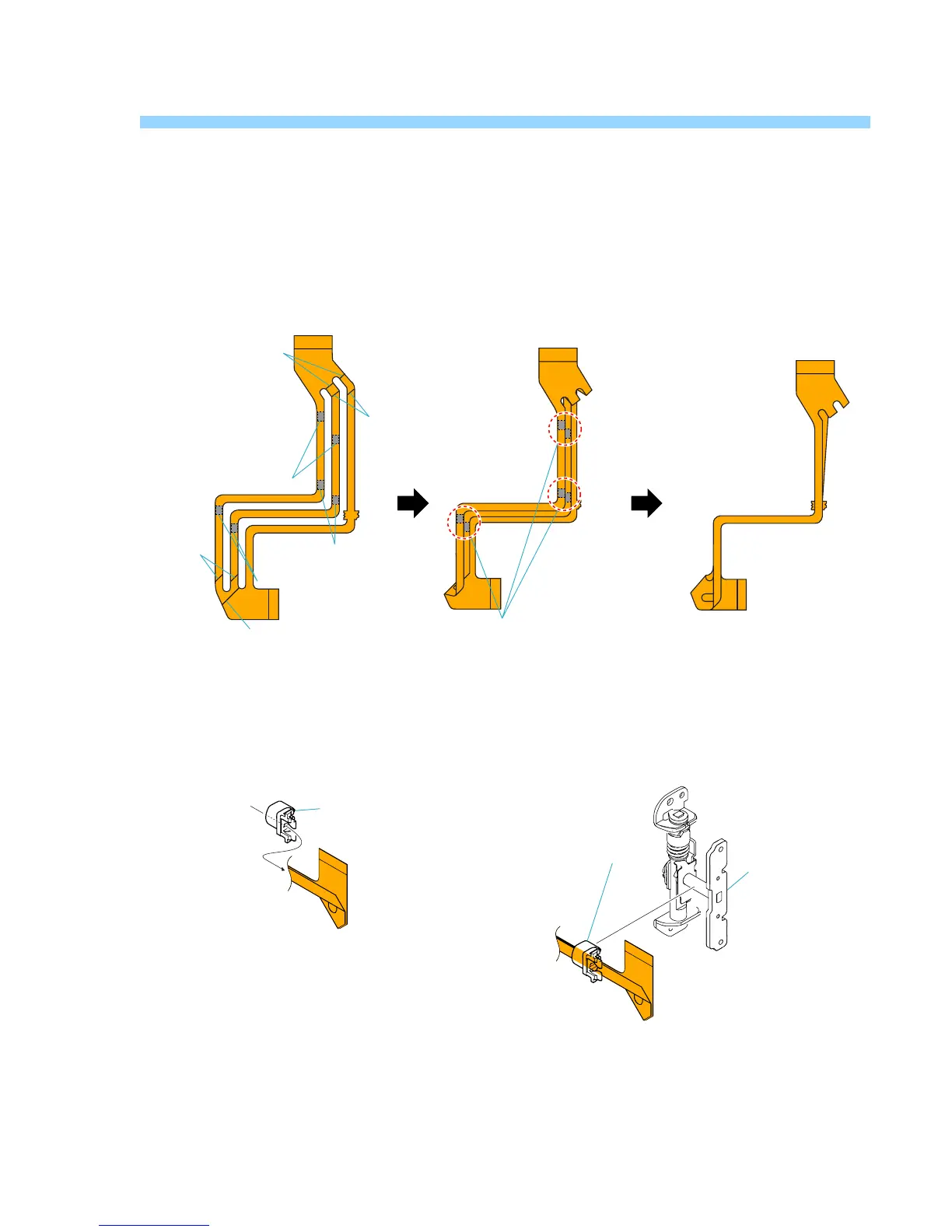

1 Fold dotted line parts of the FP-365 flexible board
as shown in figure.
Valley
fold
Mountain
fold
Mountain
fold
Hinge assy
2 Pass the FP-365 flexible board through
the FPC clamp.
3 Install the FPC clamp in the hinge assy.
FPC clamp
FPC clamp
Adhesive tape
Valley fold
Stick it together in the adhesive tape
while bending the FP-365 flexible board.
THE METHOD OF ATTACHMENT OF FP-365 FLEXIBLE BOARD
