5-2
5. REPAIR PARTS LIST
DCR-SR50E/SR60/SR60E/SR70E/SR80/SR80E_L2

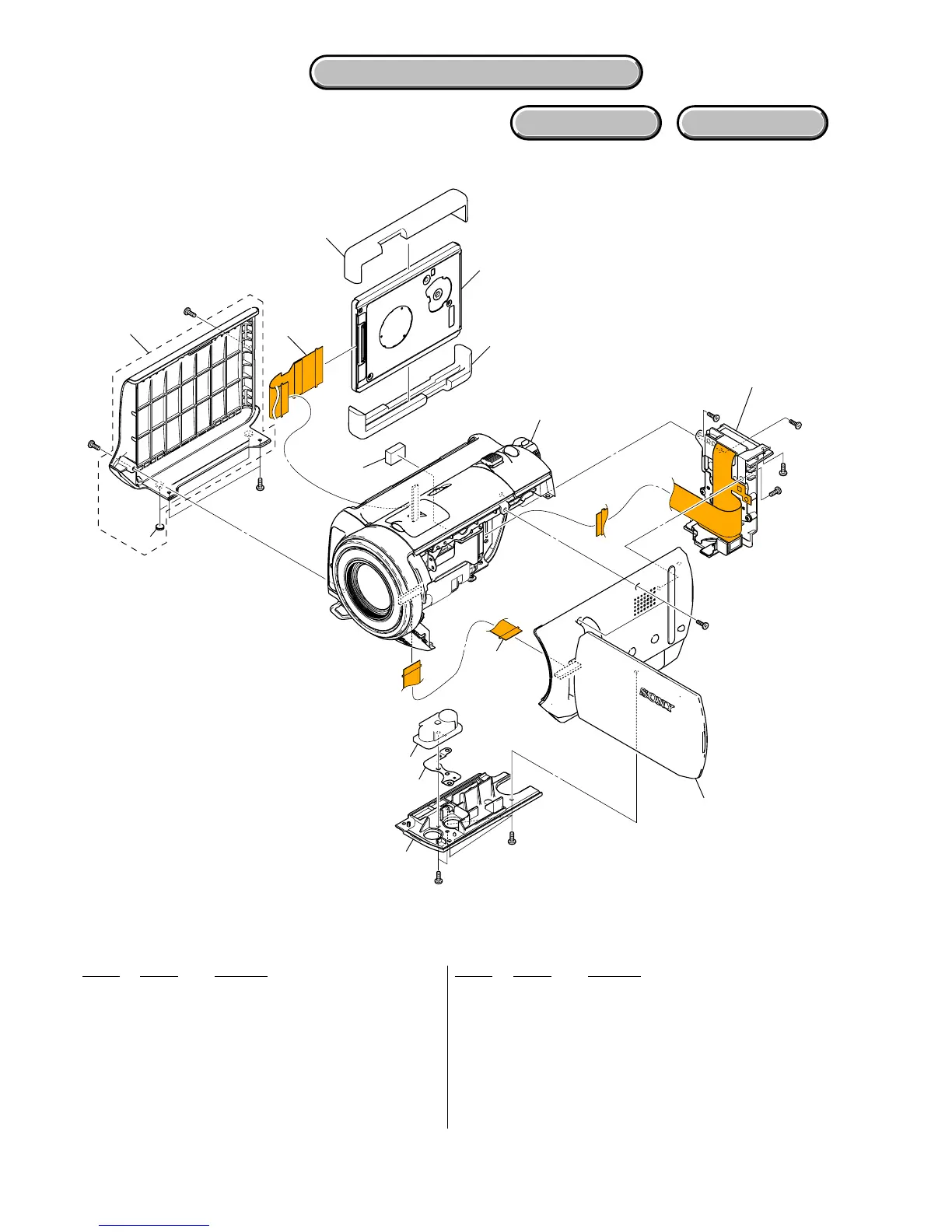

5-1-1. OVERALL SECTION
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
1 2-589-376-01 FOOT (395), RUBBER
2 X-2148-960-1 CABINET (G) (800) ASSY (SR50E/SR60/SR60E)
2 X-2148-961-1 CABINET (G) (330) ASSY (SR70E/SR80/SR80E)
3 A-1202-561-A FP-515 FLEXIBLE BOARD, COMPLETE
4 2-697-545-01 DAMPER, DM
5 A-1184-016-A HDD (MK3008GAL-30GB) (S)
(SR50E/SR60/SR60E)
5 1-797-659-11 HDD (MK6008GAH-60GB)
(SR70E/SR80/SR80E)
5-1. EXPLODED VIEWS
DISASSEMBLY
HARDWARE LIST
* 6 2-673-770-01 GASKET (D)
7 2-673-751-01 SCREW, TRIPOD
8 2-697-540-01 CABINET (BOTTOM)
* 9 1-870-457-11 FP-510 FLEXIBLE BOARD
#2 2-635-562-31 SCREW (M1.7) (Black)
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
#12
#12
#2
#2
#2
#2
#2
#2
#2
#2
5
4
4
3
2
1
6
BT Panel Block
(See page 5-9.)
Cabinet (L) Section
(See page 5-3.)
Cabinet (R) Section-1
(See page 5-6.)
7
9
ns
8
