5-3
5. REPAIR PARTS LIST
DCR-SR50E/SR60/SR60E/SR70E/SR80/SR80E_L2

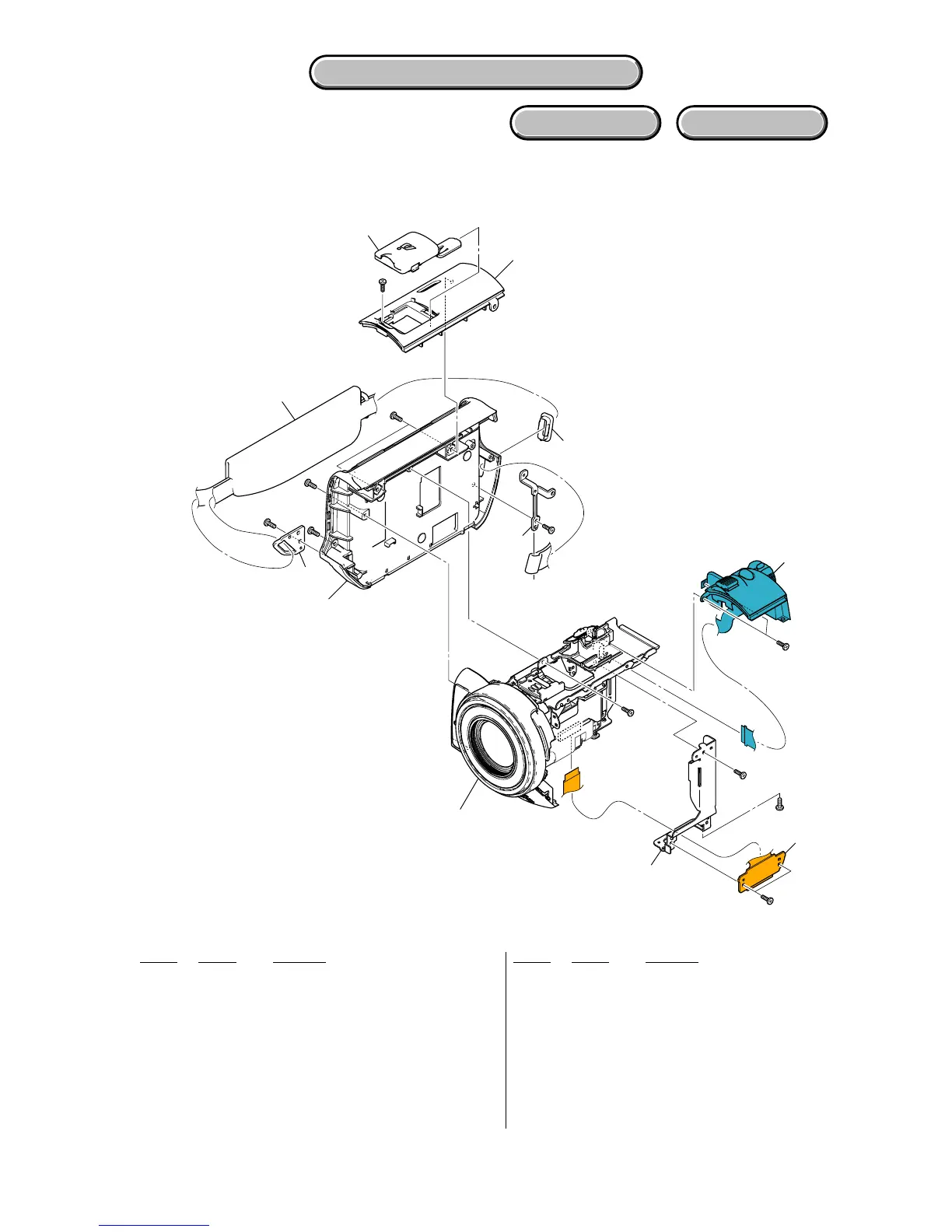

5-1-2. CABINET (L) SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
51 2-697-534-01 CABINET (L) (SR50E/SR60/SR60E)
51 2-697-534-11 CABINET (L) (SR70E/SR80/SR80E)
* 52 2-697-536-01 PLATE (F), GRIP
53 2-664-928-21 BELT, GRIP
54 X-2148-964-1 COVER ASSY, SHOE
55 2-697-538-01 CABINET (UPPER) 800 (J)
55 2-697-538-11 CABINET (UPPER) 800 (EXCEPT J)
56 2-697-535-01 GUARD, BELT
* 57 2-697-537-01 PLATE (R), GRIP
58 1-479-805-11 SWITCH BLOCK, CONTROL (PS80800) (J)
DISASSEMBLY
HARDWARE LIST
58 1-479-805-21 SWITCH BLOCK, CONTROL (PS80800)
(EXCEPT J)
59 A-1202-560-A FP-518 FLEXIBLE BOARD, COMPLETE
* 60 2-697-543-01 FRAME, CENTER
#2 2-635-562-31 SCREW (M1.7) (Black)
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#11 3-078-890-11 SCREW, TAPPING (Silver)
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
#2
#12
#2
#11
#12
#12
#12
58
56
57
53
51
52
Main Frame Section
(See page 5-4.)
#3
#3
#3
60
59
#2
54
55
