5-4
5. REPAIR PARTS LIST
DCR-SR50E/SR60/SR60E/SR70E/SR80/SR80E_L2
Ref. No. Part No. Description Ref. No. Part No. Description
101 2-697-542-01 FRAME, MAIN
* 102 1-870-460-11 FP-513 FLEXIBLE BOARD
103 X-2148-958-1 KNOB (800) ASSY, NS
104 A-1203-057-A VC-463 BOARD, COMPLETE (SERVICE)
(SR60/SR80)
104 A-1203-058-A VC-463 BOARD, COMPLETE (SERVICE)
(SR60E/SR80E)

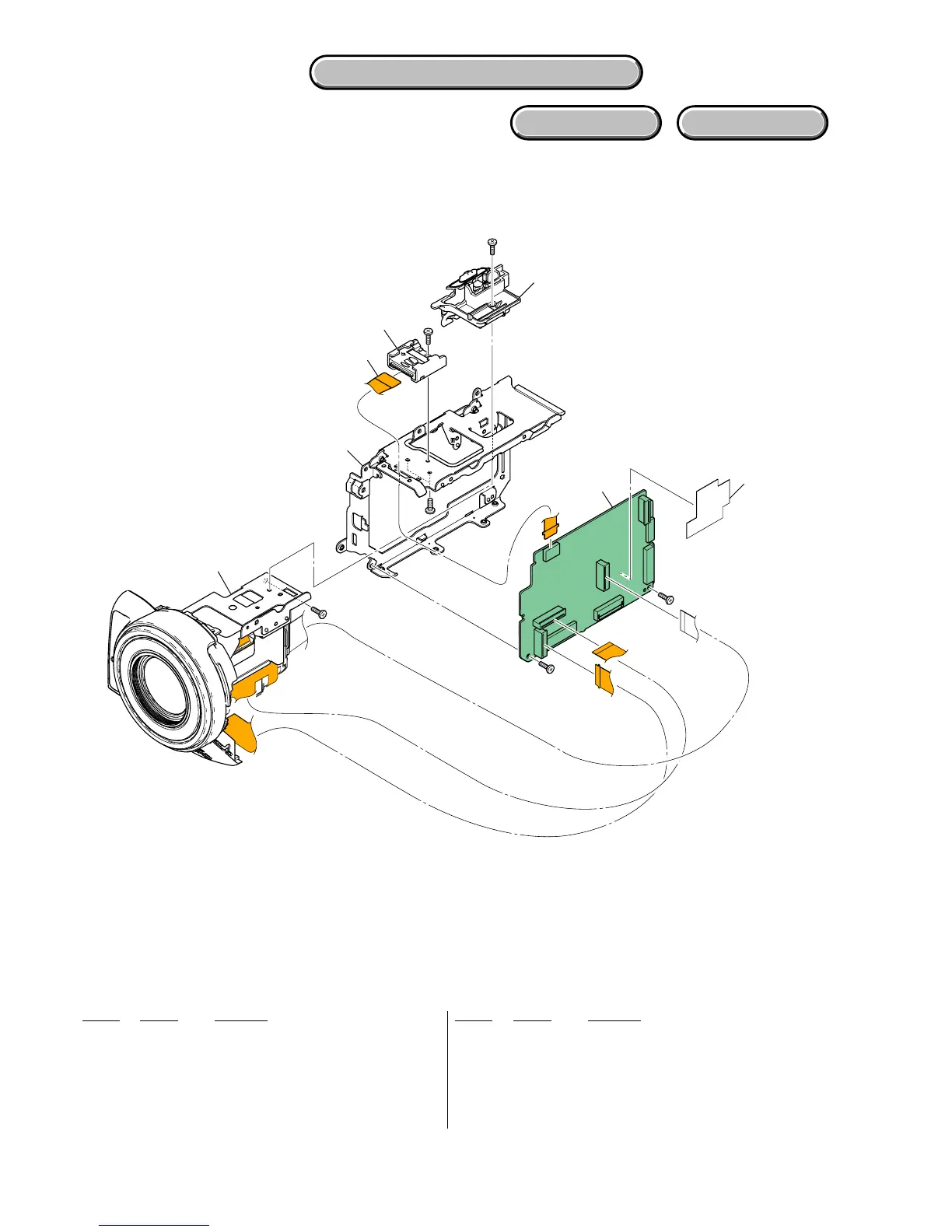

5-1-3. MAIN FRAME SECTION
ns: not supplied
104 A-1203-059-A VC-463 BOARD, COMPLETE (SERVICE)
(SR50E/SR70E)
CN901 1-818-890-11 CONNECTOR, EXTERNAL (HOT SHOE)
#1 2-635-562-11 SCREW (M1.7) (Black)
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
DISASSEMBLY
HARDWARE LIST
VC-463
#1
#1
#3
#3
#3
#3
102
104
103
ns
CN901
101
Front Cabinet Section
(See page 5-5.)
