Sony DCR-SR50E - Page 61

5-5
5. REPAIR PARTS LIST
DCR-SR50E/SR60/SR60E/SR70E/SR80/SR80E_L2
#11
#2
#2
#5
#11
#11
#12
#12
#11
154
ns
153
158
159
160
155
ns
152
151
164
IC201
(Note 1, 2)
161
165
ns
162
163
157
156
MIC901

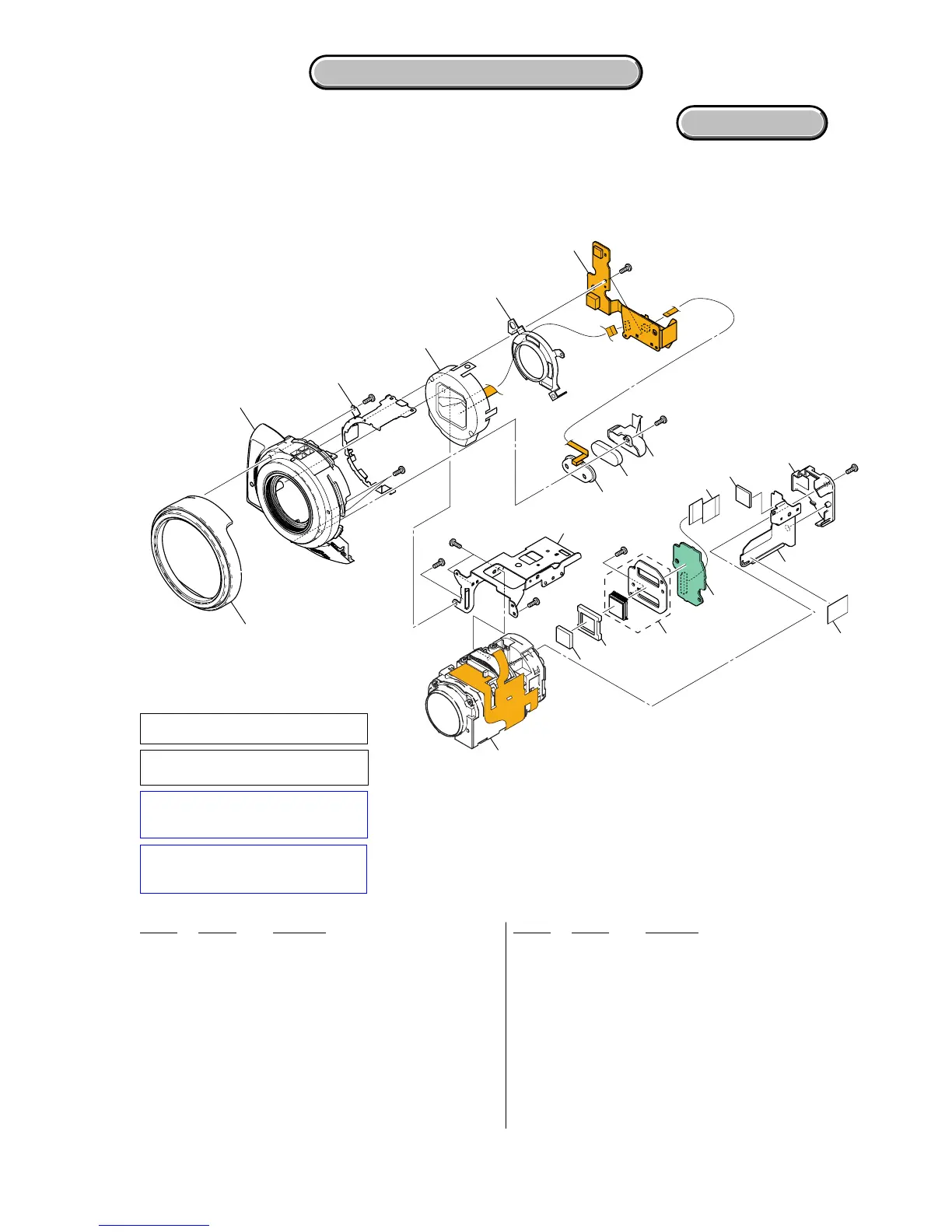

5-1-4. FRONT CABINET SECTION
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
151 2-697-070-01 RING, LENS (800)
152 X-2148-955-1 CABINET (F) (800) ASSY
153 1-787-397-11 MOTOR UNIT (LENS BARRIER)
154 A-1202-635-A FP-514 FLEXIBLE BOARD, COMPLETE
* 155 2-697-388-01 FRAME, LENS
* 156 2-667-297-01 CUSHION, MUFFLE
* 157 2-697-338-01 HOLDER, MICROPHONE
* 158 1-833-219-11 CABLE, FLEXIBLE FLAT (FFC-078)
* 159 2-697-391-01 SHEET (800), CD RADIATION
* 160 2-697-390-01 RETAINER (800), CD
161 A-1202-563-A CD-652 BOARD, COMPLETE
HARDWARE LIST
162 3-088-645-01 RUBBER (Z), SEAL
163 1-788-241-11 OPTICAL FILTER BLOCK
164 8-848-812-01 LSV-1080C
165 2-590-635-01 TAPE AS 1/2
IC201 A-1116-777-A CCD BLOCK ASSY (1M) (CCD IMAGER)
(Note 1, 2)
MIC901 1-542-660-11 MIC UNIT
#2 2-635-562-31 SCREW (M1.7) (Black)
#5 3-080-204-01 SCREW, TAPPING, P2 (Black)
#11 3-078-890-11 SCREW, TAPPING (Silver)
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
Note 1: IC201はマウント済CD-652基
板には含まれません。
Note 1: IC201 is not included in CD-652
complete board.
Note 2: イメージャの交換時は4 - 4 ペー
ジの “ イメージャ交換時の注意”
を必ずお読みください。
Note 2: Be sure to read “Precautions for
Replacement of Imager” on page
4-3 when changing the imager.
