Sony DCR-SR58E - Page 12

DCR-SR58E/SR68/SR68E/SR78E/SR88/SR88E_L2
2-7

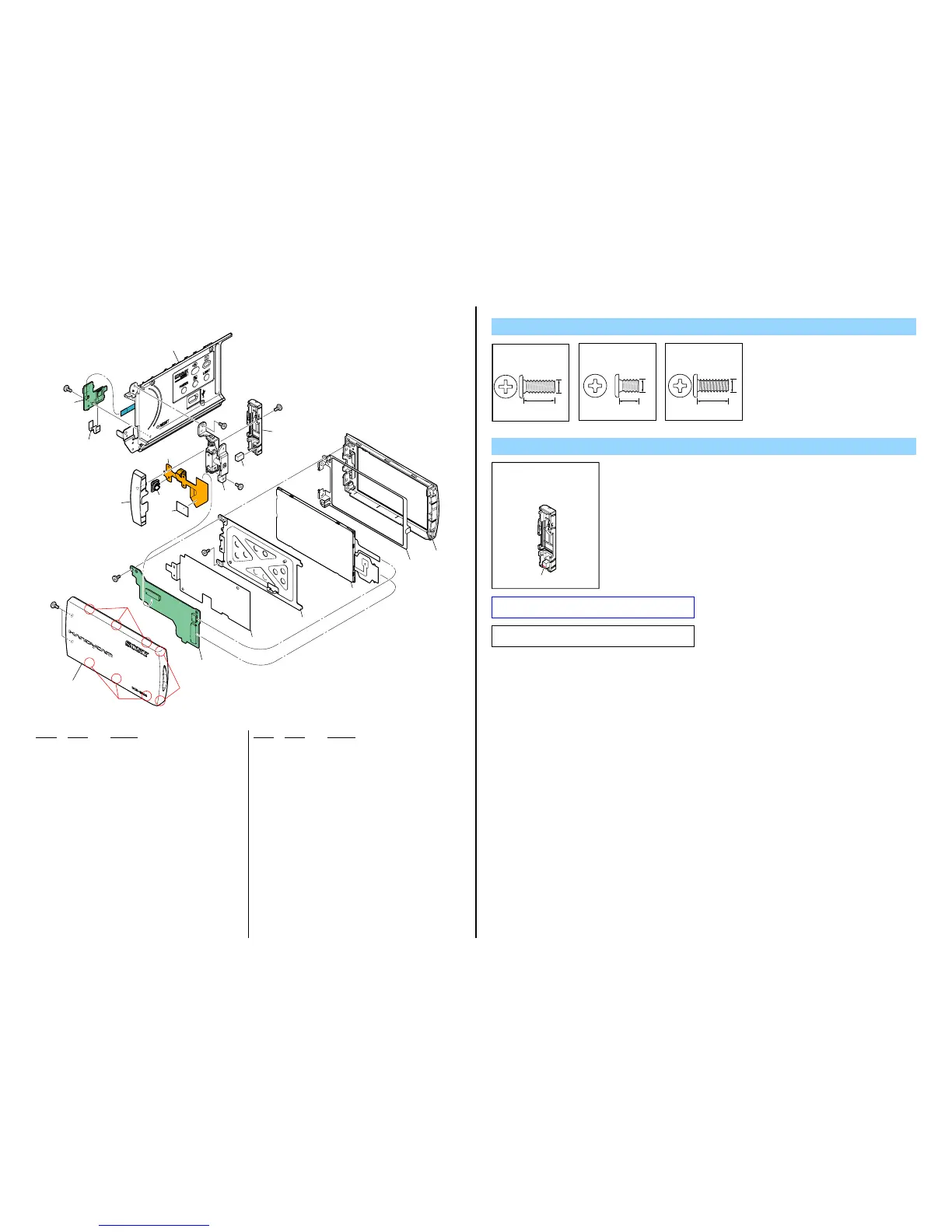

2-1-5. CABINET R SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
201 A-1750-477-A CABINET (C) ASSY (327), P (SR68 (SILVER)/
SR68E (SILVER))
201 A-1750-478-A CABINET (C) ASSY (327, R), P (SR68 (RED)/
SR68E (RED))
201 A-1750-479-A CABINET (C) ASSY (327, L), P (SR68 (BLUE)/
SR68E (BLUE))
201 A-1750-480-A CABINET (C) ASSY (327, 88), P (SR88/SR88E)
201 A-1750-481-A CABINET (C) ASSY (327, 78), P (SR78E)
201 A-1750-482-A CABINET (C) ASSY (327, 58), P (SR58E)
202 A-1751-597-A PD-404 BOARD, COMPLETE
203 4-156-234-01 SHEET (327), PROTECTION
204 4-155-792-01 FRAME (327), LCD
205 4-155-790-01 PLATE (327), LCD GROUND
206 4-155-789-01 CABINET (M (327)), P
207 4-155-795-01 COVER (M (327)), HINGE
208 1-471-504-11 MAGNET (ND5X3.5X2.4-B) (Note 1)
209 X-2514-585-1 HINGE Y (B) ASSY, 10 STYLE
210 1-881-061-11 FP-1239 FLEXIBLE BOARD (Note 2)
* 211 3-083-393-01 TAPE (P)
* 212 4-166-451-01 CLAMP, FLEXIBLE
213 4-155-794-01 COVER (C (327)), HINGE (SR58E/SR68 (SILVER)/
SR68E (SILVER)/SR78E/SR88/SR88E)
213 4-155-794-11 COVER (C (327)), HINGE (SR68 (RED)/
SR68E (RED))
213 4-155-794-21 COVER (C (327)), HINGE (SR68 (BLUE)/
SR68E (BLUE))
214 A-1750-472-A CABINET (R) ASSY (327) (SR58E/SR68 (SILVER)/
SR68E (SILVER)/SR78E/SR88/SR88E) (Note 3)
214 A-1750-473-A CABINET (R) ASSY (327, R) (SR68 (RED)/SR68E
(RED)) (Note 3)
214 A-1750-474-A CABINET (R) ASSY (327, L) (SR68 (BLUE)/SR68E
(BLUE)) (Note 3)
215 A-1750-998-A OC-024 BOARD, COMPLETE
216 1-837-061-11 FLEXIBLE FLAT CABLE (FFC-226)
LCD901 A-1748-996-A FTS BLOCK ASSY 27STMG10
#2 2-635-562-31 SCREW (M1.7)
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2
#11 3-078-890-11 SCREW, TAPPING
PD-404
#11
#2
#3
#11
#2
#2
#2
201
(Claw)
(Claw)
(Claw)
LCD901
202
213
209
211
210
(Note 2)
(Note 3)
212
203
204
205
206
208
(Note 1)
207
214
215
216
Screw
#2: M1.7 X 4.0
(Black)
2-635-562-31
4.0
1.7
Note
Note 2: Refer to “Assembly-3: The methode of attachment of
FP-1239 Flexible Board”.
#3: M1.7 X 2.5
(Red)
2-660-401-01
2.5
1.7
#11: M1.7 X 4.0 (Tapping)
(Silver)
3-078-890-11
4.0
1.7
Note 1:
Put the marking side
together on the position
of figure when
you install the magnet.
Marking
Note 3: CONTROL SWITCH BLOCK (SK33100) is supplied in
CABINET (R) ASSY.
