DCR-SR58E/SR68/SR68E/SR78E/SR88/SR88E_L2
2-3

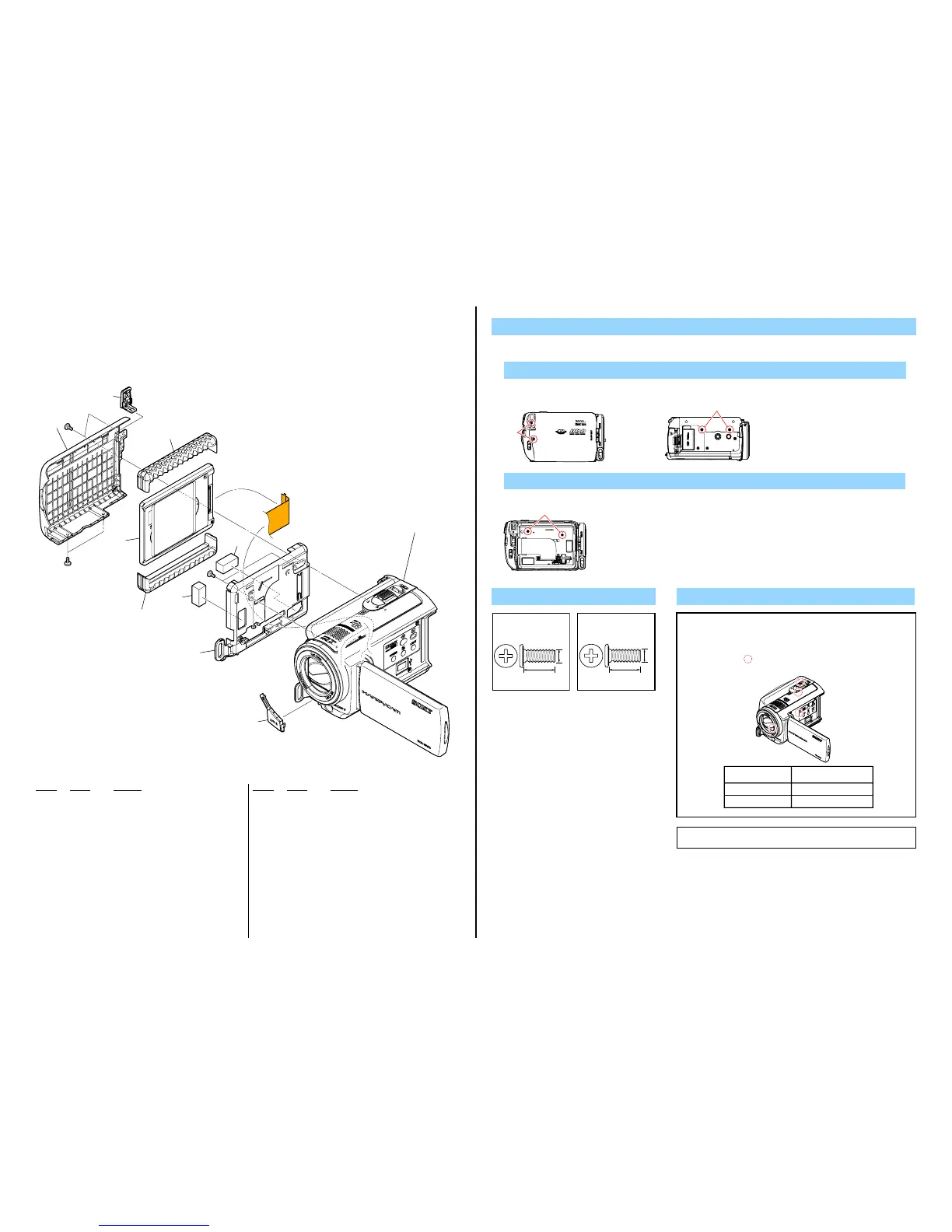

2-1. EXPLODED VIEWS
2-1-1. HDD SECTION
Ref. No. Part No. Description
Ref. No. Part No. Description
1 4-155-772-01 LID (327), HDD (SR58E/SR68 (SILVER)/SR68E
(SILVER)/SR78E/SR88/SR88E)
1 4-155-772-11 LID (327), HDD (SR68 (RED)/SR68E (RED))
1 4-155-772-21 LID (327), HDD (SR68 (BLUE)/SR68E (BLUE))
2 X-2515-196-1 COVER ASSY (327), DC (SR58E/SR68(SILVER)/
SR68E (SILVER)/SR78E/SR88/SR88E)
2 X-2541-585-1 COVER ASSY (327, R), DC (SR68 (RED)/
SR68E (RED))
2 X-2541-586-1 COVER ASSY (327, L), DC (SR68 (BLUE)/
SR68E (BLUE))
3 4-157-242-01 DAMPER B (1), 10STYLE (Note 2)
4 1-840-366-21 HDD (MK8034GAL-80GB) _MASSPRO (SR58E/
SR68/SR68E)
4 1-840-367-21 HDD (MK1234GAL-120GB) _MASSPRO (SR78E/
SR88/SR88E)
5 4-134-206-01 GASKET (OG)
6 4-155-771-01 HOLDER (327), HDD (SR58E/SR68 (SILVER)/
SR68E (SILVER)/SR78E/SR88/SR88E)
6 4-155-771-11 HOLDER (327), HDD (SR68 (RED)/SR68E (RED)/
SR68 (BLUE)/SR68E (BLUE))
7 X-2515-197-1 COVER ASSY (327), AV JACK (SR58E/SR68
(SILVER)/SR68E (SILVER)/SR78E/SR88/SR88E)
7 X-2541-583-1 COVER ASSY (327, R), AV JACK (SR68 (RED)/
SR68E (RED))
7 X-2541-584-1 COVER ASSY (327, L), AV JACK (SR68 (BLUE)/
SR68E (BLUE))
#2 2-635-562-31 SCREW (M1.7) (Note 1)
#10 2-599-475-31 SCREW (M1.7) (Note 1)
1. Remove to numerical order (1 to 3) in the left figure.
DISASSEMBLY
1 #2 / #10 X 4
3 #2 / #10 X 2
Screw
#2: M1.7 X 4.0
(Black)
2-635-562-31
4.0
1.7
#2
Left View
#2
#10
Left View Bottom View
#2
#10
#2
#10
(Note 1)
#2
#10
(Note 1)
#2
Top Cabinet Section
(See page 2-4)
1 1
2 4
2
3
(Note 2)
3
(Note 2)
5
5
3 6
7
Note
Note 2: Direction of installation of 10 Style Damper B (1) as shown in the
figure.
#10: M1.7 X 4.0
(Silver)
2-599-475-31
4.0
1.7
Note 1:
THE COMBINATION OF CABINET’S
COLOR AND SCREW
Screw's
Ref. No. (Parts Color.)
#10 (Silver) SILVER
#2 (Black) RED/BLUE
Cabinet's Color
Table 2-1
The screw pointed is different according to the cabinet's color.
For the combination of cabinet's color and screw, please refer to Table 2-1.
The changed portions from
Ver. 1.1 are shown in blue.
Ver. 1.2 2010.02
