Sony DCR-TRV22 - Disassembly

2-1
SECTION 2
DISASSEMBLY
DCR-TRV22/TRV22E
COVER
COVER
HELP
HELP

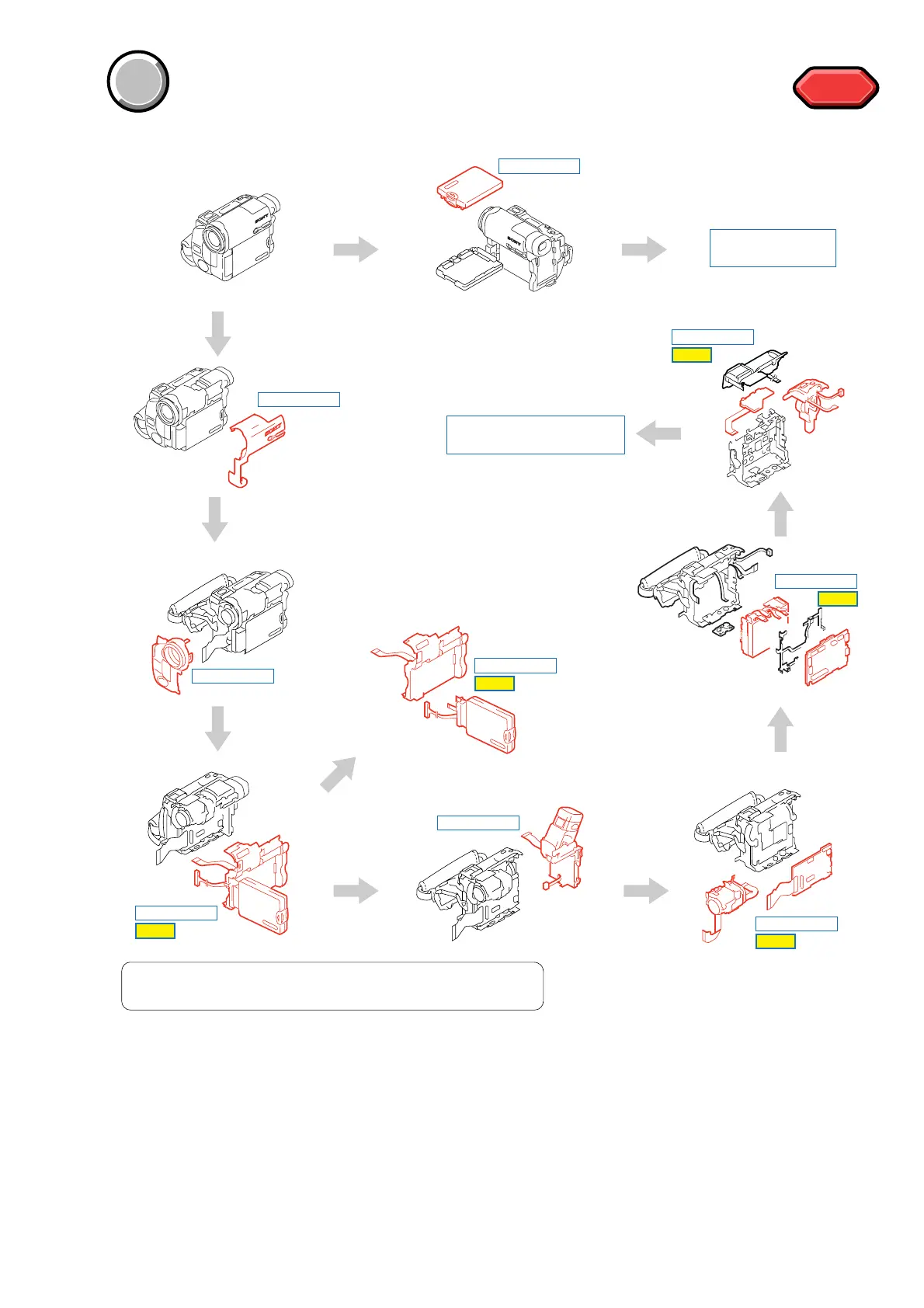

The following flow chart shows the disassembly procedure.
1 2-2. CABINET (R) COVER (39E) ASSEMBLY ........
2 2-3. F PANEL SECTION ........................................
3 2-5. CABINET (R) SECTION ...................................
4 2-10. BT PANEL/EVF SECTION ...........................
5 2-14. VA-118 BOARD, LENS SECTION ................
6 2-16. MECHANISM DECK, VC-312 BOARD (1) ....
7 2-17. MECHANISM DECK, VC-312 BOARD (2) ....
8 2-18. CABINET (G) ASSEMBLY (40E) ...................
9 2-19. CONTROL SWITCH BLOCK (FK-CX4000)....
0 2-20. JK-242 BOARD .............................................
qa SERVICE POSITION TO CHECK
THE VTR SECTION................................................
(page 2-4)
(page 2-5)
(page 2-7)
(page 2-11)
(page 2-15)
(page 2-16)
(page 2-17)
(page 2-17)
(page 2-18)
(page 2-18)
(page 2-19)
PD-188 board
service position
SERVICE POSITION TO
CHECK THE VTR SECTION
DISASSEMBLY
DISASSEMBLY
DISASSEMBLY
DISASSEMBLY
DISASSEMBLY
DISASSEMBLY
DISASSEMBLY
HELP
DISASSEMBLY
HELP
DISASSEMBLY
HELP
HELP
HELP
PROCEDURE OF REMOVING THE MECHANISM DECK.
(VTR CHECK SERVICE POSITION)
