— 12 —
DCR-TRV238E/TRV239E

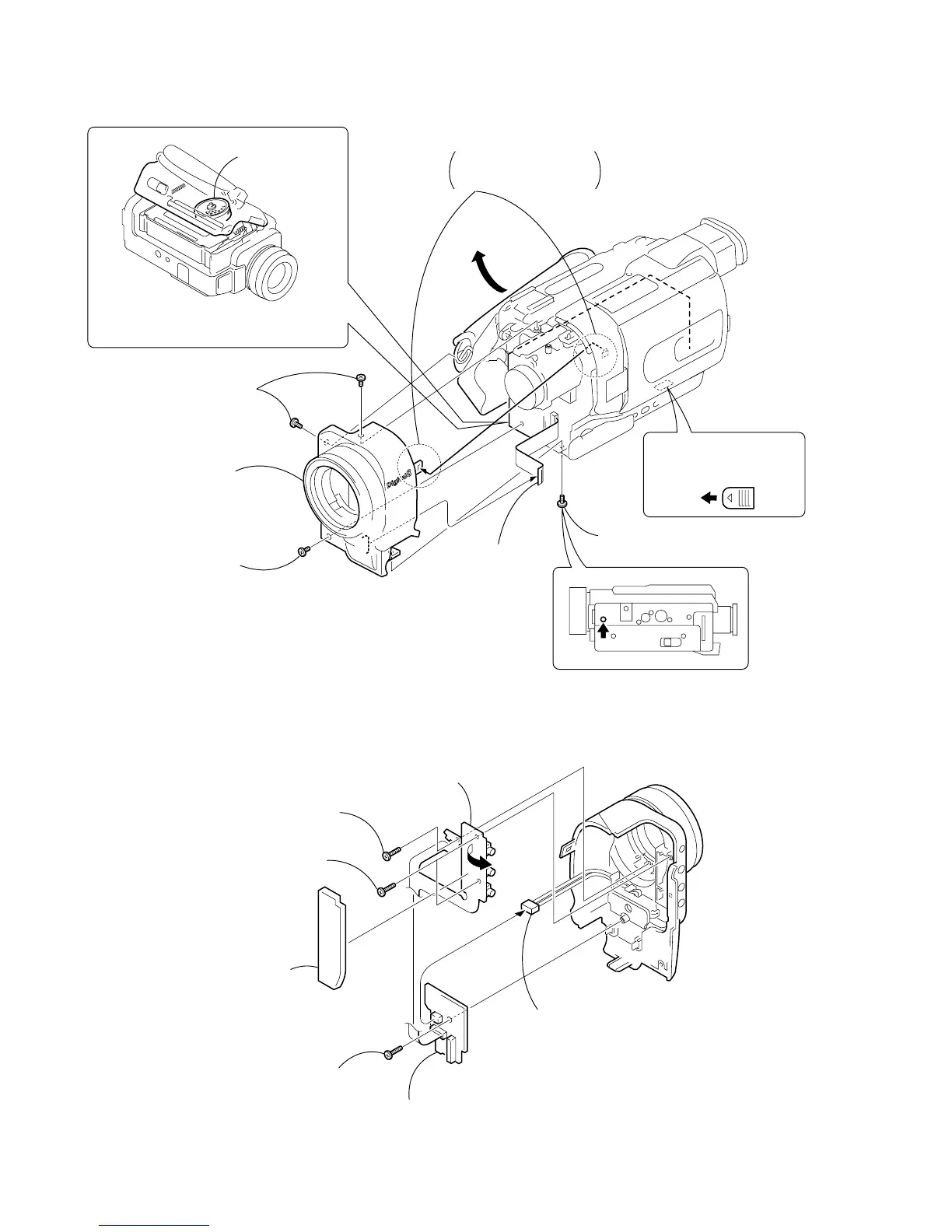

2-3. FRONT PANEL SECTION
2-4. SI-032 BOARD
1
When removing Front panel section, do not
press down the drum of mechanism deck.
The drum of
mechanism deck.
2 MI screw
(M2 × 4) (H)
3 MI screw
(M2 × 4) (H)
6 FP-406 flexible
board (30P)
4 Tw o MI screws
(M2 × 4) (H)
Push the eject knob in
the direction of the arrow A ,
and open the cassette lid.
A
7
Front panel section
5 Claw
Remove it while taking
care as the FP-406 flexible
cable is connected.
B
7 SI-032 board
1 Cushion (1), F
3 Tapping screw
(M1.7
× 5)
2 Two tapping screws
(M1.7
× 5)
6 Tapping screw
(M1.7
× 5)
4 Remove the FP-411 flexible board
in the direction of the arrow
B .
5 Microphone
(4P)
