1 Place the front speakers at an angle of
45 degrees from your listening
position.
* DHC-AZ7DM only
2 Place the center speaker at about the
same height as the front speakers.
Align the center speaker with the front
speakers or place it slightly behind the front
speakers.
3 Place the surround speakers.
Position the surround speakers within the
respective gray ranges.
Positioning both surround speakers the
same distance from the listening position is
effective.
4 Place the subwoofer.
To obtain a better bass reproduction, we
recommend you to place the subwoofer on
a solid floor where resonance is unlikely to
occur.
Notes
• Do not place the surround speakers on top of a TV.*
This may cause distortion of the colors in the TV
screen.
• Always place the subwoofer vertically, keeping it a
few centimeters away from the wall.*
• If the subwoofer is placed in the center of a room, the
bass could be extremely weakened.* This is due to
the influence of the standing wave of the room. If this
happens, move the subwoofer away from the center
of the room or eliminate the cause of the standing
wave, by placing a bookshelf against the wall, etc.
* DHC-AZ7DM only
To install the surround speakers
on the wall (DHC-AZ7DM only)
1 Prepare screws (not supplied) that are
suitable for the hole on the back of each
speaker. See the illustrations below.
2 Fasten the screws to the wall.
The screws should protrude 5.5 to 7 mm.

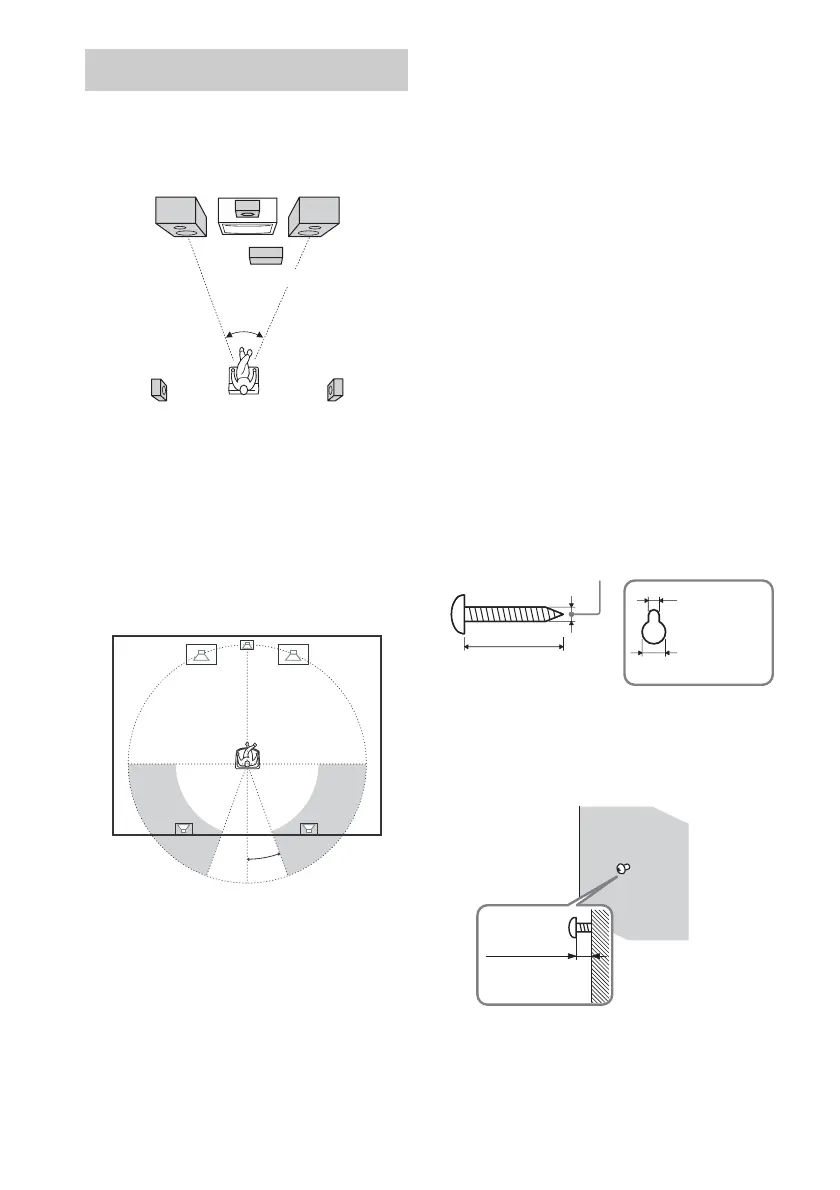

Positioning the speakers
45˚
Front
speaker
(R)
Surround speaker
(L)*
Surround speaker
(R)*
Front
speaker
(L)
Center speaker*
Subwoofer*
20˚
more than 25 mm
4 mm
5.3 mm
9 mm
Hole on the back of
the speaker
5.5 to 7 mm
