GETTING STARTED

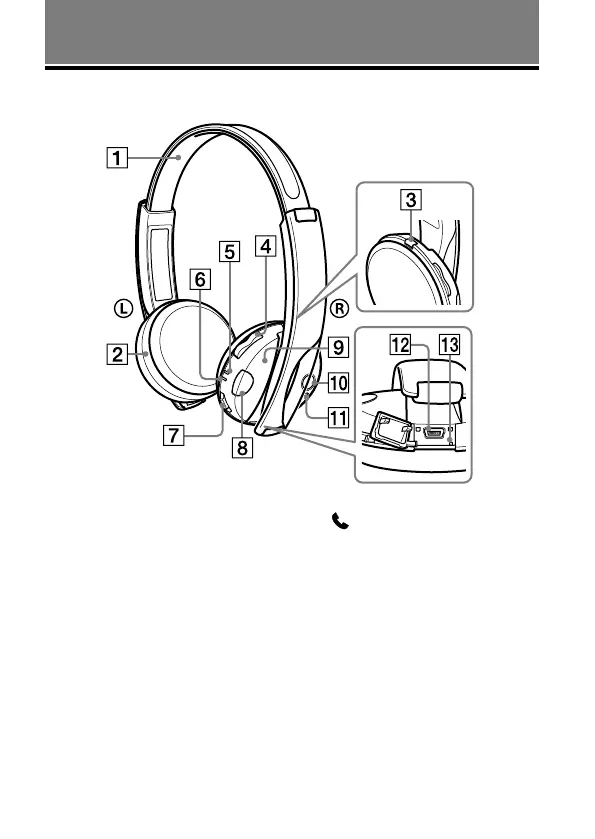

Location and Function of Parts
 Headband
 Left () unit
 PAIRING button
 VOL (volume) +*⁄– buttons
 Indicator (blue)
Indicates the communication
status of the unit.
 Indicator (red)
Indicates the power status of the
unit.
 Jog switch
Controls various functions when
listening to music.
 Multi function button
Controls various call functions.
 Right () unit
 POWER button
 Microphone
 USB(

) jack
 RESET button
* This button has a tactile dot.
