5-7
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSC-H2_L2
ns
MIC9001
ST section
(See page 5-8)
202
203
204
206
205
208
210
209
207
202
201
202
202
216
218
202
211
212
202
215
217
214
213

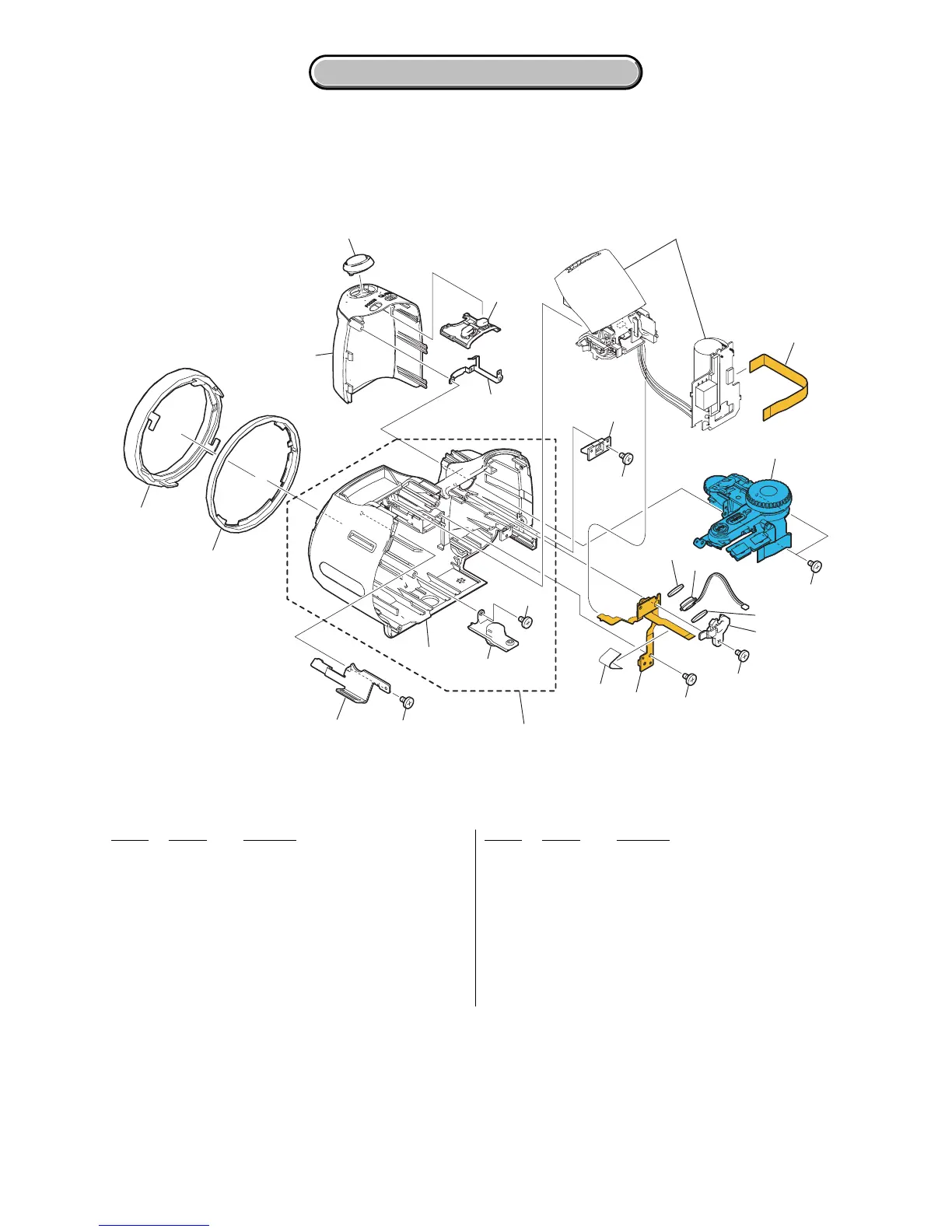

5-1-5. CABINET (FRONT) SECTION
ns : not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
201 X-2108-906-1 CABINET (FRONT) ASSY
202 3-080-204-11 SCREW, TAPPING, P2
203 2-673-230-01 SCREW, TRIPOD
* 204 2-673-328-01 SHEET METAL (R), STRAP
205 2-673-324-01 RING, ORNAMENTAL
206 2-673-323-01 RING, LENS
207 2-673-325-01 GRIP
208 X-2108-325-1 RELEASE ASSY
209 2-673-301-01 BUTTON, FB
* 210 2-673-305-01 PLATE, GRIP GROUND
* 211 2-673-302-01 HOLDER, AF
212 1-831-558-11 FLEXIBLE FLAT CABLE (ST-003)
213 1-479-699-11 SWITCH BLOCK, CONTROL
* 214 2-673-335-01 CUSHION, MICROPHONE
* 215 2-673-334-01 HOLDER, MICROPHONE
216 A-1176-913-A AF-105 FLEXIBLE BOARD
* 217 2-678-097-01 CUSHION (B), MICROPHONE
* 218 2-672-563-01 SHEET (LNS), RADIATION
MIC9001 1-542-618-21 MICROPHONE
