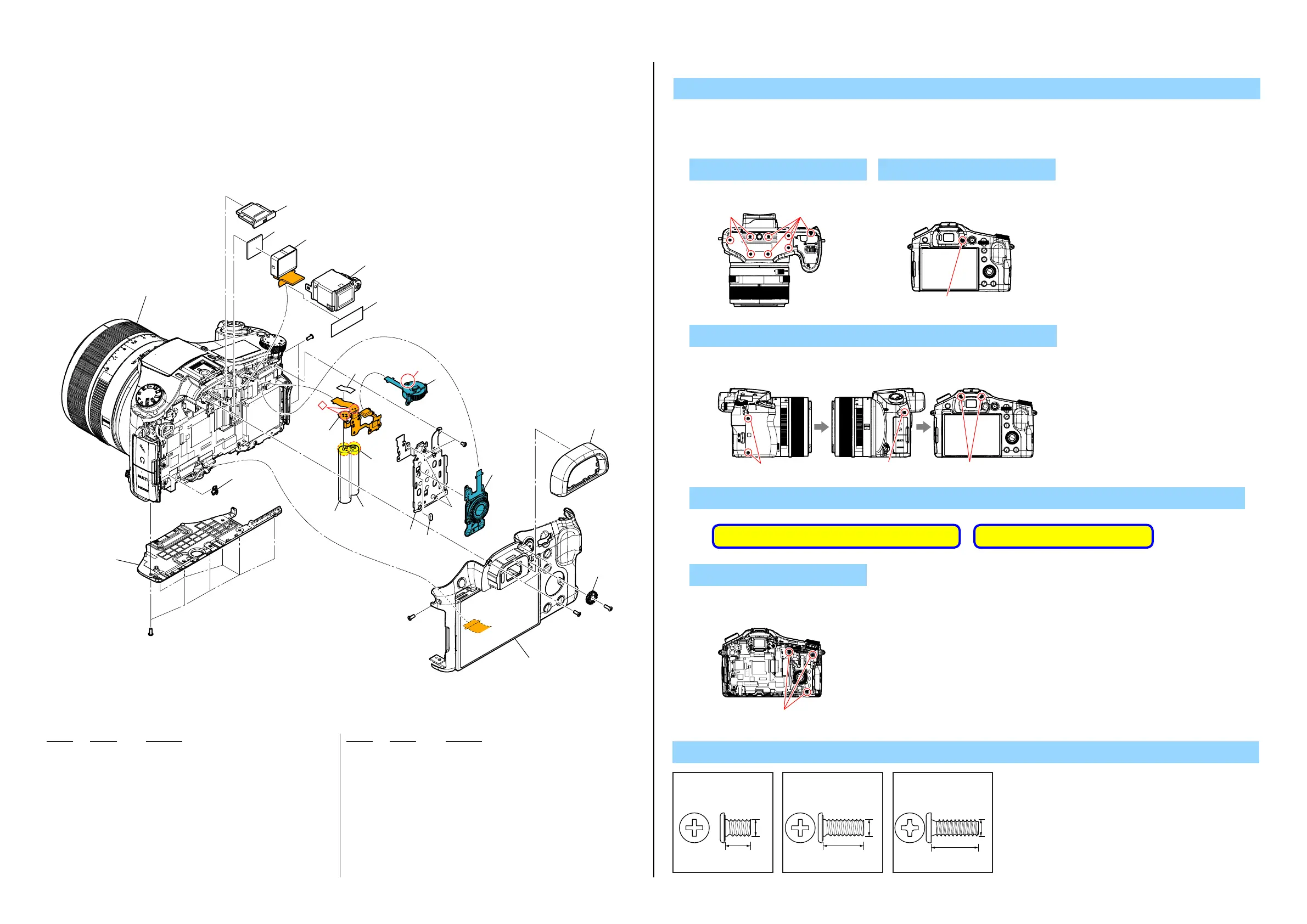

2-1. EXPLODED VIEWS
2-1-1. OVERALL SECTION
Ref. No. Part No. Description
Ref. No. Part No. Description
1 4-478-910-01 LIGHT, JK GUIDE,
2 4-478-898-01 BOTTOM, CABINET
3 4-478-919-01 RUBBER (63720), EYE CUP
4 4-478-897-01 KNOB, VISIBILITY ADJUSTMENT
5 1-492-592-11 SWITCH BLOCK, CONTROL (BK77900)
6 4-527-984-01 GASKET (SW BASE)
* 7 4-478-900-01 SHEET METAL, SW BASE
8 A-1973-078-A FC-1002 FLEXIBLE BOARD, COMPLETE
9 1-492-683-11 CONTROL SWITCH BLOCK (ENSW63720)
10 4-438-734-01 SHOE CAP (875)
11 4-478-948-01 SHEET, VF RADIATION
12 X-2588-236-1 VF UNIT ASSY
13 4-411-332-01 TAPE (AS (C))
14 4-480-644-01 SHEET (FC)
 C901 1-118-124-11 ELECT 67uF 315V
*C902 1-116-488-11 ELECT 47.5uF 315V
LCD902 8-753-379-22 ECX333AA-1
#1 2-635-562-11 SCREW (M1.7)
#2 2-635-562-31 SCREW (M1.7)
#12 3-080-204-21 SCREW, TAPPING, P2
1. Remove in numerical order (1 to 9) in the left figure.
2. The meaning of the symbol in left figure is as follows. Be careful when you remove it.
◇-X: Solder
DISASSEMBLY
Screw
#1: M1.7 X 2.5
(Black)
2-635-562-11
2.5
1.7
#2: M1.7 X 4.0
(Black)
2-635-562-31
4.0
1.7
#12: M1.7 X 5.0 (Tapping)
(Black)
3-080-204-21
1.7
5.0
(Claw)
C901
C902
1
4
5
10
13
11
12
7
6
9
14
3
2
#2
#2
LCD902
#2
#2
#12
#1
Rear Cabinet Section
(See page 2-10)
Main Board Section
(See page 2-5)
1
5
7
6
8
8
9
3
2
4
2 #2 X 8
#2#2
Bottom View
3 #12 X 1
#12
Back View
4 #2 X 5
#2
#2
#2
Left View Right View Back View
5
DISCHARGING OF THE CHARGING CAPACITOR
ストロボ用充電コンデンサの放電
7 #1 X 3
#1
Back View
