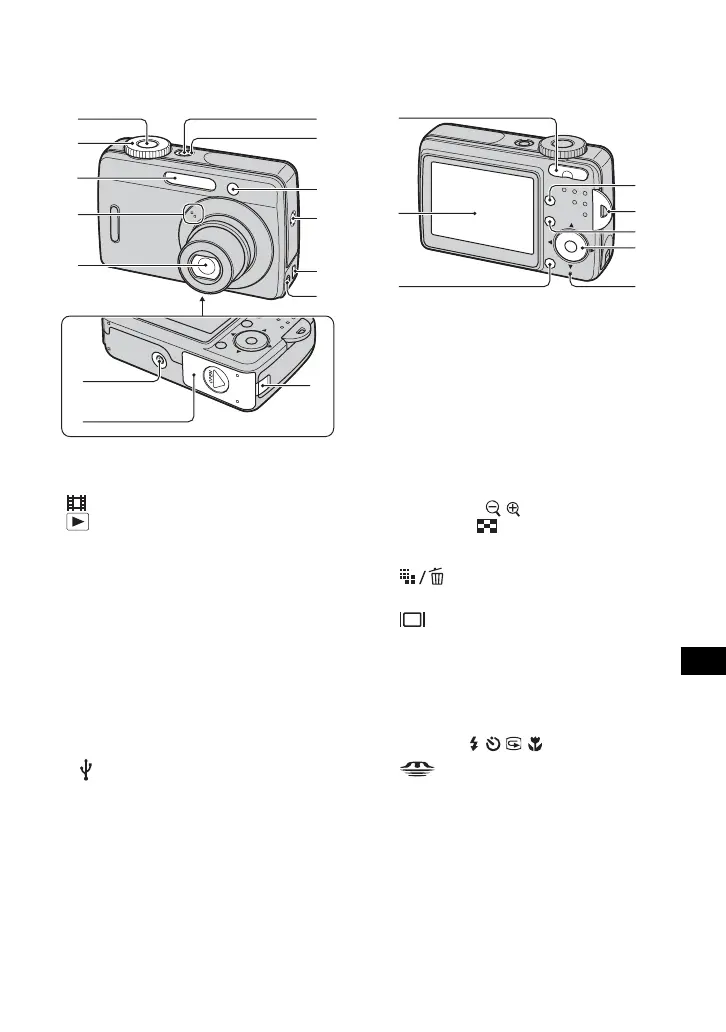

Identifying parts
A Shutter button (15)
B Mode dial
: To shoot movies
: To view or edit images
• For details on modes available to shoot still
images, see “To shoot an image using the
mode dial” (page 16).
C Flash (17)
D Microphone
E Lens
F POWER button (13)
G POWER lamp (13)
H Self-timer lamp (17)
I Buzzer
J (USB) jack (21)
K A/V OUT jack (19)
L Tripod receptacle
• Use a tripod with a screw length of less than
5.5 mm (7/32 inch). You will be unable to
firmly secure the camera to tripods having
screws longer than 5.5 mm (7/32 inch), and
may damage the camera.
M Battery/“Memory Stick Duo” cover (10)
N AC Adaptor cord cover
O For shooting: Zoom (W/T) button (16)
For viewing: / (Playback zoom)
button (19)/ (Index) button (19)
P LCD screen (7)
Q (Image Size/Delete) button (14,
18)
R (Screen status) button
S Hook for wrist strap (10)
T MENU button (13)
U Control button (13, 17, 18)
Menu on: v/V/b/B/
z
Menu off: / / /
V Access lamp (12)
16
2
7
3
4
5
9
8
q;
qa
qs
qd
qf
qh
qj
qg
ql
qk
w;
wa
ws
