Sony DSC-T30 - Lcd Panel

2-4E
DSC-T30_L2

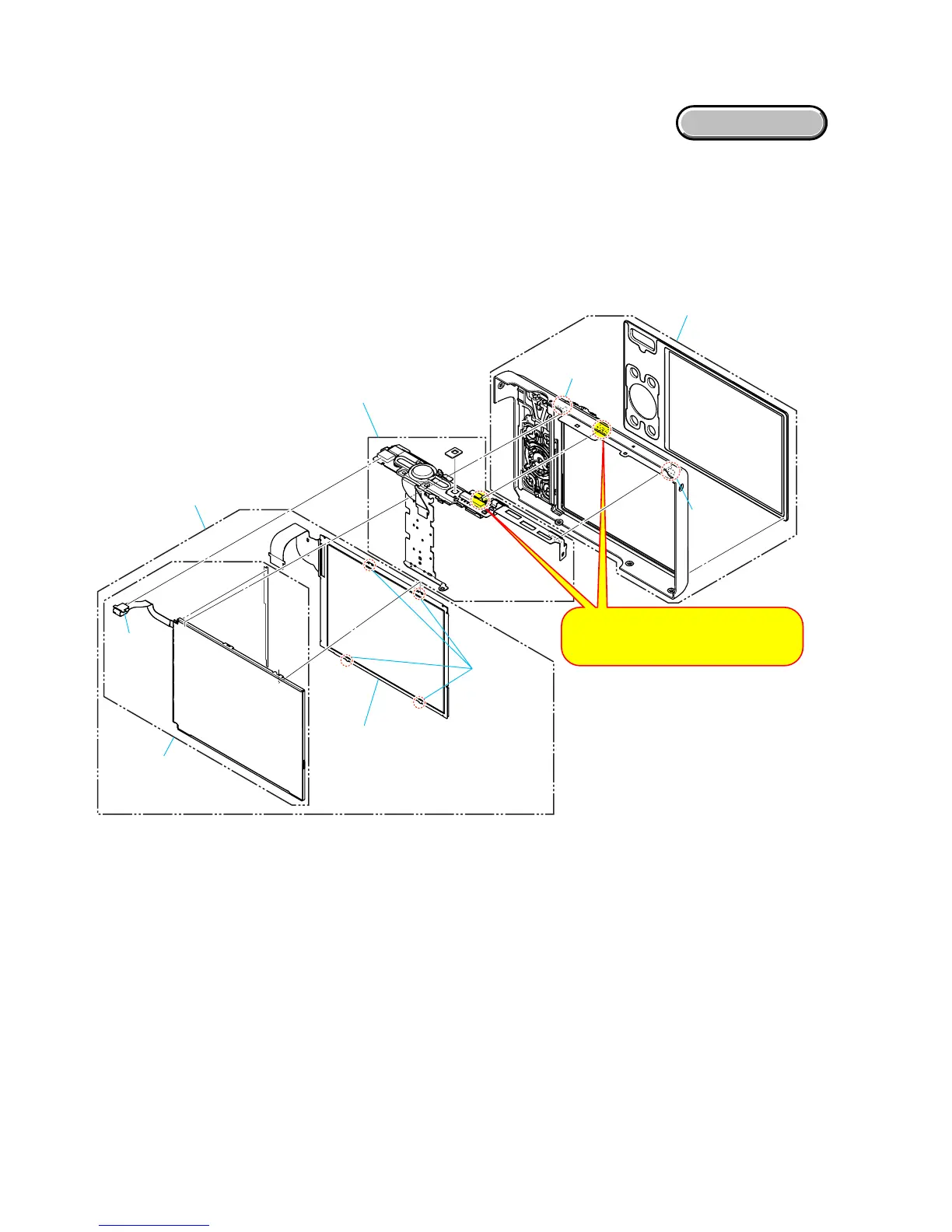

EXPLODED VIEW
2-1-3. CABINET (REAR) BLOCK
Follow the disassembly in the numerical order given.
1 LCD Panel (1-1 to 1-5)
2 RL Block Assy (2-1 to 2-2)
2 RL Block Assy
1 LCD Panel
2-1 (Claw)
2-2
1-2 (Claw)
1-4 (Claw)
1-3
1-5
1-1
Note:On installation of the RL block assy,
adjust the position of the mode switch
and the mode knob.
