Sony DSC-T30 - Exploded Views

5-2
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSC-T30_L2
Ref. No. Part No. Description Ref. No. Part No. Description
1 X-2109-426-1 CABINET (FRONT) ASSY (SILVER)
1 X-2109-427-1 CABINET (FRONT) ASSY (BLACK)
* 2 2-679-556-01 SHEET, SY INSULATING
3 A-1167-020-A LSV-1110A (SERVICE USE)
* 4 2-679-560-01 SHEET, LENS INSULATING
5 A-1182-721-A CCD BLOCK ASSY
(including CD-614 flexible board and
IC001 (CCD imager)) (Note)
* 6 2-683-865-01 CUSHION, CD
#18 2-635-591-21 SCREW (M1.4), NEW TRUSTAR P2 (Silver)
#29 2-662-396-01 SCREW (M1.4), NEW, TRUSTAR, P2 (Black)
#30 3-086-156-11 SCREW B1.2 (White)
DISASSEMBLY
HARDWARE LIST

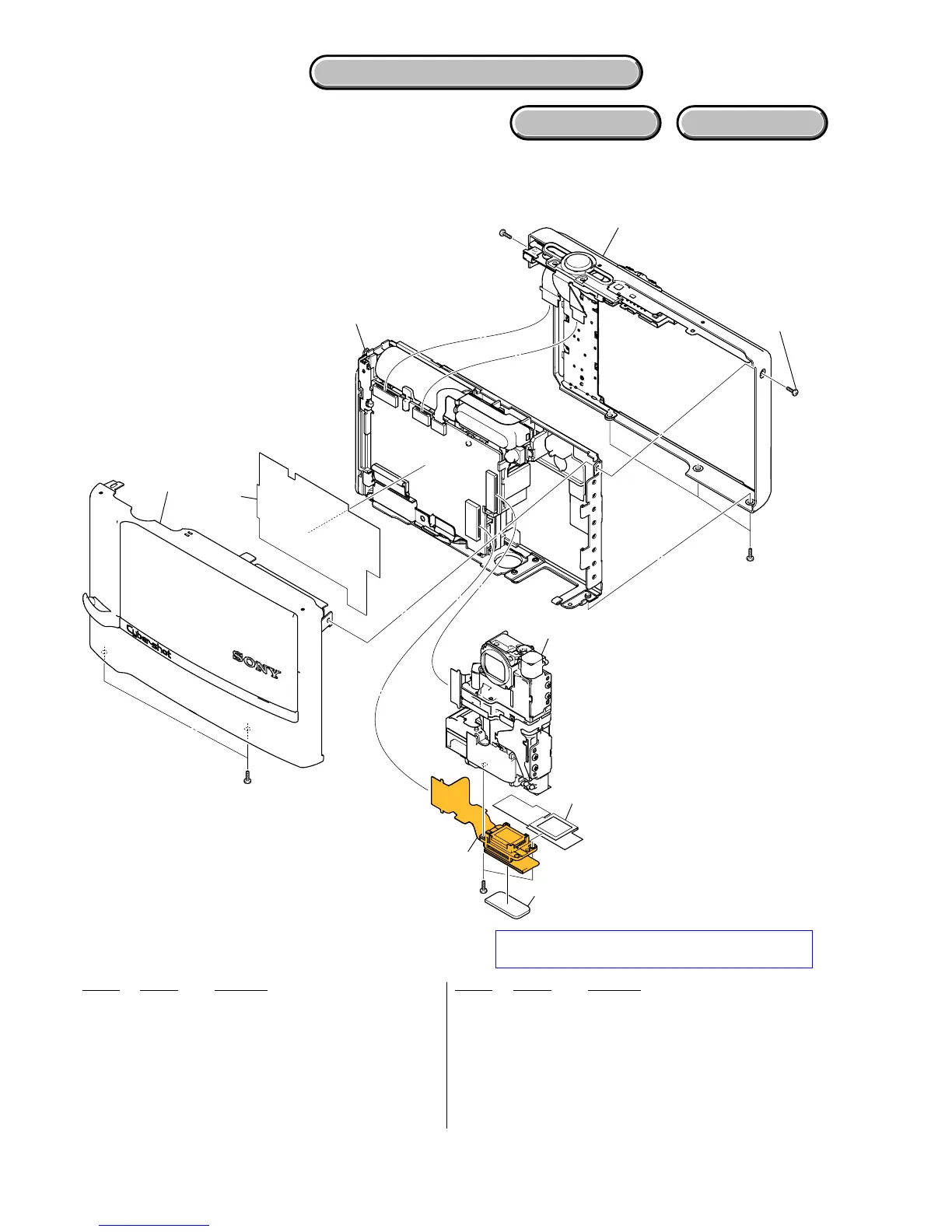

5-1-1. CABINET AND LENS SECTION
1
2
3
4
6
#18 (SILVER)
#29 (BLACK)
#30
#18 (SILVER)
#29 (BLACK)
#18 (SILVER)
#29 (BLACK)
#18 (SILVER)
#29 (BLACK)
Battery Holder Block
(See page 5-3)
Cabinet (Rear) Block
(See page 5-4)
5
(including CD-614 flexible board and
IC001 (CCD imager)) (Note)
5-1. EXPLODED VIEWS
Note: Be sure to read “Precautions for Replacement of
Imager” on page 4-3 when changing the imager.
