5-3
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSC-T30_L2
SY-149
MC-160
ST-135
51
53
54
55
56
57
59
58
#18
ns
BT002
! : BT002 (BATTERY, LITHIUM SECONDARY)
Board on the mount position.
(See page 4-23)
ns
C901
52
(including CN001 (multi connector)
and SP901 (loud speaker))
Ref. No. Part No. Description Ref. No. Part No. Description
* 51 2-679-558-01 PLATE, MC
52 A-1181-186-A MC-160 FLEXIBLE BOARD, COMPLETE
(including CN001 (multi connector)
and SP901 (loud speaker))
53 A-1192-560-A SY-149 BOARD, COMPLETE (SERVICE) (GP1)
53 A-1192-561-A SY-149 BOARD, COMPLETE (SERVICE) (GP2)
53 A-1192-562-A SY-149 BOARD, COMPLETE (SERVICE) (GP3)
53 A-1192-563-A SY-149 BOARD, COMPLETE (SERVICE) (GP4)
54 A-1181-188-A BT-030 FLEXIBLE BOARD, COMPLETE
* 55 2-679-561-01 CUSHION, AF
56 X-2109-419-1 HOLDER ASSY, BATTERY (SILVER)
56 X-2109-420-1 HOLDER ASSY, BATTERY (BLACK)
57 A-1181-185-A ST-135 FLEXIBLE BOARD, COMPLETE
0 58 1-478-621-11 FLASH UNIT
* 59 2-679-554-01 SHEET, ST
0* BT002 1-756-566-11 BATTERY, LITHIUM SECONDARY
0* C901 1-114-138-11 ELECT 106uF 315V
#18 2-635-591-21 SCREW (M1.4), NEW TRUSTAR P2 (Silver)
DISASSEMBLY
HARDWARE LIST

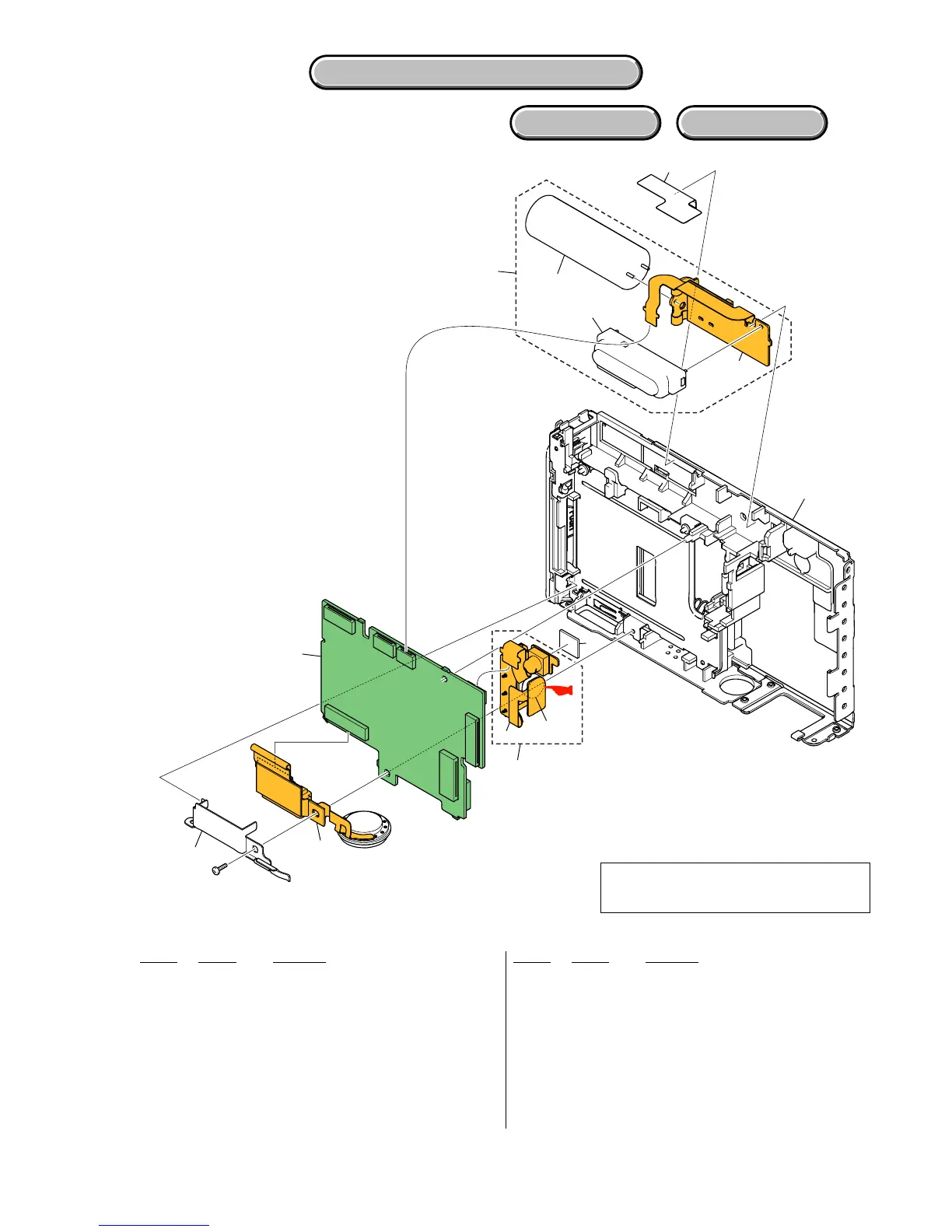

5-1-2. BATTERY HOLDER BLOCK
ns: not supplied
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
• Refer to page 5-1 for mark 0.
* Refer to the table of page 5-1 about language of SY-149 board.
