5-4
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSC-T30_L2
DISASSEMBLY

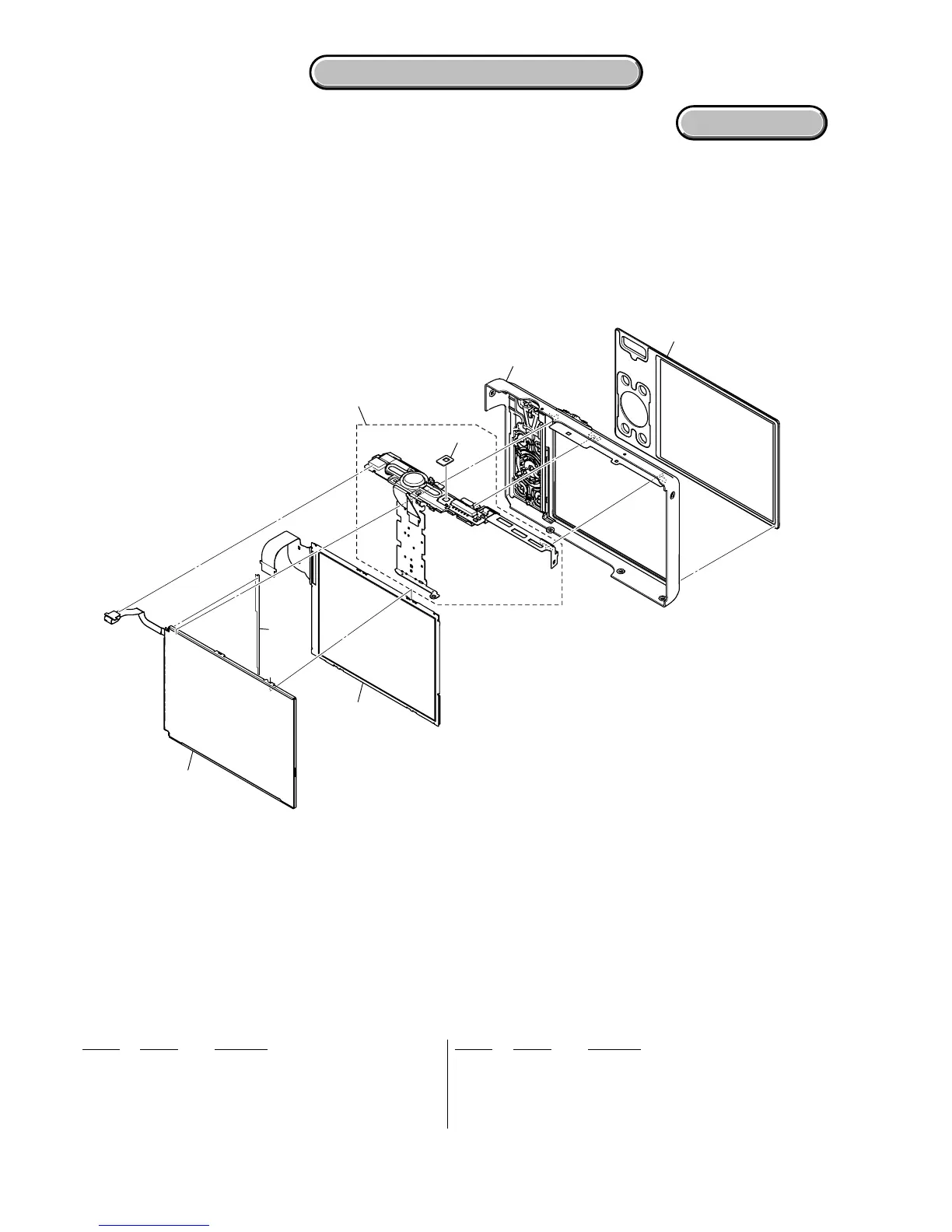

5-1-3. CABINET (REAR) BLOCK
Ref. No. Part No. Description
Ref. No. Part No. Description
* 101 2-679-557-01 SHEET (PANEL), INTERCEPTION
102 A-1182-734-A RL BLOCK ASSY
(including RL-068 flexible board)
103 X-2109-430-1 CABINET (REAR) ASSY (SILVER)
103 X-2109-431-1 CABINET (REAR) ASSY (BLACK)
104 2-679-566-01 WINDOW, LCD
105 2-683-864-01 CUSHION, MIC
0 D901 1-479-700-11 BLOCK, LIGHT GUIDE PLATE (3.0)
LCD901 8-753-259-72 ACX548AK-1
• Refer to page 5-1 for mark 0.
101
103
105
104
D901
LCD901
102
(including RL-068 flexible board)
