2-5
DSC-V1

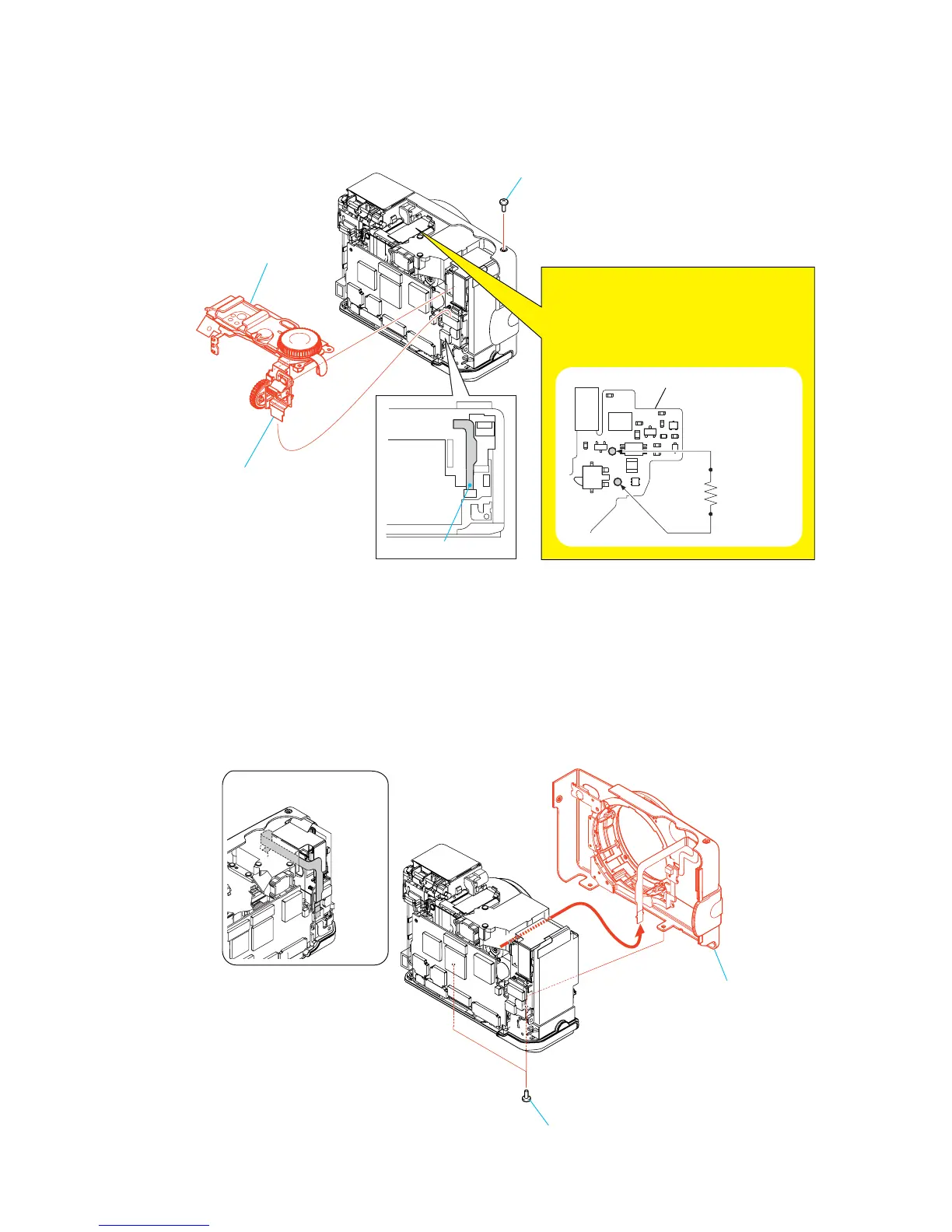

2-6. CABINET (FRONT) ASSEMBLY
1 Two screws (M1.7)
2 Cabinet (front) assembly
Processing the flexible board
2-5. CONTROL SWITCH BLOCK (MODE-51470)
R:1 kΩ/1 W
(Part code:
1-215-869-11)
ST-083 flexible board
LND390
LND391
2 Connector (CN704)
4 Control switch block
(MODE-51470)
Note: High-voltage cautions
Discharging the Capacitor
Short-circuit between the two points
of ST-083 flexible board with the short jig
about 10 seconds.
1 Harness (CN753)
3 Screw (M1.7)
To Next Page
