5-5
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSC-W100_L2
Ref. No. Part No. Description Ref. No. Part No. Description
151 A-1185-818-A SY-154 BOARD, COMPLETE (SERVICE) (GP2)
151 A-1187-402-A SY-154 BOARD, COMPLETE (SERVICE) (GP3)
151 A-1187-403-A SY-154 BOARD, COMPLETE (SERVICE) (GP4)
152 2-676-216-01 LID, BT (SILVER)
152 2-676-216-11 LID, BT (BLACK)
153 X-2109-613-1 ASSY, BTH PRE
0 154 A-1178-825-A DC-105 FLEXIBLE BOARD, COMPLETE
* 155 2-676-266-01 SUPPORT, DC FLEXIBLE
* 156 2-676-267-01 FRAME, MAIN
* 157 2-676-272-01 SUPPORT, SW
* 158 2-676-276-01 SHEET, LCD INSULATING
* 159 2-687-368-01 LABEL, FUSE RATING
0 BT901 1-780-061-21 BATTERY TERMINAL BOARD
MIC901 1-542-691-11 MICROPHONE BLOCK
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#5 3-080-204-01 SCREW, TAPPING, P2 (Black)
HARDWARE LIST
DISASSEMBLY

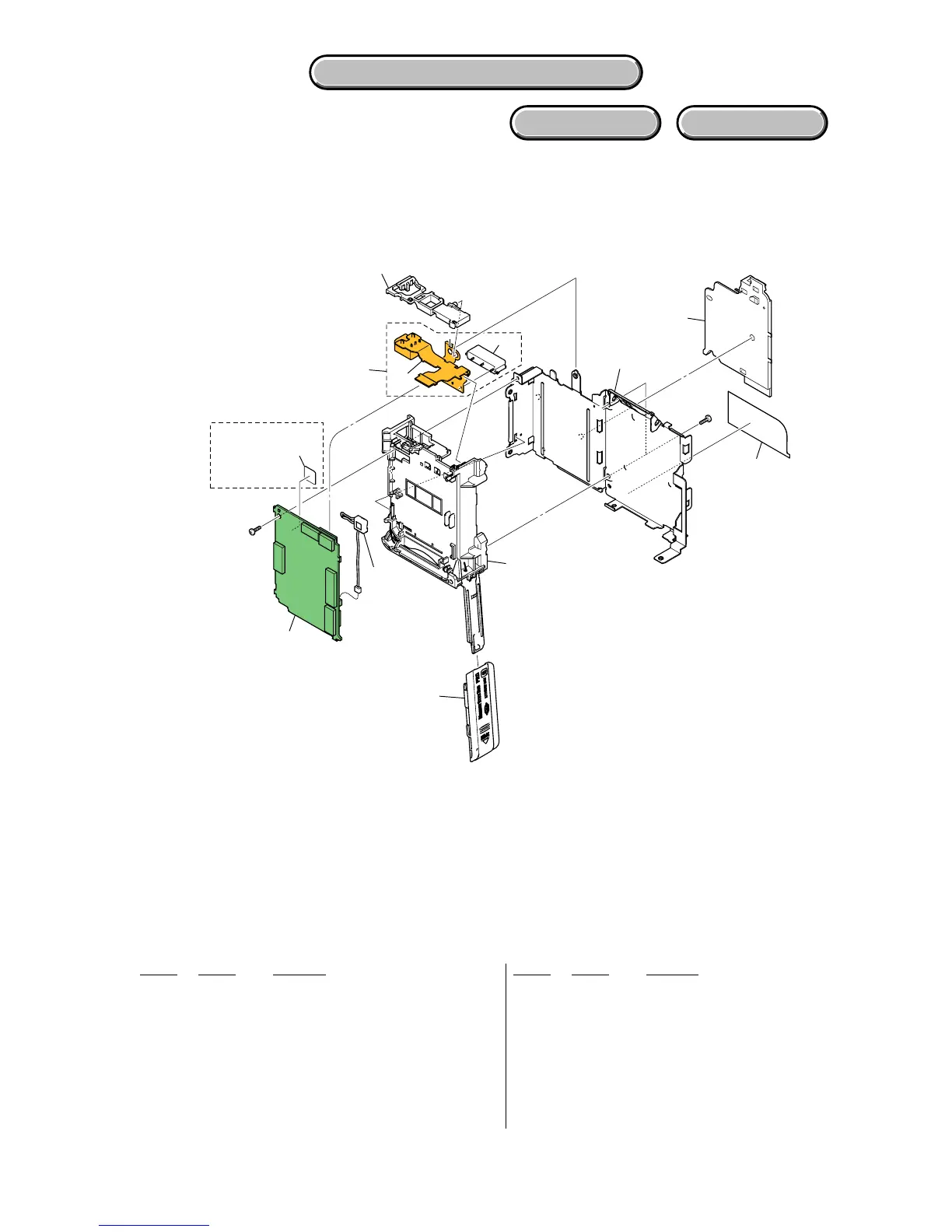

5-1-4. BT HOLDER SECTION
• Refer to page 5-1 for mark 0.
* Refer to the table of page 5-1 about language of SY-154 board.
SY-154
DC-105
151
159
152
153
154
155
156
157
158
MIC901
E (Middle east, Gulf)
BT901
#5
#3
ns
ns: not supplied
