207
206
205
209
210
211
212
213
202
(Note 3)
201
(Note 3)
203
(Note 3)
204
(Note 3)
ST-146
ns
ns

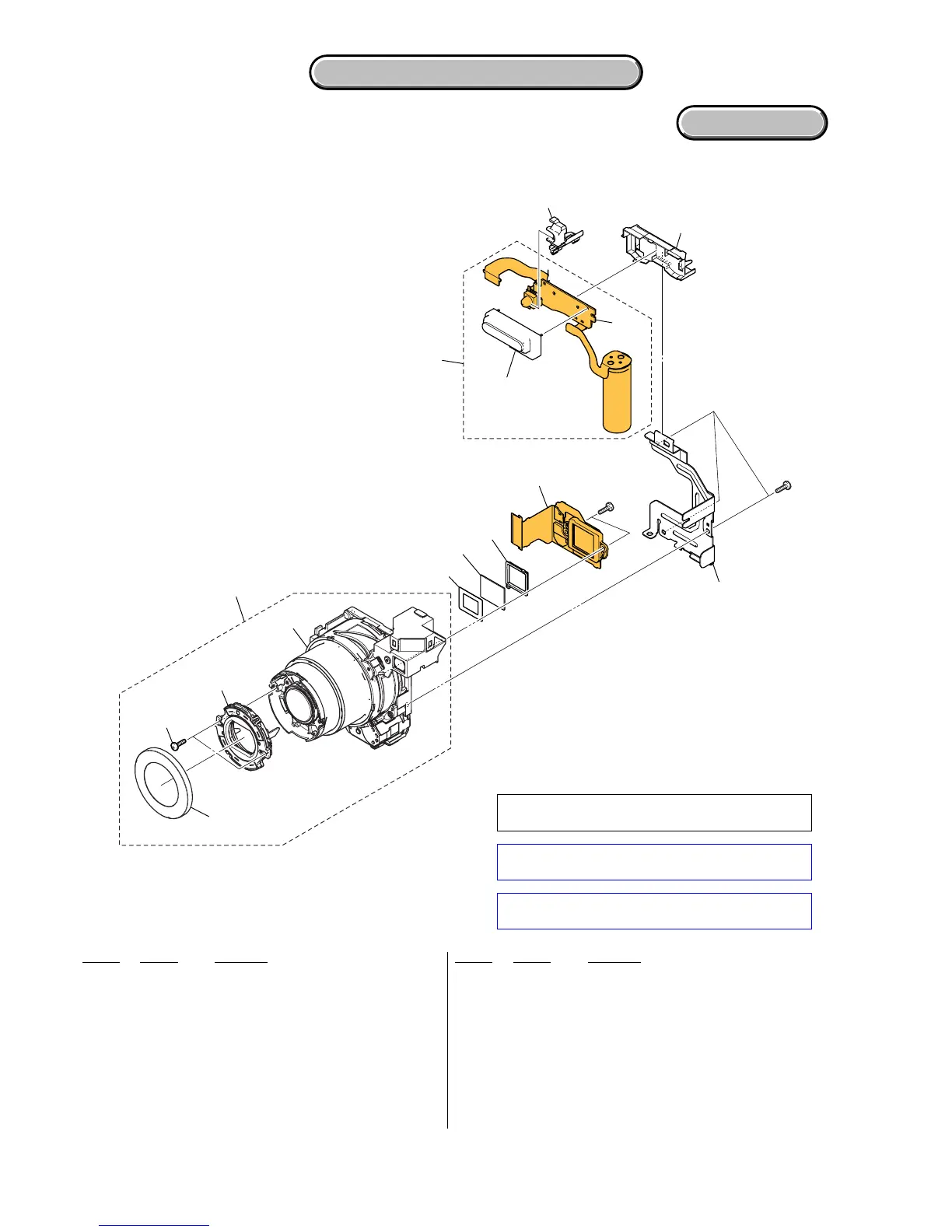

5-1-5. LENS BLOCK SECTION
Ref. No. Part No. Description
Ref. No. Part No. Description
201 A-1060-696-A LENS BLOCK ASSY 890 (J1) (Note 3)
202 3-091-427-01 RING (A), ORNAMENTAL (Note 3)
203 X-3954-476-1 BARRIER ASSY (Note 3)
204 3-086-156-31 TAPPING SCREW (P2) (Note 3)
205 2-021-317-01 MASK, LPF
206 1-788-391-11 OPTICAL FILTER BLOCK (OFB-02-27)
207 2-021-318-01 SEALGOM 890
208 A-1178-700-A CCD BLOCK ASSY (including IC001 (CCD
IMAGER) and CD-628 flexible complete board)
(Note 1, 2)
0 209 A-1178-823-A ST-146 FLEXIBLE BOARD, COMPLETE
0 210 1-479-690-11 FLASH UNIT
* 211 2-676-271-01 HOLDER, AF
* 212 2-676-270-01 HOLDER, ST
* 213 X-2109-138-1 FRAME ASSY, LENS
#5 3-080-204-01 SCREW, TAPPING, P2 (Black)
#28 3-348-998-61 SCREW (M1.4X4), TAPPING, PAN (Dark Silver)
• Refer to page 5-1 for mark 0.
Note 2: Be sure to read “Precuations for Replacement of
Imager” on page 4-3.
Note 3: Be sure to read “Exchange method of barrier assy”
on page 2-6.
Note 1: CCD block assembly is including CD-628 flexible
complete board.
ns: not supplied
