DSC-W150/W170_L2
HELP
BT holder
Battery terminal board
Notch
Notch
Battery terminal board

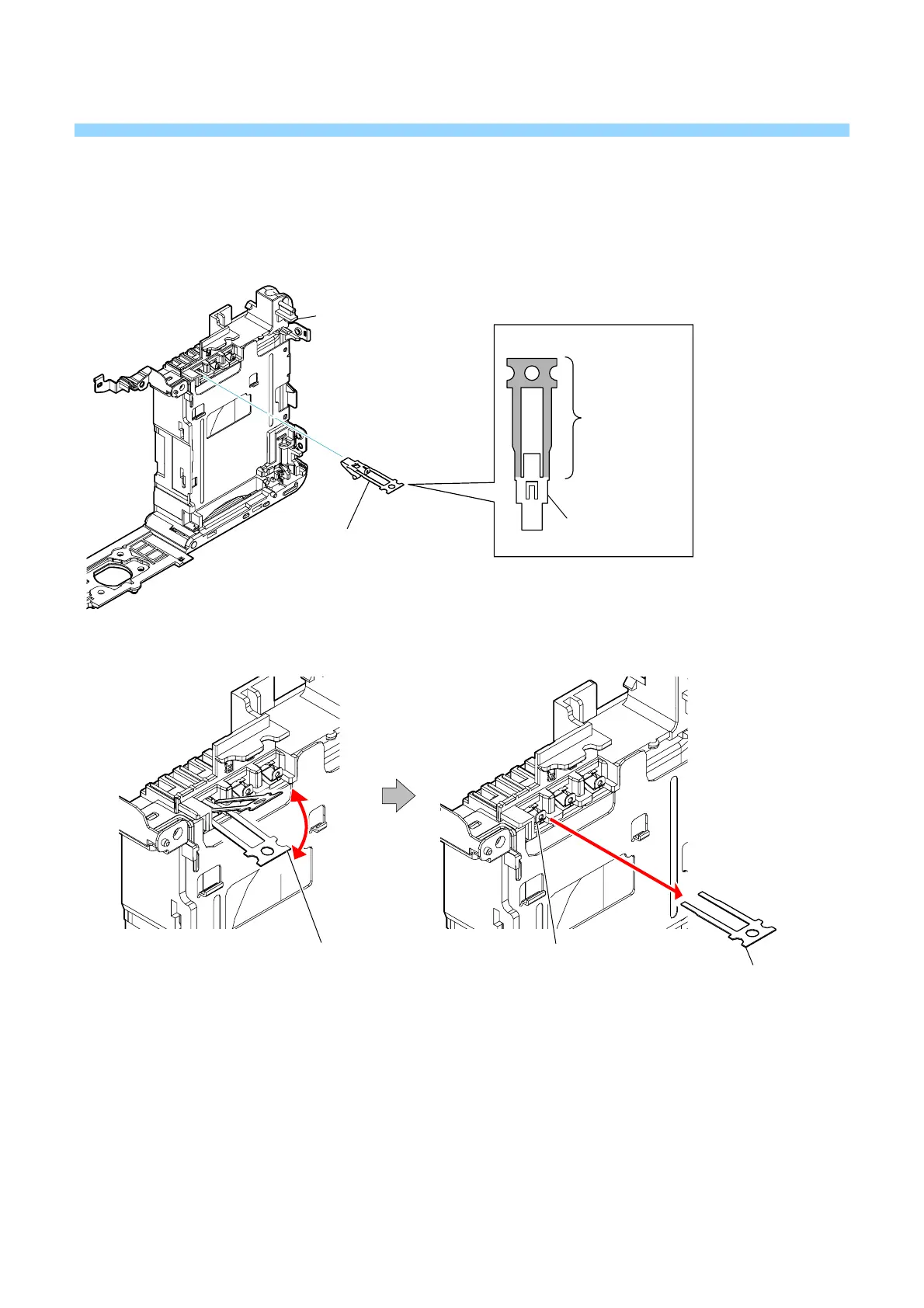

1 Insert the battery terminal board into a slit in the BT holder to install.
*The battery terminal board is attached with the notch for installation.
2 Fold the notch 3 or 4 times repeatedly to break.
HELP 7:
Installation Method of Battery Terminal Board
Notch
Battery terminal
board
