Sony DSC-W150 - Hardware List

5-2
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSC-W150/W170_L2
DISASSEMBLY
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
1 X-2189-939-1 CABINET (FRONT) ASSY (W170: SILVER)
1 X-2189-940-1 CABINET (FRONT) ASSY (W170: BLACK)
1 X-2189-941-1 CABINET (FRONT) ASSY (W170: RED)
1 X-2189-942-1 CABINET (FRONT) ASSY (W170: GOLD)
1 X-2189-943-1 CABINET (FRONT) ASSY (W150: SILVER)
1 X-2189-944-1 CABINET (FRONT) ASSY (W150: BLACK)
1 X-2189-945-1 CABINET (FRONT) ASSY (W150: RED)
1 X-2189-946-1 CABINET (FRONT) ASSY (W150: GOLD)
2 3-300-527-01 CABINET (R), SIDE
3 3-300-528-01 CABINET (L), SIDE
4 X-2189-955-1 CABINET (REAR) ASSY (W170: SILVER)

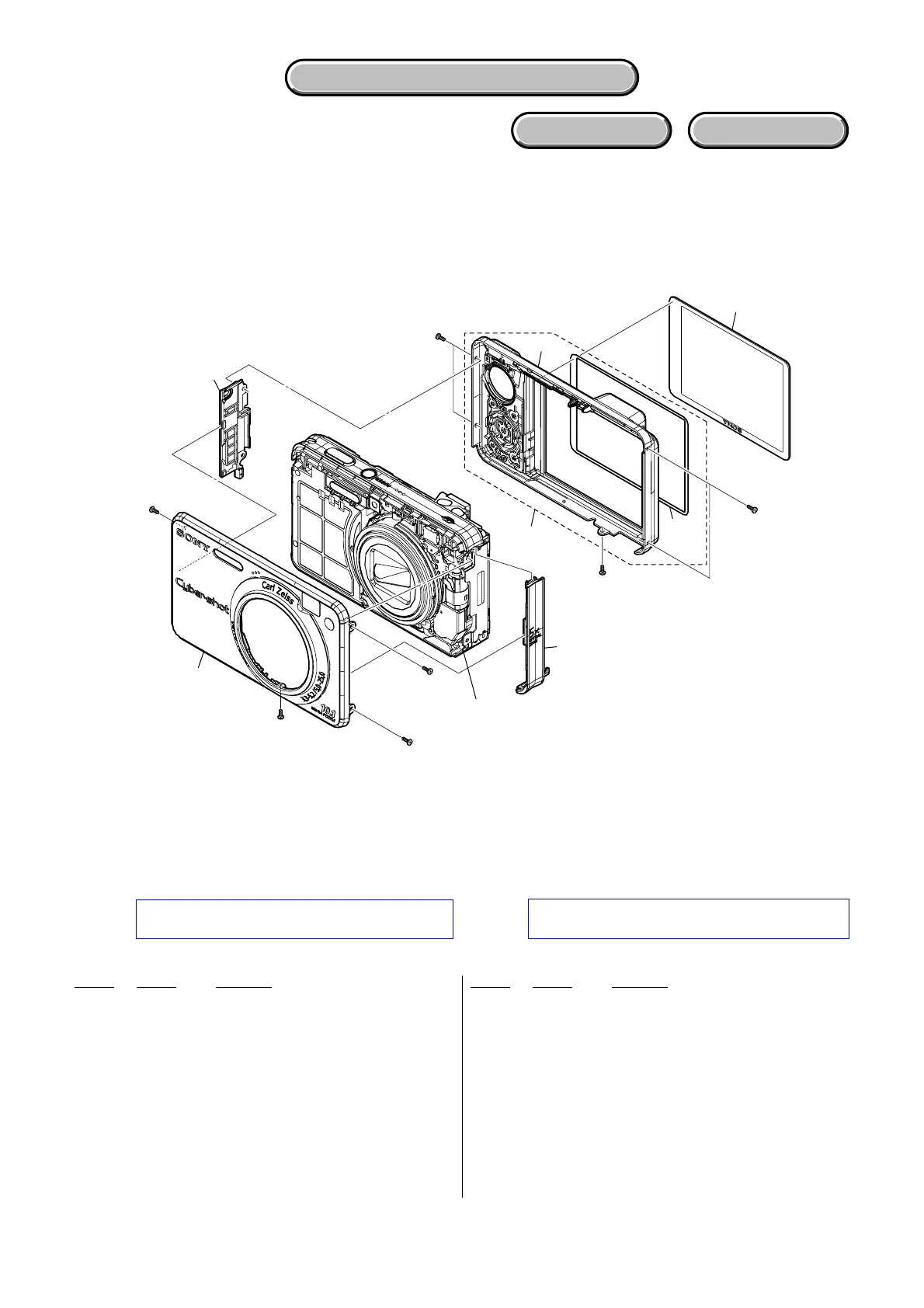

5-1-1. CABINET SECTION
ns: not supplied
5-1. EXPLODED VIEWS
Main Frame Section
(See page 5-3)
#20
#20
#3
#20
#20
#20
#20
ns
1
2
3
4
5
(Note)
6
4 X-2189-956-1 CABINET (REAR) ASSY (W170: BLACK)
4 X-2189-957-1 CABINET (REAR) ASSY (W170: RED)
4 X-2189-958-1 CABINET (REAR) ASSY (W170: GOLD)
4 X-2189-959-1 CABINET (REAR) ASSY (W150: SILVER)
4 X-2189-960-1 CABINET (REAR) ASSY (W150: BLACK)
4 X-2189-961-1 CABINET (REAR) ASSY (W150: RED)
4 X-2189-962-1 CABINET (REAR) ASSY (W150: GOLD)
5 3-300-548-01 SHEET KIT, WINDOW ADHESIVE (Note)
6 3-300-536-01 WINDOW, LCD
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#20 2-635-591-31 SCREW (M1.4), NEW TRUSTAR P2 (Silver)
Note: Refer to “HELP 1: Window Adhesive Sheet Kit”
when replace the LCD window adhesive sheet kit.
Note: LCD窓接着紙K I T を交換する際は，「HELP1:
WindowAdhesiveSheetKit」を参照してくださ
