DSC-W150/W170_L2
HELP
HELP

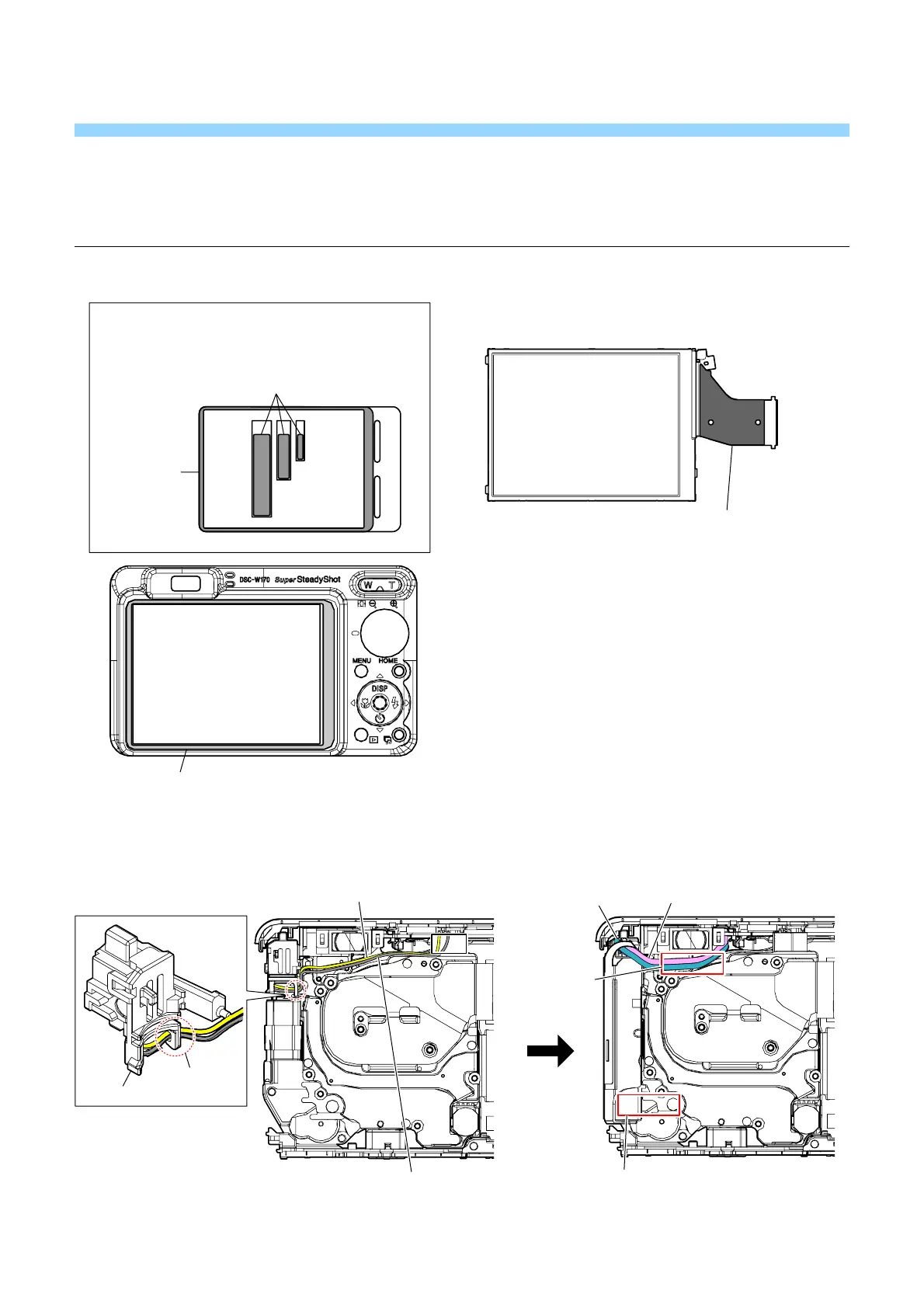

Sheet attachment positions and procedures of processing the flexible boards/harnesses are shown.
HELP 1:
Window Adhesive Sheet Kit
HELP 3:
Harness (HN-061/062/063/064)/Tape (N2/LS)
HELP 2:
LCD Radiation Sheet
LCD Radiation Sheet
Window Adhesive Sheet Kit must use only the
part of LCD window edge.
Please discard other parts.
Window Adhesive Sheet Kit
Paste part
Discard parts
AF Retainer
Claw
Harness (HN-064) (Blue)
Tape (N2)
Tape (LS)
Harness (HN-063) (Pink)
Harness (HN-062) (Gray)
Harness (HN-061) (Yellow)
