2-9E
DSC-W150/W170_L2

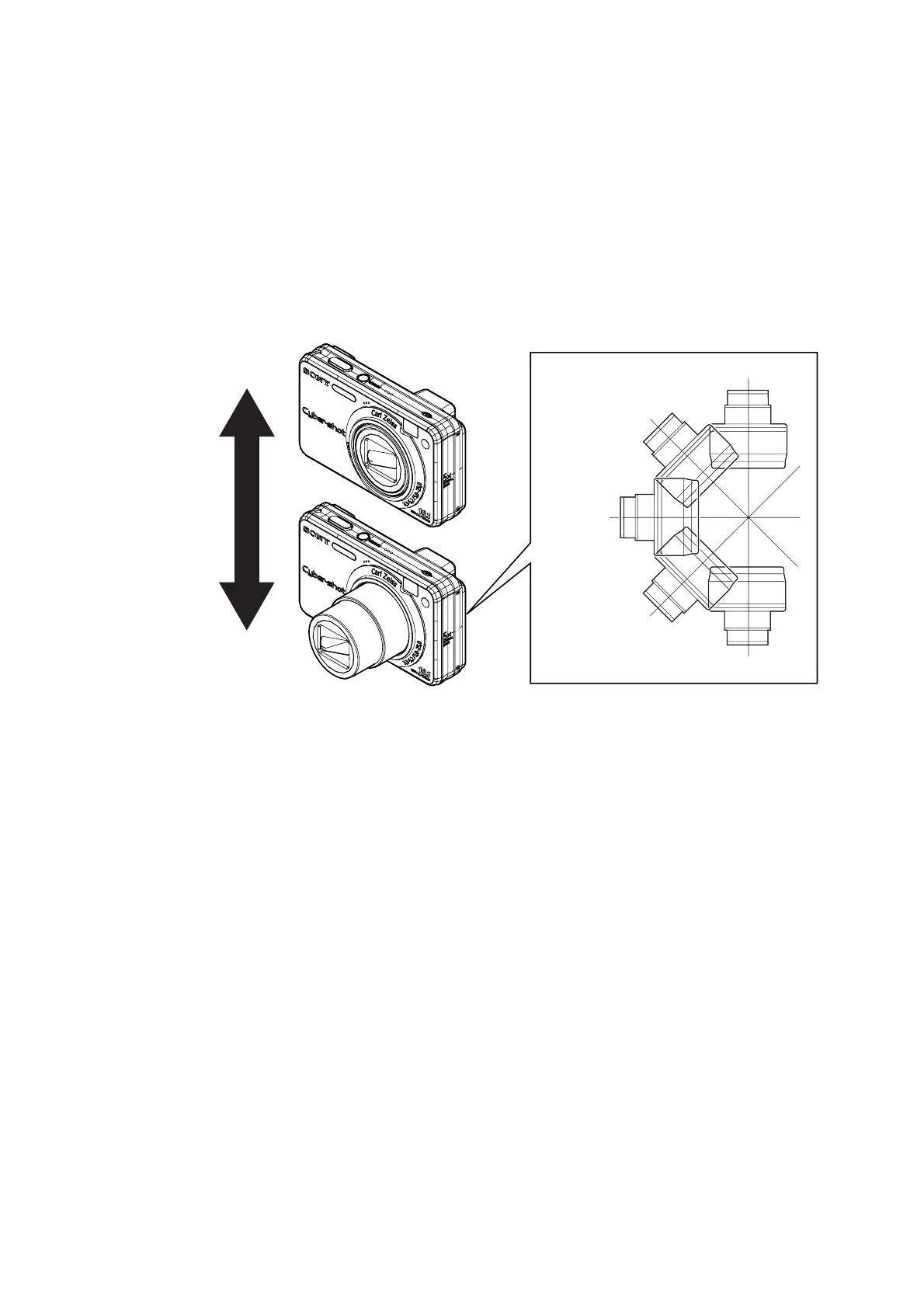

Lens at TELE end
Lens at WIDE end
Upward
Downward
Horizontal
Upper oblique 45˚
Lower oblique 45˚
Full stroke check
2-4-2. Final Inspection (No Fault In Actual Motion/Actual Screen)
1 Zoom motion (Check five postures: horizontal, upward/downward, upper/lower oblique 45º)
No abnormal sound or motion must be found over full stroke between TELE end and WIDE end.
2 Zoom image
No abnormality such as a skipped image or wavy image must be found in the image through LCD or finder over full stroke between
TELE end and WIDE end.
3 Barrier (Check five postures: horizontal, upward/downward, upper/lower oblique 45º)
The barrier must be opened and closed fully, free from a sticking in the midway.
No abnormal sound must be heard during the operation.
4 Appearance condition
Scratches or stains must not be noticeable, except that the customer permits them.
5 Foreign matters on the lens
The lens condition must not be worse than that when the camera was received from the customer.
