Sony DSC-W150 - Cabinet (Upper) Section

5-6
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSC-W150/W170_L2
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
0 201 A-1528-432-A ST-180 BOARD, COMPLETE
0*202 1-480-482-11 FLASH UNIT
203 X-2189-937-1 RELEASE ASSY
204 1-965-683-11 HARNESS (HN-062) (Gray)
205 1-965-682-11 HARNESS (HN-061) (Yellow)
206 1-965-733-11 HARNESS (HN-064) (Blue) (Note)
207 1-965-732-11 HARNESS (HN-063) (Pink) (Note)
208 3-300-531-01 HOLDER, CAPACITOR
209 3-300-535-01 SHEET, CAPACITOR
210 3-300-533-01 RETAINER, AF
211 A-1528-435-A AF-113 BOARD, COMPLETE
212 3-300-530-01 HOLDER, AF
213 3-300-643-01 SHEET, SP INSULATING
214 3-300-642-01 SHEET, ST INSULATING
0 BT900 1-756-710-12 LITHIUM RECHARGEABLE BATTERY
0 C901 1-114-592-11 ELECT 87uF 315V
MIC901 1-542-721-21 MICROPHONE BLOCK
SP901 1-826-403-61 LOUDSPEAKER (1.0CM)
#5 3-080-204-01 SCREW, TAPPING, P2 (Black)

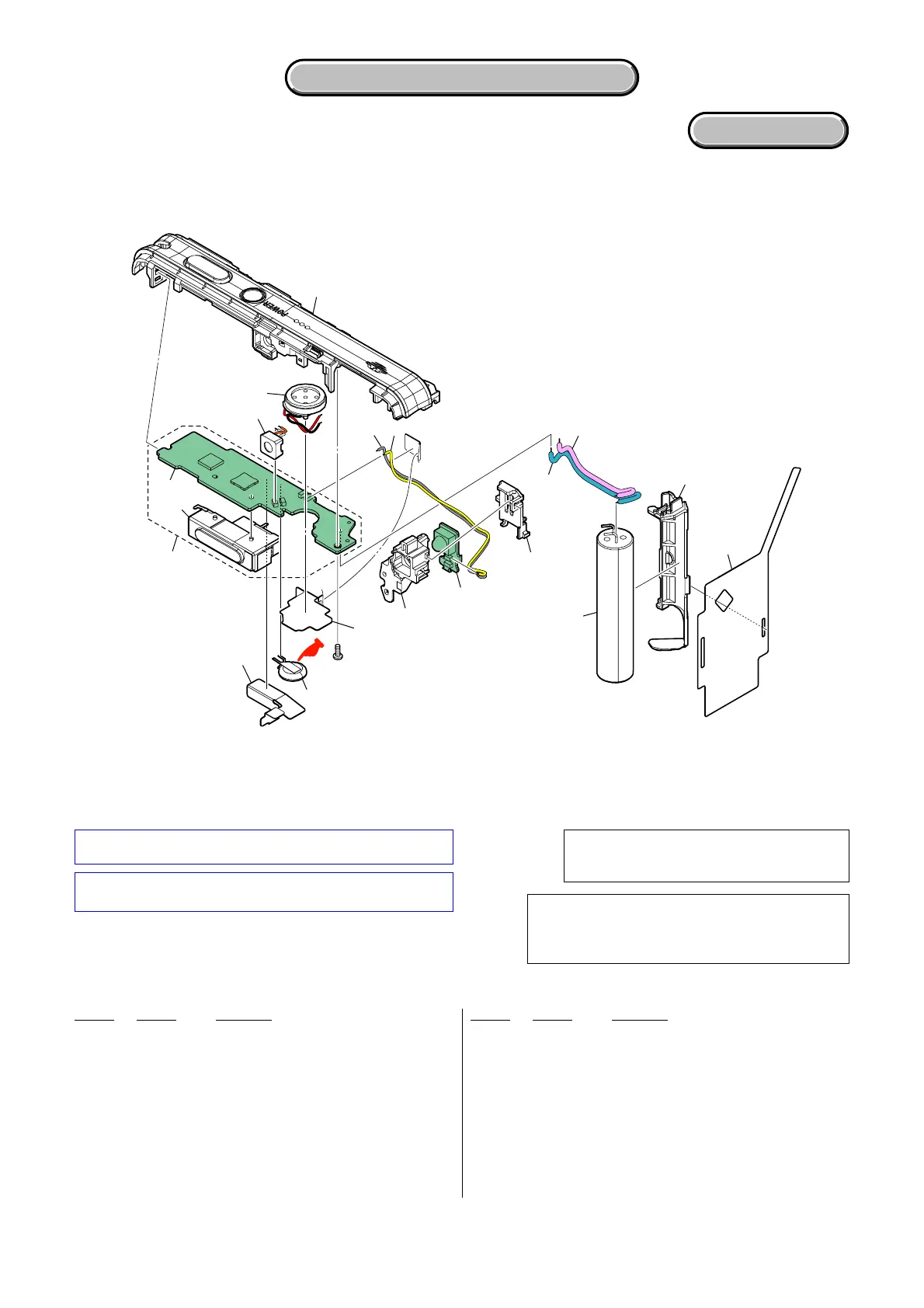

5-1-5. CABINET (UPPER) SECTION
ns: not supplied
! : BT900 (LITHIUM RECHARGEABLE BATTERY)
Board on the mount position.
(See page 4-23)
SP901
MIC901
BT900
ns
C901
#5
206
(Note)
207
(Note)
208
209
210
204
201
202
203
205
211
212
213
214
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
注意
電池の交換は，正しく行わないと破裂する恐れがあり
ます。電池を交換する場合には必ず同じ型名の電池
又は同等品と交換してください。
Note: Refer to “HELP 4: Harness (HN-063/064)/Capacitor Sheet”
when replace harness (HN-063/064).
Note: ハーネス（HN-063/064）を交換する際は，「HELP4:Har-
ness(HN-063/064)/CapacitorSheet」を参照してください。
• Refer to page 5-1 for mark 0.
