5-5
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSC-W150/W170_L2
DISASSEMBLY
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
151 X-2189-971-1 HOLDER ASSY, BT (SILVER)
151 X-2189-972-1 HOLDER ASSY, BT (BLACK)
151 X-2189-973-1 HOLDER ASSY, BT (RED)
151 X-2189-974-1 HOLDER ASSY, BT (GOLD)
* 152 3-288-271-01 LID, BT (SILVER)
* 152 3-288-271-11 LID, BT (BLACK)
* 152 3-288-271-41 LID, BT (RED)
* 152 3-288-271-51 LID, BT (GOLD)
153 3-300-550-01 LID, DC
0 154 1-965-766-11 HARNESS (HN-067) (Red)
0 155 1-965-767-11 HARNESS (HN-068) (White)
0 156 1-965-768-11 HARNESS (HN-069) (Black)
0 157 1-875-250-11 FP-866 FLEXIBLE BOARD
* 158 3-298-230-11 TAPE (N2)
159 3-870-596-01 SHEET, SY RADIATION
160 A-1528-438-A SY-194 BOARD, COMPLETE (SERVICE) (W170)
160 A-1528-440-A SY-194 BOARD, COMPLETE (SERVICE) (W150)
161 A-1528-433-A MC-191 FLEXIBLE BOARD, COMPLETE
162 3-300-534-01 PLATE, MULTI FIXED
0 BT901 1-780-456-21 TERMINAL BOARD, BATTERY (Note)
0 BT902 1-780-456-21 TERMINAL BOARD, BATTERY (Note)
0 BT903 1-780-456-21 TERMINAL BOARD, BATTERY (Note)
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#20 2-635-591-31 SCREW (M1.4), NEW TRUSTAR P2 (Silver)

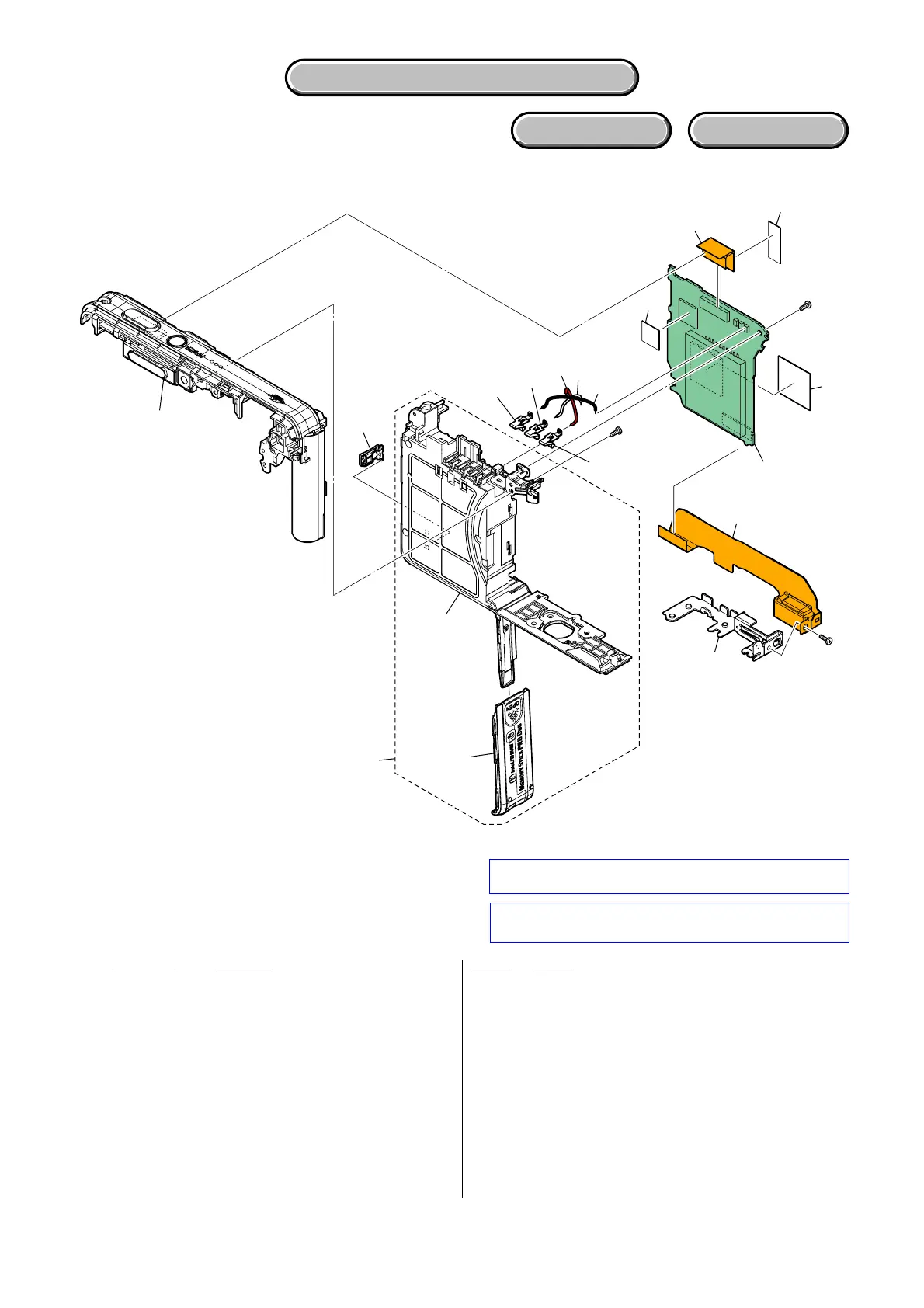

5-1-4. BT HOLDER SECTION
ns: not supplied
#20
#20
BT901
(Note)
BT902
(Note)
BT903
(Note)
#3
ns
Cabinet (Upper) Section
(See page 5-6)
151
153
152
154
157
158
155
156
159
ns
161
160
162
Note: Refer to “HELP 7: Installation method of battery terminal
board” when changing the battery terminal board.
Note: バッテリ端子板を交換する際は，「HELP7:Installation
methodofbatteryterminalboard」を参照してください。
• Refer to page 5-1 for mark 0.
