Sony DSX-A200UI - Wiring Connections; Main Unit Wiring Diagram; Wiring Connection Notes

20GB

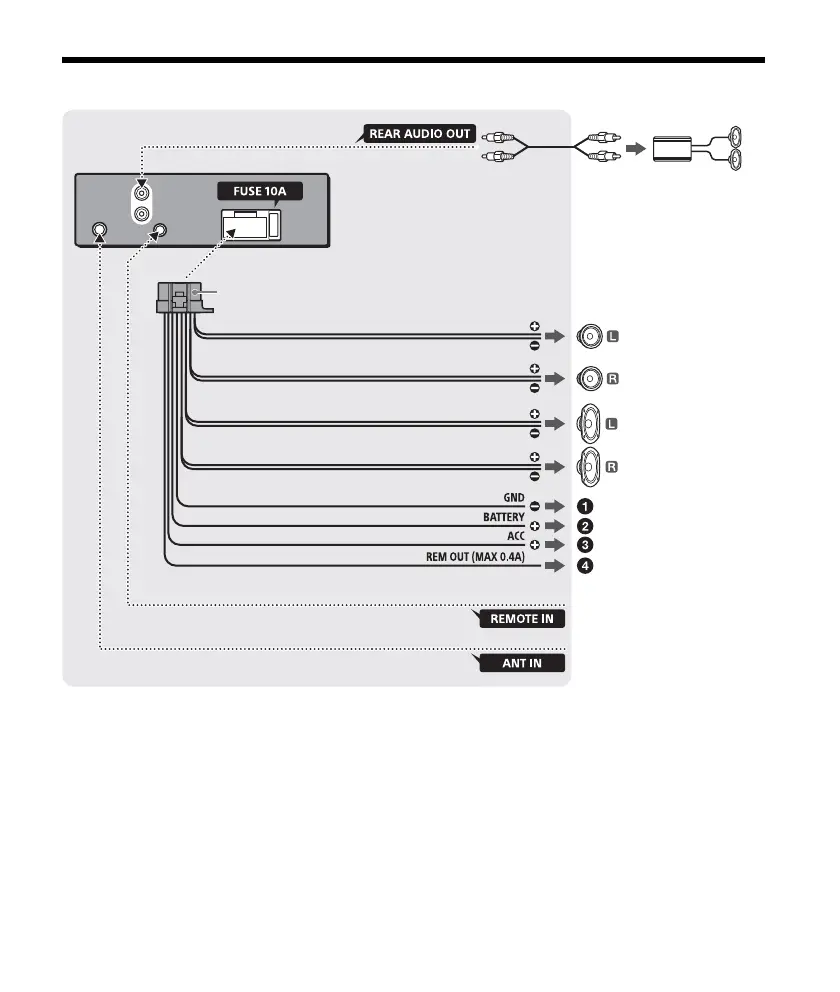

Connection
*1 Not supplied
*2 Speaker impedance: 4 – 8 Ω × 4
*3 RCA pin cord (not supplied)
*4 Depending on the type of car, use an adaptor for a
wired remote control (not supplied).

White
White/black striped
Gray
Black
Ye l l o w
Red
Blue/white striped
Front speaker*
1
*
2
Rear speaker*
1
*
2
Gray/black striped
Green
Green/black striped
Purple
Purple/black striped
*
3
Power amplifier*
1
For details, see “Making
connections” (page 21).
from a car antenna (aerial)
from a wired remote control
(not supplied)*
4
