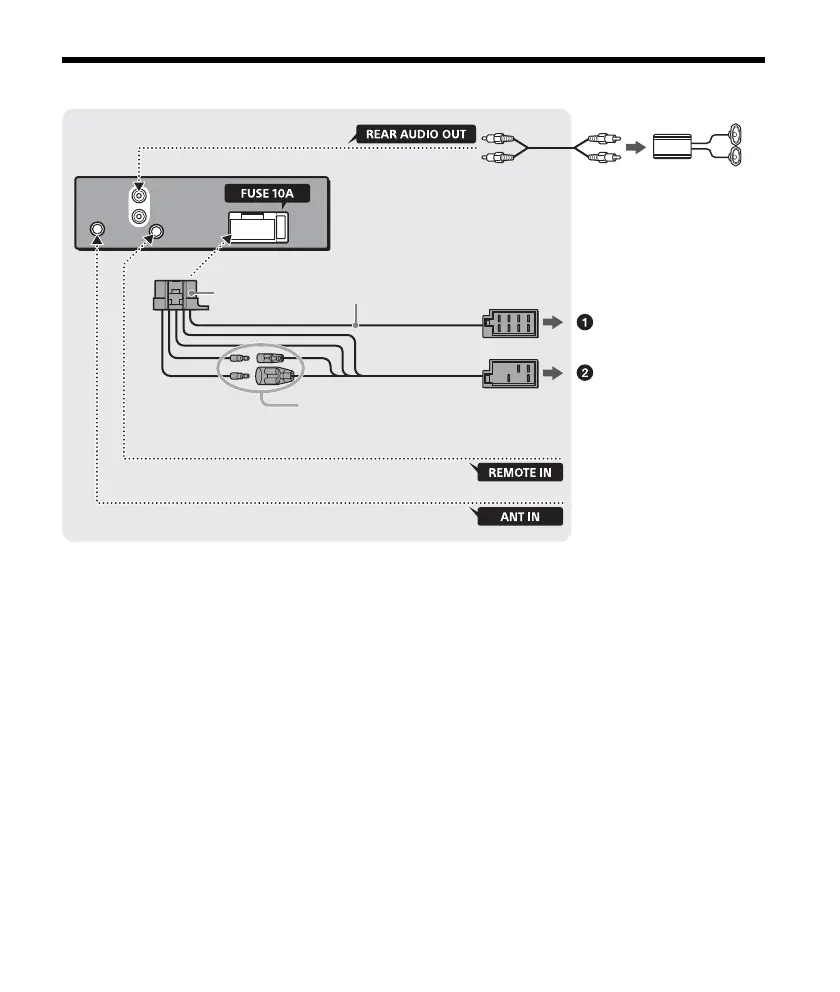

Sony DSX-A202UI - Electrical Connections Diagram

18GB
Connection
*1 Not supplied
*2 Speaker impedance: 4 – 8  × 4
*3 RCA pin cord (not supplied)
*4 Depending on the type of car, use an adaptor for a
wired remote control (not supplied).
*5 Depending on the type of car, use an adaptor (not
supplied) if the antenna connector does not fit.
from a wired remote control
(not supplied)*
4
See “Power connection diagram” (page 20)
for details.
from a car antenna (aerial)*
5
*
3
Power amplifier*
1
For details, see “Making
connections” (page 19).

*
2
